PCB PLUG-IN PL ABLE TERMINAL BlOCKS 15EDGKD 2.5mm
Product Description
NAME:PCB Spring Terminal Block
MODEL:KF2EDGKD-2.5
Electrical:
Rated voltage: 125V
Rated current: 4A
Wire range: 28-20AWG
Withstanding voltage: AC2000V/1Min
Ambient temperature: -40°C~+105°C
Strip length: 10mm
Pitch：5.08mm(.200")
Poles：1P-XXP
Housing：PA66+5%GF.,UL94V-0
Pin header：Brass,Tin plated
Wire guard：Stainless steel
Product Image

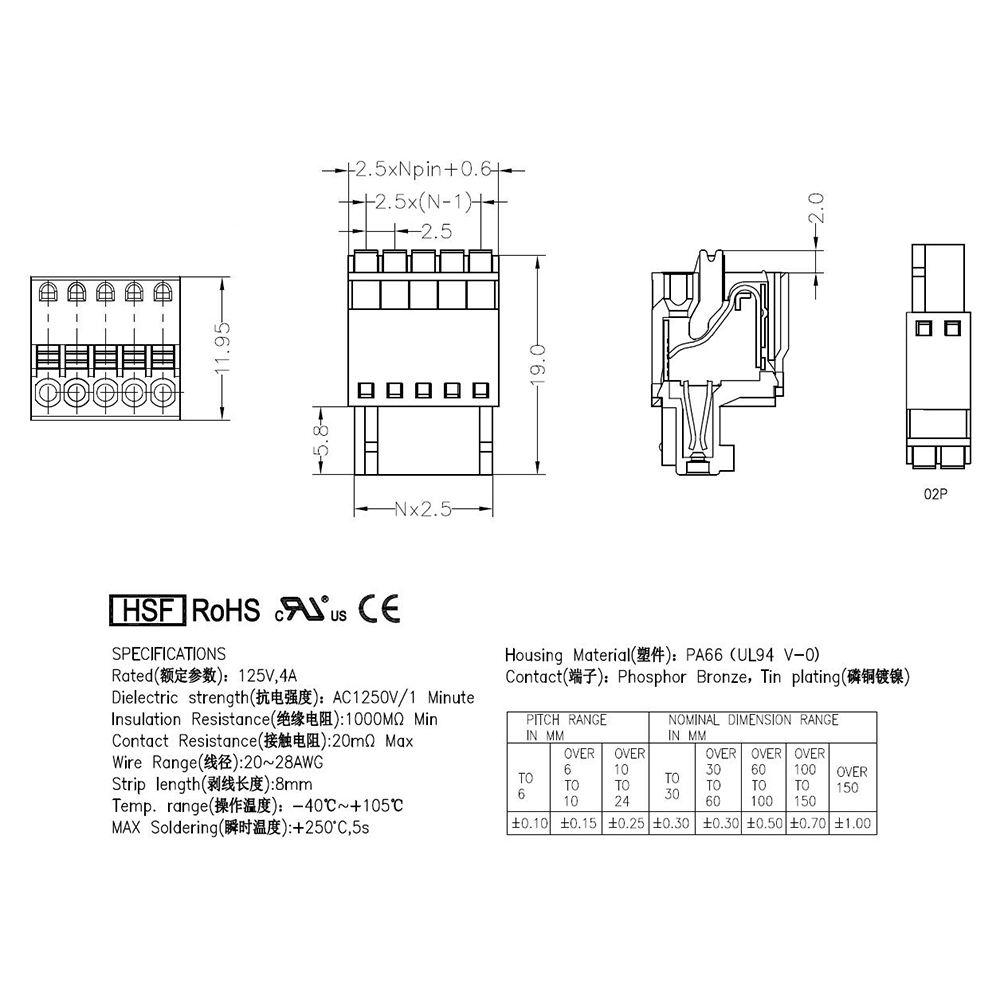

Img 1

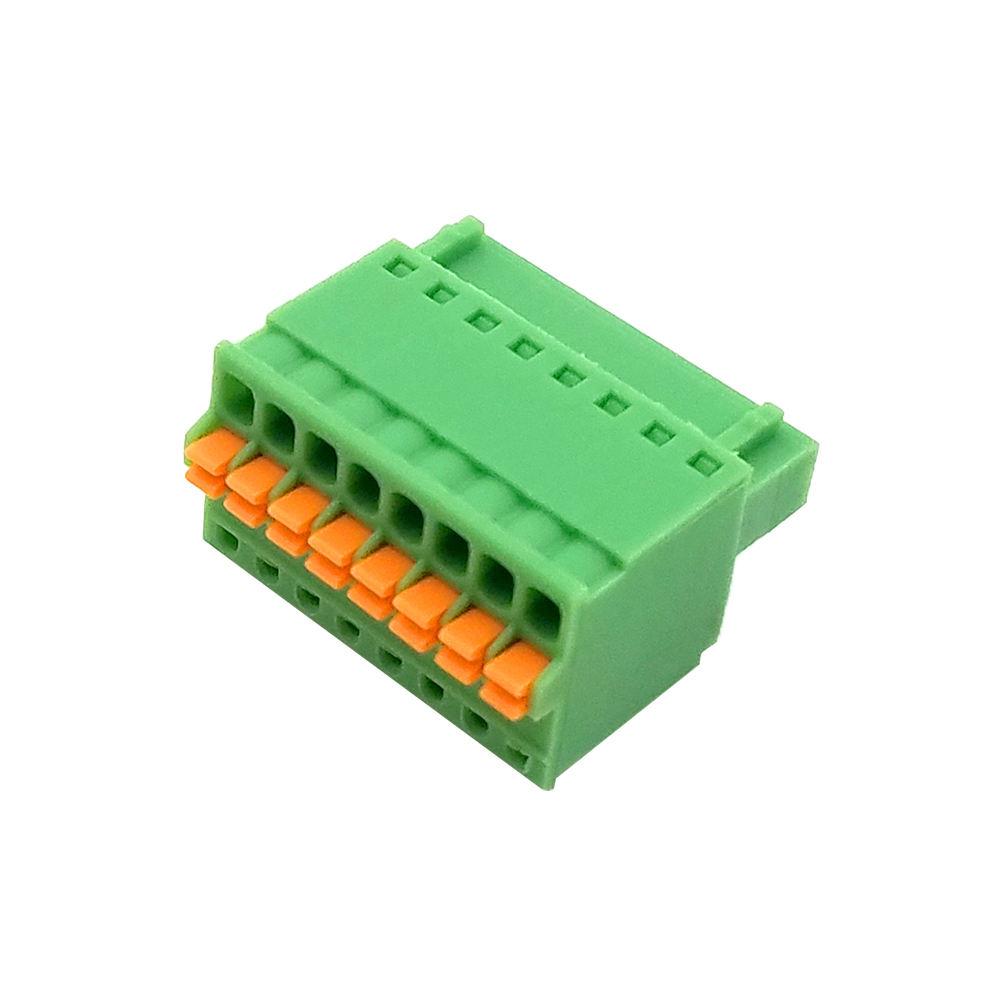

Img 2
