| Model: | LC-TH500R |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | Heat transfer , Heat press machine , FOIL STAMPING |
| Price: |
US $21000
/ UNIT
|
| Min. Order: | 1 UNIT |
| Last Online:18 Nov, 2024 |

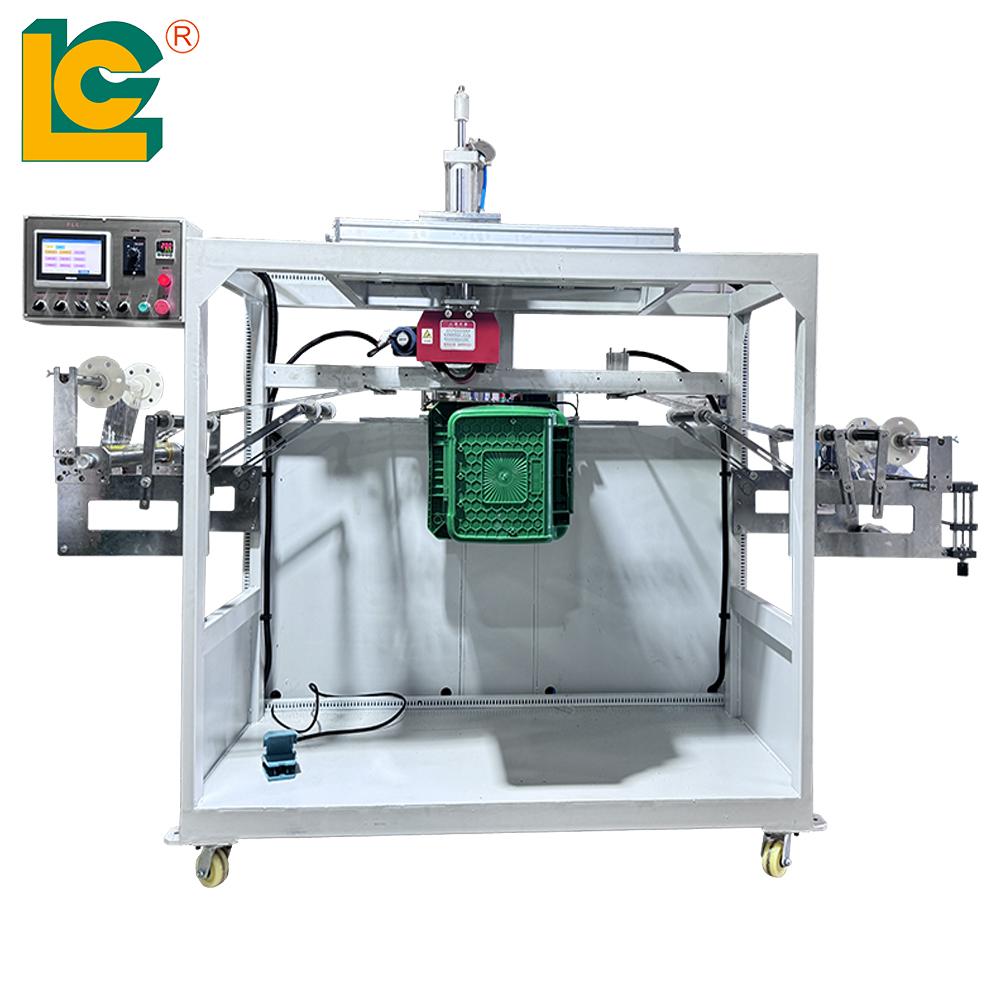

Description:

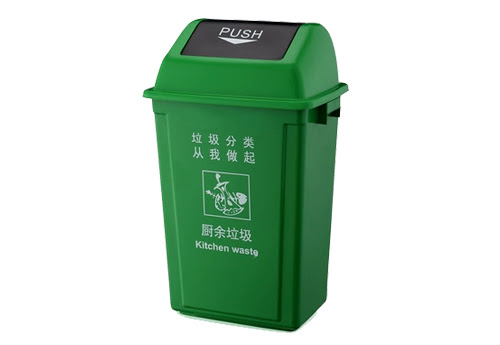

Heat transfer machine with beautiful elegant appearance, it is mainly used for Various square trash cans plastic bin of different sizes， Special for plastic like ABS, PP, PE, PS, AS, PVC, acrylic etc. There are shapes: plane, surface
Features:
1. Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.
2. Stamping pressure, temperature, hot pressing time is adjustable.
3. Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation..
4. Automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning
5. Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.
6. Equipped with emergency stop safety devices to protect the safety of the operator.
Parameters:
1. Stamping area 500* 500MM
2. Push-plate stroke 600mm, 1.5KW servo motor
3. Hot head stroke 100mm, 750W servo motor
4. Printing Speed: 60pcs/hour
5. Perm size 380mm, center span 600mm
6. Perm temperature 0- 399°C
7. Power supply 220v/50HZ
8. Pressure 1 ton
9. Machine size 2000* 1800 2100mm
10. Weight 1200kg

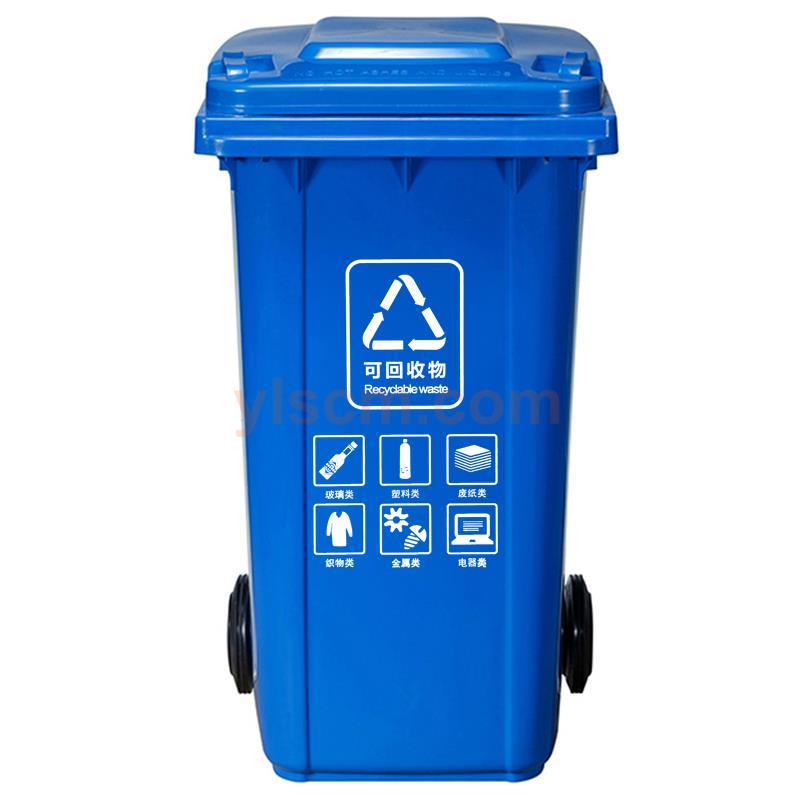

11. Plastic gabage can fixture: 60L 80L 100L 120L 660L 1100L
