Silicon Carbide Heater Advantages

1. Withstands as high as 1500°C (surface temperature).

2. Various shapes, like Rod shape, U shape, W shape, Single Spiral & Double Spiral shape, are available to meet your demand.

3. Large size range.

4. Generates high heat output per unit surface area.

Silicon Carbide Heater Application

It can be widely used in such applications as sintering and heating elements of ceramics, magnet, glass, metallurgy, refractory, etc.

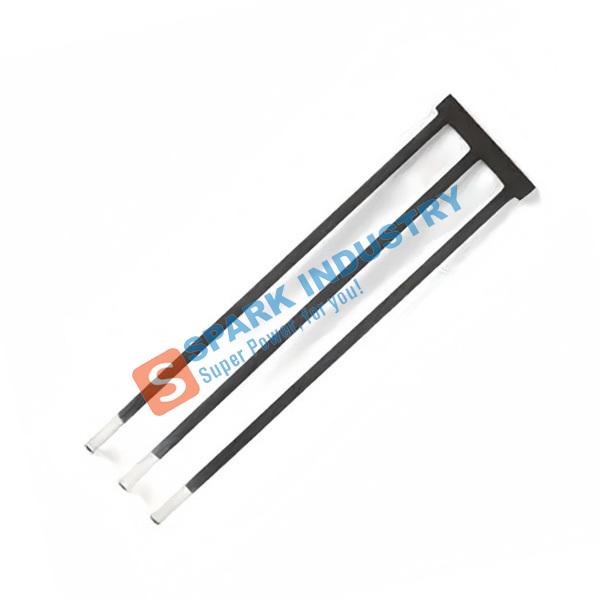

3-phase elements are available in 2 different types: SGC (Dumbbell), SGD(Standard).

These elements are self-bonded silicon carbide formed by re-crystallization of silicon carbide at high temperature. It consists of three high-purity silicon carbide rods connected at one end by a silicon carbide crossbar. SGC elements are designed for vertical installation in standard float glass bathes and SGD elements for horizontal installation. They can be connected directly on three-phase power supply and is a one-side terminal type which permits drawing out the terminals from the roof of the furnace.

To Order W Type Silicon Carbide Heating Rod, please provide the following information:
