Rubber Seal Trimming Machine

This Vacuum Rubber Seals Trimming Machine (Kauçuk Parçalar Kesme Makinesi) is used to trim rubber oil seal,rubber seal cup or various round rubber parts,etc,it is adaptable for kinds of rubber or silicone parts. It's application is very wide,seal diameter ranging from 10-300mm can be trimmed by this, even more bigger size can be customized.

Our vacuum rubber trimming machine features reliable&precise performance, easy adjustment and durable life.

----horizontal type rubber trimming machine

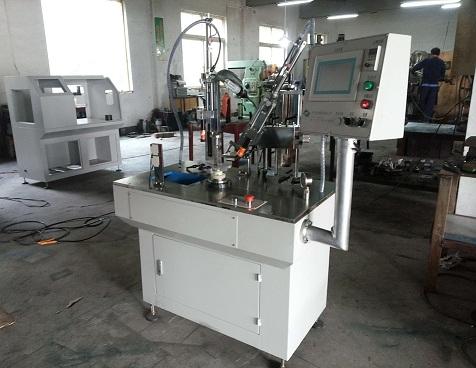

---vertical structure rubber oil seal trimming machine with chuck type fixture

Main technical parameter:
Vacuum≤-0.035Mpa
circular run out of main spindle≤0.01mm
plane run out≤0.02mm
Speed of spindle:    0-3000r/min
trimming degree:-10°～100°
trimming range :10mm-300mm (adjustable)
Blade specification(ThickxWidexLength)：2x4x75mm
Blade material:tungsten steel.
Total power comsumption: 1 KW
Voltage: 220V,single phase.
Weight: 300kg
Dimension:1020mm×700mm×1300mm
