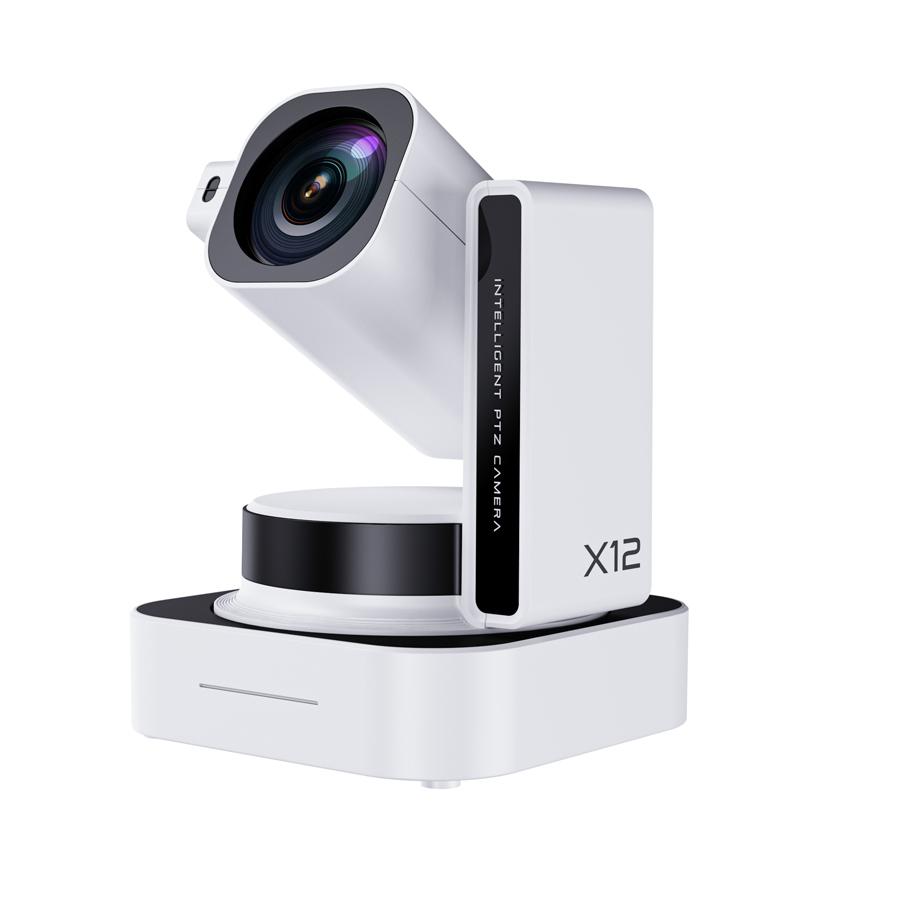

| Model: | PD12 |
|---|---|
| Brand: | Winait |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment |
| Label: | VIDEO CONFERENCE , PHONE CONFERENCE , TV CONFERENCE |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:08 Nov, 2024 |
| Image transmission sensor: | SONY 1/2.8 "CMOS sensor | |
| Effective pixels: | 8.29 million (16:9) | |
| Zoom capability: | 12x optical zoom+TOF laser assisted focusing (optional) | |
| Video output format: | HDMI | 4K UHD（3840x2160@30/25fps），2K QHD(2560*1440P@30/25fps)，1080 FHD（1920*1080P@30fps）720P HD（1280*720P@30fps） |
| USB3.0 | ||
| RTSP（choosable） | ||
| Video encoding format: | H.264、H.265、MJPG、YUV2、NDI（choosable） | |
| Focal length: | f=3.9~49.2mm | |
| Aperture: | F1.6 ~ F9.6 | |
| Horizontal perspective: | 6.48° ～80.82° | |
| Minimum illumination: | 0.5Lux | |
| Horizontal rotation: | 350°（±175°）0.1°/s～80°/s | |
| Vertical rotation: | 180°（±90°）0.1°/s～60°/s | |
| External control: | 433Mhz Remoter、RS-485、UVC、Visca over ip | |
| Output interface: | HDMI、USB3.0(Type A)、RJ45（choosable） | |
| POE power supply: | IEEE 802.3at （Supports RJ45 Ethernet port models (optional)） | |
| Working temperature: | -10℃- 50℃ / 20%～80% | |
| Installation method: | Flat placement, lifting, wall mounting | |
| Voltage/Current: | DC12 V/ 2A、Built in battery power supply (optional) | |
| Power: | 12 W | |
| Product quality: | 1250g | |
| Packaging quality: | 3000g | |
| Product size: | 150 X 150 X 210mm | |
| packing | 258 X 258 X 230mm | |
| Random accessories | DC 12VAdapter, remote control, USB 3.0 data cable, wall mount bracket | |
