Overhead Power Line Early Warning Devices for Crane
Product Description
| Electrical wiring grade |
10KV~500KV |
| Rated frequency |
50Hz |
| Detection mode |
High-voltage electromagnetism induction |
| Alarm Mode |
Driving room voice alarm |
| Communication Mode |
2.4G |
| 2.4G Communication distance |
200M |
| Working Voltage |
DC12V(Vehicle power or lithium battery) |
| Host Disspation |
0.6~0.8W |
| Working Temperature |
-40°C~80°C |
| Ambient Humidity |
0~95°C(Non-condensing) |
| Service Life |
5~8 Years |
| Ingress Protection |
IP67 |
| Weight |
2.5KGS |
| |
|
| 1. Front-end detection unit sets a voltage grade and distance,when it detects a high-voltage signal,which will pass back the signal to the early warning host. |
| 2.2.4G wireless communication mode,barrier-free distance≥200M |
| 3.Wide range of use,support 10KV,35KV,110KV,220KV or above voltage grade. |
| 4.Host alarms after receiving the signal,and reminds the operation person don't close to the dangerous high voltage by making a voice. |
| 5.Easy Installation.Device could be absorbed on crane by magnets or be fixed by iron wires. |
| 6.Could be used on different vehicles repeatly. |

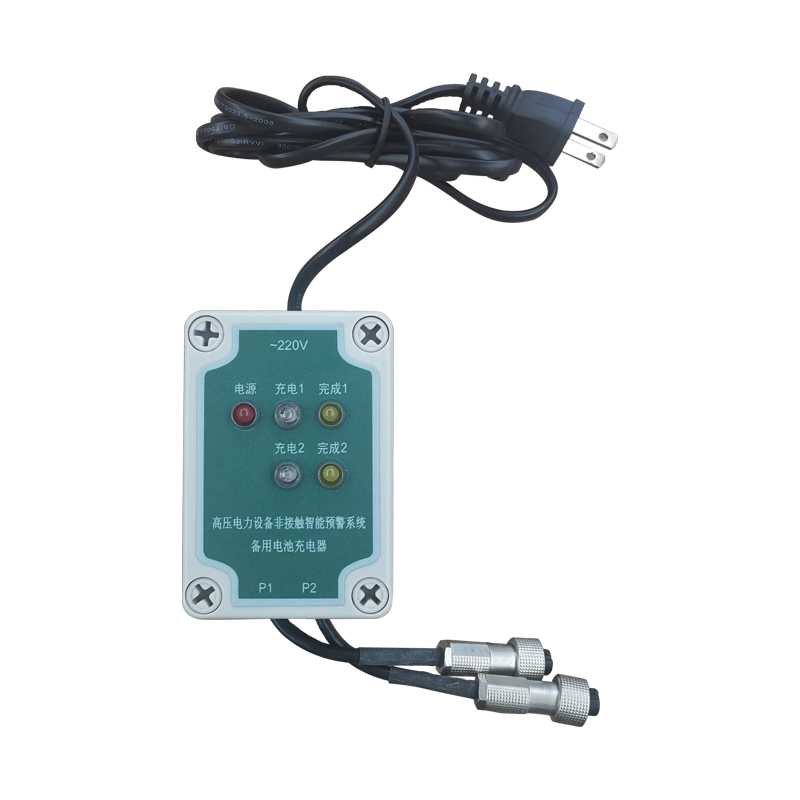

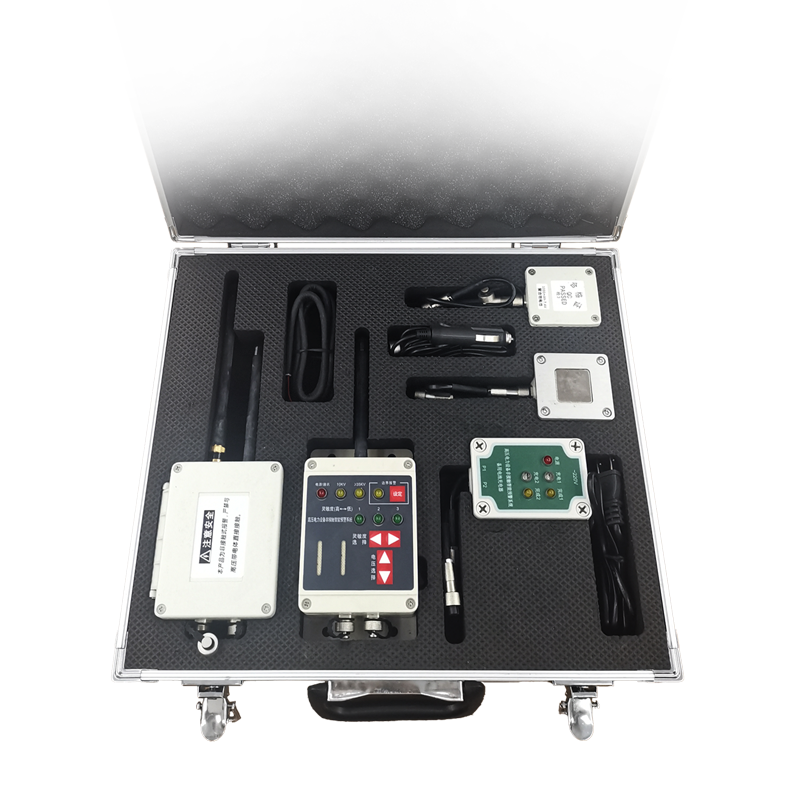

Product Image
