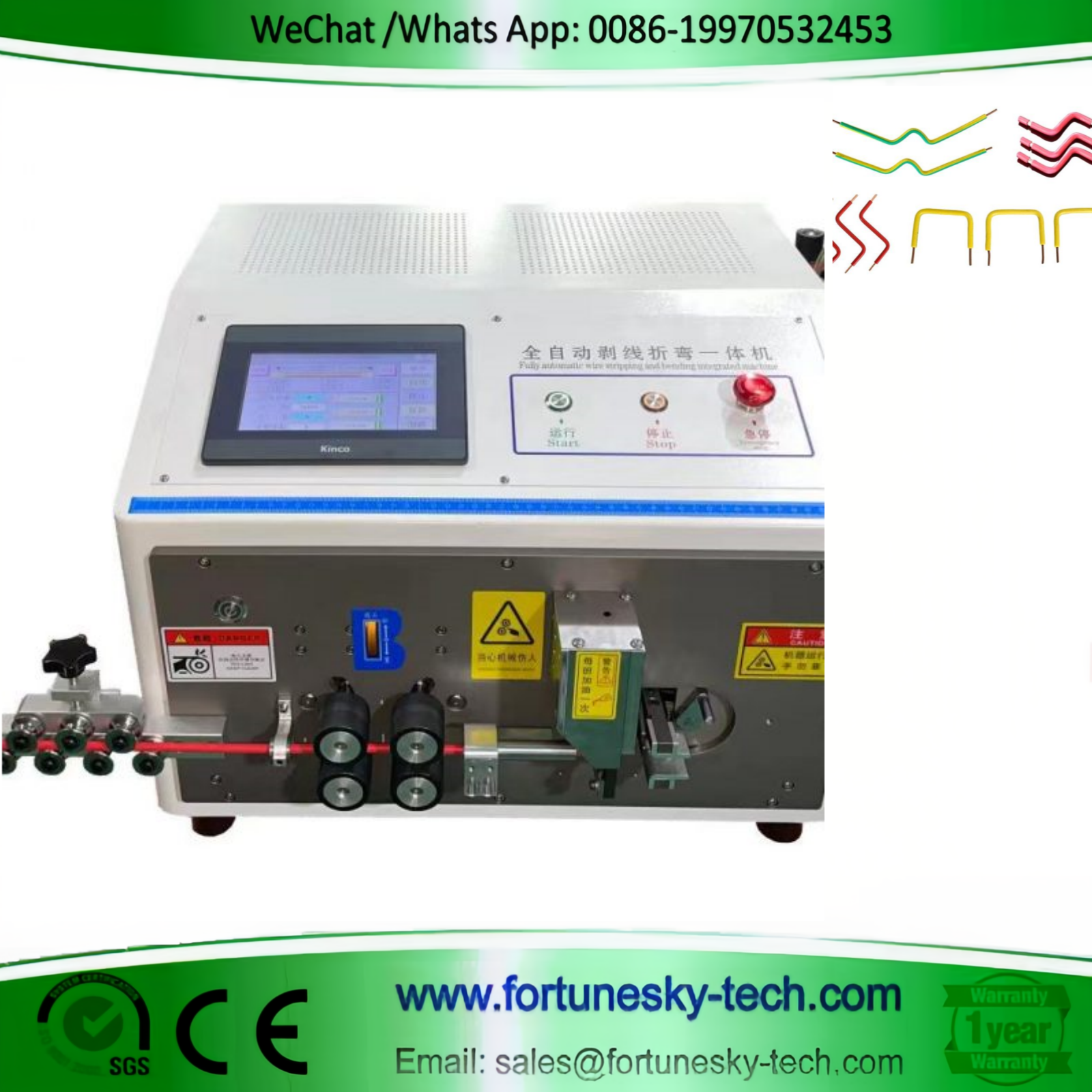

Introducing the Cutting-Edge JT-ZWJ16 Cable Processing Machine

This automatic cable angle bender is a powerhouse for cable processing, featuring the latest technology for efficiency and user-friendliness. Here's a breakdown of its key features:

Intelligent Control: The 32-bit control system with a user-friendly touchscreen (available in Chinese and English) makes operation a breeze. Store up to 99 sets of settings for quick retrieval and repeat jobs with ease.
Multi-function Capability: This machine is perfect for various applications, including new energy lines, power distribution boxes, and working with BV.BVR and PVC cables. It performs cutting, stripping, and bending with precision.
Flexible Bending: The two-way bending function allows for precise bends from 30 to 90 degrees, both clockwise and counter-clockwise. It can even perform positive and negative bends simultaneously on the same line.
Detailed Specifications:
Model Number: JT-ZWJ16
Dimensions: 530mm x 370mm x 420mm
Weight: 45kg
Display: Touch Screen
Power Supply: AC175V-250V, 50/60Hz
Power Consumption: 130W-200W
Cutting Length: 0.1mm - 99999.9mm
Stripping Length (Head Stripping): 0.1mm - 100mm
Number of Bends: 13
Bending Length (Last Bend): 30mm
Bending Direction: Clockwise, Counter-clockwise (Adjustable)
Bending Angles: 30°, 45°, 60°, 90°
Minimum Bending Distance: 30mm
Cutting Core Diameter: 0.1mm - 16mm
Cutting Tolerance: 0.002 x L mm (L = Cutting Length)
Catheter Diameter Range: 1.5mm - 10mm
Tool Material: Imported High-Speed Steel
Drive Mode: Four-Wheel Drive
Bending Speed: 400-1000 strips per hour
