| Model: | tm-D5070-CHIP |
|---|---|
| Brand: | tamprinter |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | Chip Printing machin , Chip screen printer , Chip screen printers |
| Price: |
US $6000
/ set
|
| Min. Order: | 1 set |
| Last Online:12 Jan, 2025 |
why Custom Precision Two-Way Screen Printer Printing Chip in Black ink L-R 50CM choose TM-5070D ?
Is it possible to drive a smaller TM-3050D screen printer with a servo motor?

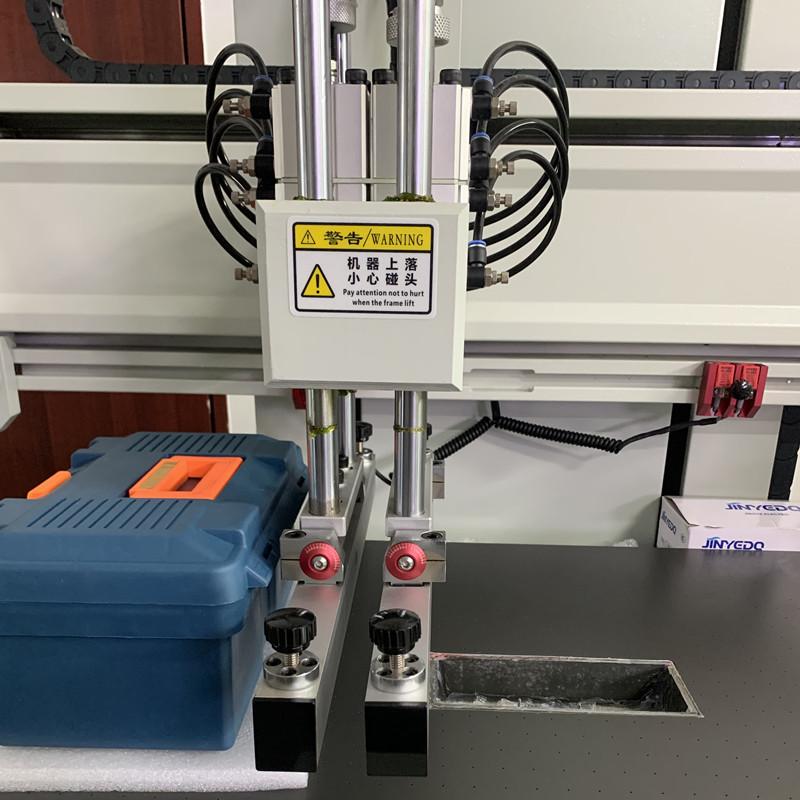

Why choose 2 scrapers and no ink return knife?
What is the technical secret?
|
Model No. |
TM-3050D |
TM-5070D |
TM-6090D |
TM-70100D |
|
single-chip control |
X/Z Common motor |
X/Z Common motor |
X/Z Common motor |
X/Z Common motor |
|
Print area |
300X500mm |
500X700mm |
600X900mm |
700X1000mm |
|
Table size |
400X600mm |
600X800mm |
700X1000mm |
800X1100mm |
|
Max frame |
550X750mm |
600X1000mm |
800X1200mm |
900X1350mm |
|
Printing thickness |
0~40mm |
0~ 50mm |
0~ 50mm |
0~ 50mm |
|
Overlay accuracy |
0.01mm |
0.015mm |
0.02mm |
0.02mm |
|
Platform precision(mm) |
About +/-0.04 |
About +/-0.06 |
About +/-0.075 |
About +/-0.075 |
|
Printing pressure |
4-8kgf/cm2 |
4-8kgf/cm2 |
4-8kgf/cm2 |
4-8kgf/cm2 |
|
Air pressure |
0.5~0.6(Mpa) |
0.5~0.6(Mpa) |
0.5~0.6(Mpa) |
0.5~0.6(Mpa) |
|
Air consumption |
35L/min |
35L/min |
35L/min |
35L/min |
|
Printing speed |
960pcs/h |
1000pcs/h |
900pcs/h |
900pcs/h |
|
Power |
220V/2.5KW |
220V/2.5KW |
380v /2.5kw |
380v /2.5kw |
|
Dimensions (LXWXH)mm |
980X820X1580mm |
1260mmX900mmX1680mm |
1500X1070X1750mm |
1550X1200X1750mm |
|
Weight |
280kg |
420kg |
480kg |
550kg |
