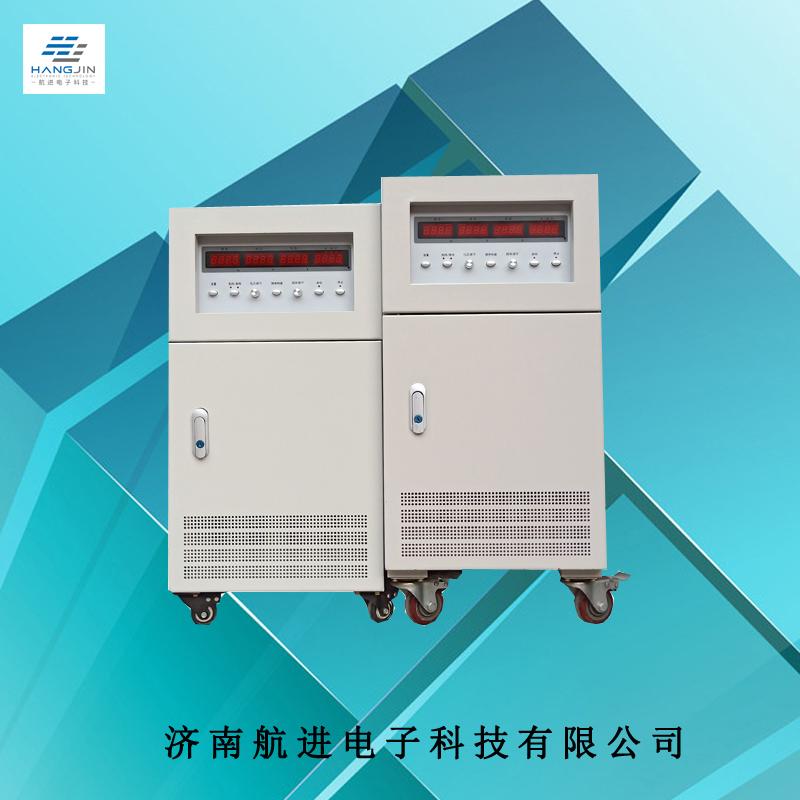

| Model: | HJ-51010 |
|---|---|
| Brand: | HANGJIN ELECTRONIC TECHNOLOGY |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Power Supply & Distribution / Other Power Supply & Distribution |
| Label: | LED variable frequen |
| Price: |
US $2250
/ pc
|
| Min. Order: | 1 pc |
| Last Online:05 Sep, 2025 |
model
HJ-51010
capacity
10KVA
INPUT VOLTAGE
Single phase two-wire+ground wire, AC220V ± 10%
input frequency
50Hz/60Hz±5Hz
hand over
flow
transport
go out
Number of phases
single phase
voltage
Low range: 0.1V-150.0V/0.1V-300V, adjustable step size 1V/0.1V
frequency
Fixed frequency: 50Hz, 100Hz, 200Hz, 300Hz, 400Hz
FM: 45Hz~400Hz frequency adjustment step 1Hz/0.1Hz
wave form
sine wave
voltage stability
≤1%
Frequency stability
≤0.05%
Total harmonic content
≤ 2% (resistive load) (THD)
source voltage effect
≤0.5%
loading effect
≤1%
efficiency
≥80%
apparent
show
dress
place
voltage
Four digit LCD with a resolution of 0.1V
frequency
Four digit LCD with a resolution of 0.1Hz
electric current
Four digit LCD with a resolution of 0.01A
power
Four digit LCD with a resolution of 0.01kW/0.001kW
protect
Protection against overload, overcurrent, overheating, short circuit, etc
Alarm
After the protective device is activated, it sends an alarm signal and displays a fault code;
Modulation Type
SPWM modulation
Isolated output
Transformer isolation output
Cooling method
Inverter module: air-cooled
degrees of protection provided by enclosure
IP20
weight
About 100kg
Dimensions (mm)
W*H*D 380*700*500
Usage environment
Temperature: -10 ℃~40 ℃ Humidity: 10%~90% (25 ℃, no condensation), Sea wave height ≤ 2000m
| Price Terms: | discuss personally |
|---|---|
| Payment Terms: | Delivery upon payment |
| Packing: | Wooden crate |
| Lead Time: | 15 |
| SKU: | 0 |
| custom_attr1: | Performance characteristics: 1. Fully isolated input and output technology ensures safe and reliable power supply; 2. Adopting SPWM sine wave pulse width modulation technology, with fast response speed and stable output 3. IGBT high-frequency static inverter, small size, light weight, low noise, high efficiency; 4. Adopting a unique instantaneous value and effective value dual loop control method, the control accuracy is high, the waveform quality is good, and it can adapt to various loads; 5. High power IGBT module and highly integrated module driver circuit, reliable operation, strong overload capacity, low loss, and high efficiency; 6. Suitable for various loads such as resistive, inductive, rectifier, etc; 7. It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit; 8. Equipped with parameter setting memory function and (10 sets) shortcut key operation; 9. The power supply voltage and frequency can be adjusted online, and the frequency can change in real time; |
