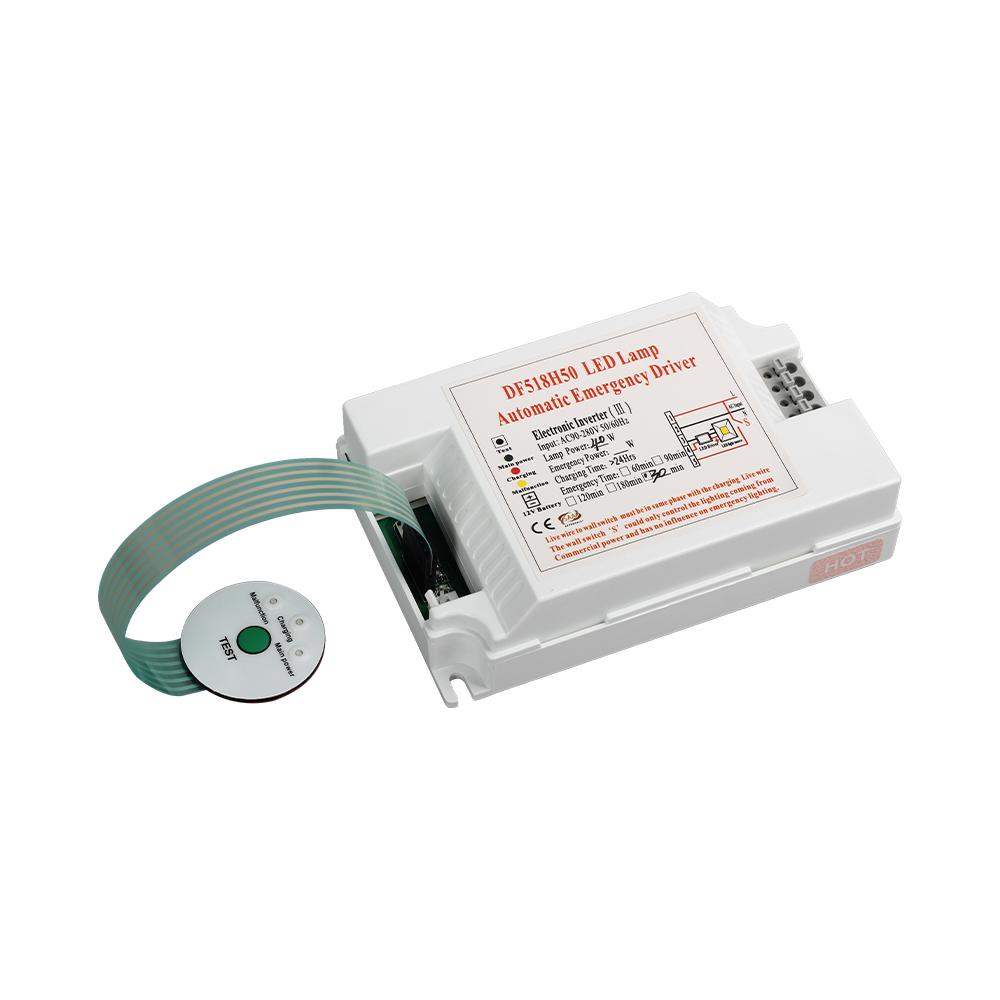

LED emergency power supply 518h150

LED emergency power supply 518h150, used for 100W-200W mining lamps and tunnel lamps, sufficient power emergency lighting for more than 90 minutes
Emergency power supply with wide voltage setting, universal worldwide.
Isolated power supply, IC charging management, SAA and other safety certifications.
High-quality lighting emergency power supply, comparable to imported quality.
Large exports to Europe, America, Australia, Hong Kong and other places.
It can be used to drive external and internal LED light sources.
Allows one set of emergency power supply to match multiple LED lamps, and the total power must be between the range
Use with high-temperature resistant lithium battery LIR and other rechargeable battery packs, and digital circuits are strictly prohibited from using nickel battery packs;
International lines, thin film PC board three-color indicator light detection switch is safe and beautiful. Automatically switch working status.
100% full power emergency lighting after power outage, the same brightness as city power lighting.
The emergency power supply has multiple protection functions:
A Charging protection, after charging saturation, it automatically switches to trickle charging state to compensate for battery self-discharge;
B Discharge protection, during emergency lighting, when the battery power is exhausted, the discharge lamp will automatically end and turn off;
C No-load protection, during emergency lighting, if the lamp is damaged or taken away manually, the circuit will automatically return to zero and no longer work;
D Short circuit protection, self-recovery function.
E Self-test function, no manual detection of emergency lighting function.
Connect the circuit strictly according to the wiring diagram, and do not open the cover at will;
Technical parameters:
Input: AC 100V-270V 50HZ Power: 100W-200W Emergency time: set according to customer requirements;
Battery: DC37V Charging current: 500mA Length, width and thickness = 150*78*30mm Weight = 550g
