| Model: | TM-IR-6X1M |
|---|---|
| Brand: | tamprinter |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Drying Machine |
| Label: | Printing dryer , Drying System , dry equipment |
| Price: |
US $6000
/ set
|
| Min. Order: | 1 set |
| Last Online:19 Jun, 2025 |
Basic Info.
Model NO.:TM-IR-6X1M Heating Elements:Quartz Heating Tube
Transport Package:Plywood Specification:6050X1050mmX1400mm
Trademark:TAMPRINTER Origin:Shenzhen, Guangdong, China(Mainland)
HS Code:8514300090 Production Capacity:10set Per Month
Packaging & Delivery
Package Size: 268.00cm * 125.00cm * 160.00cm Package Gross Weight: 500.000kg
Product Description

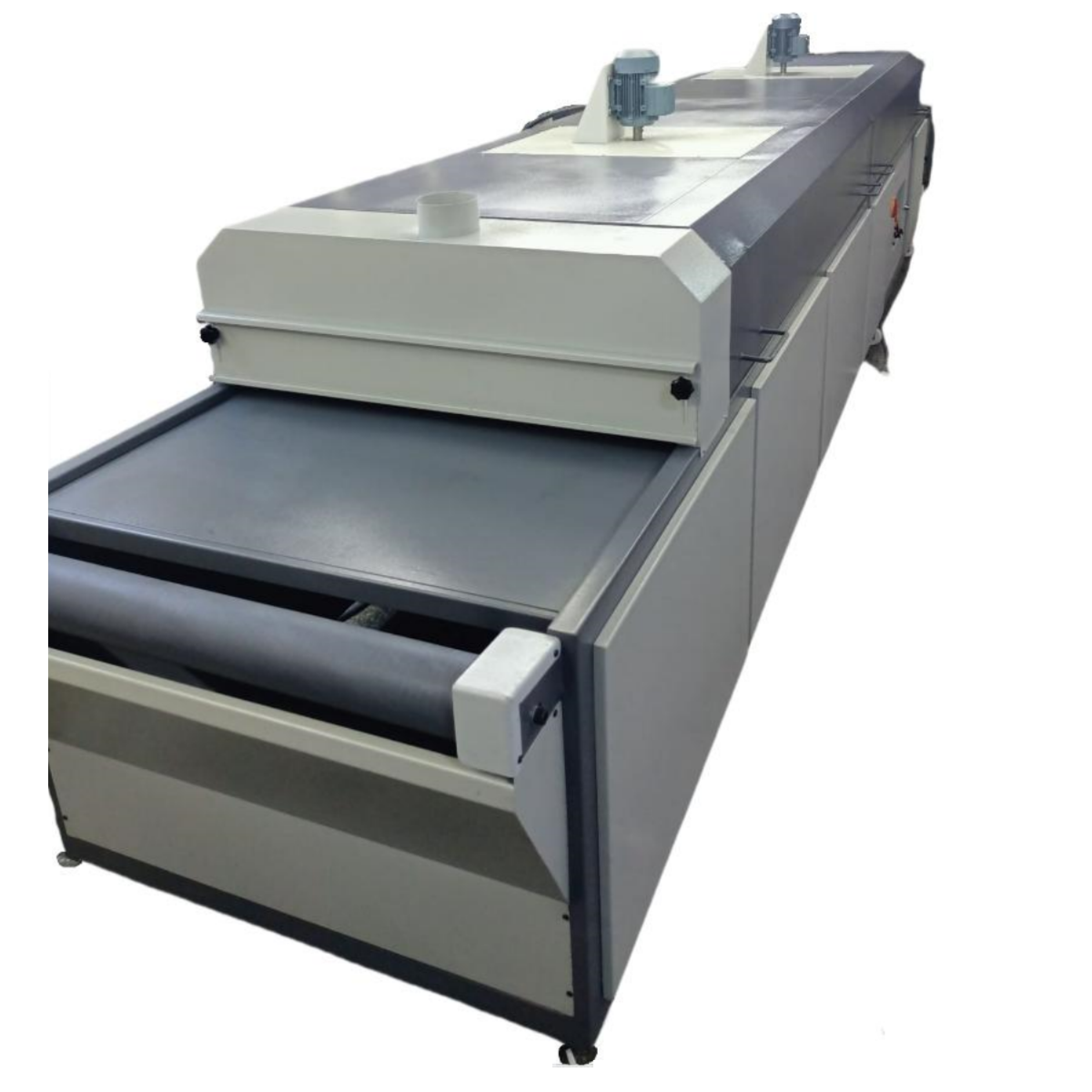

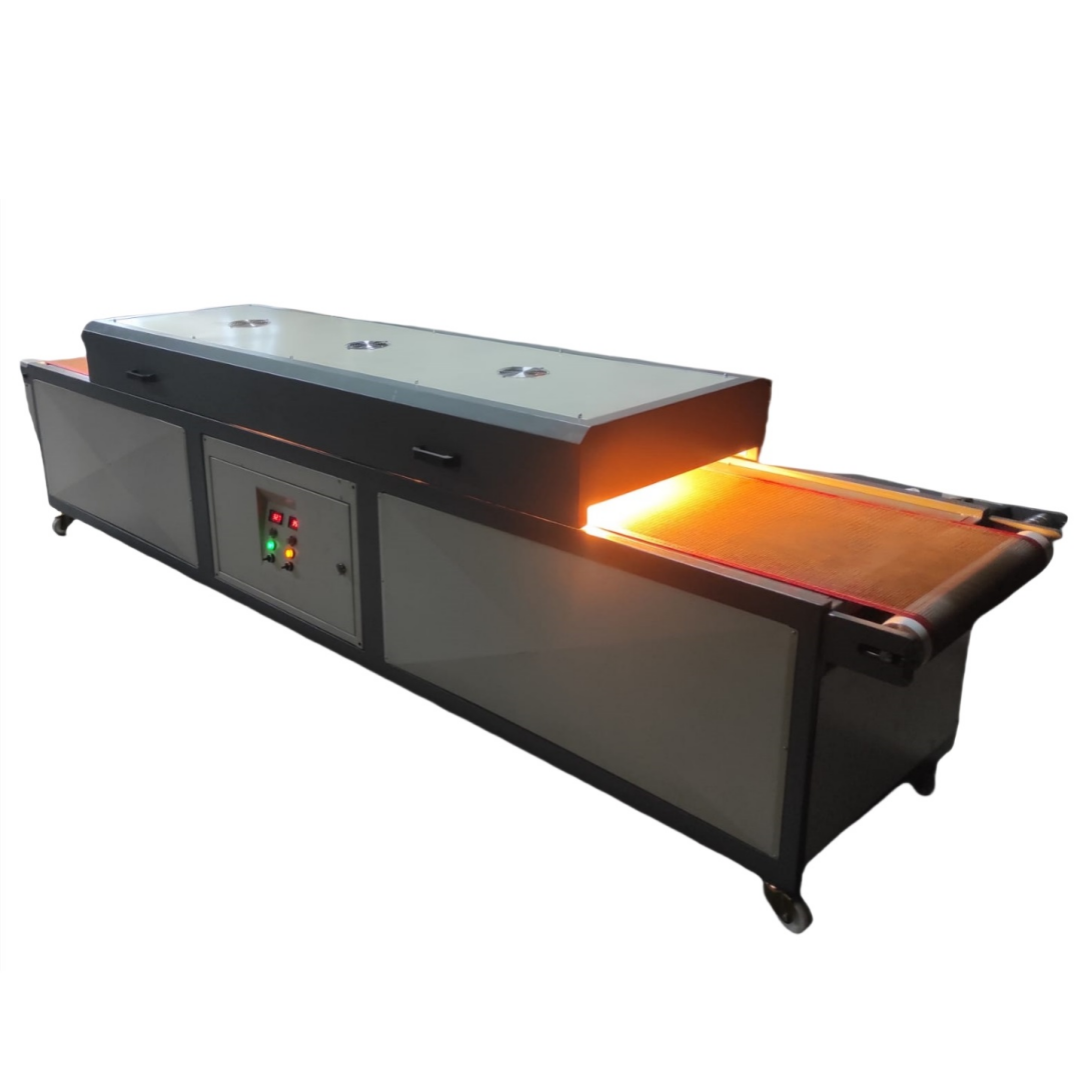

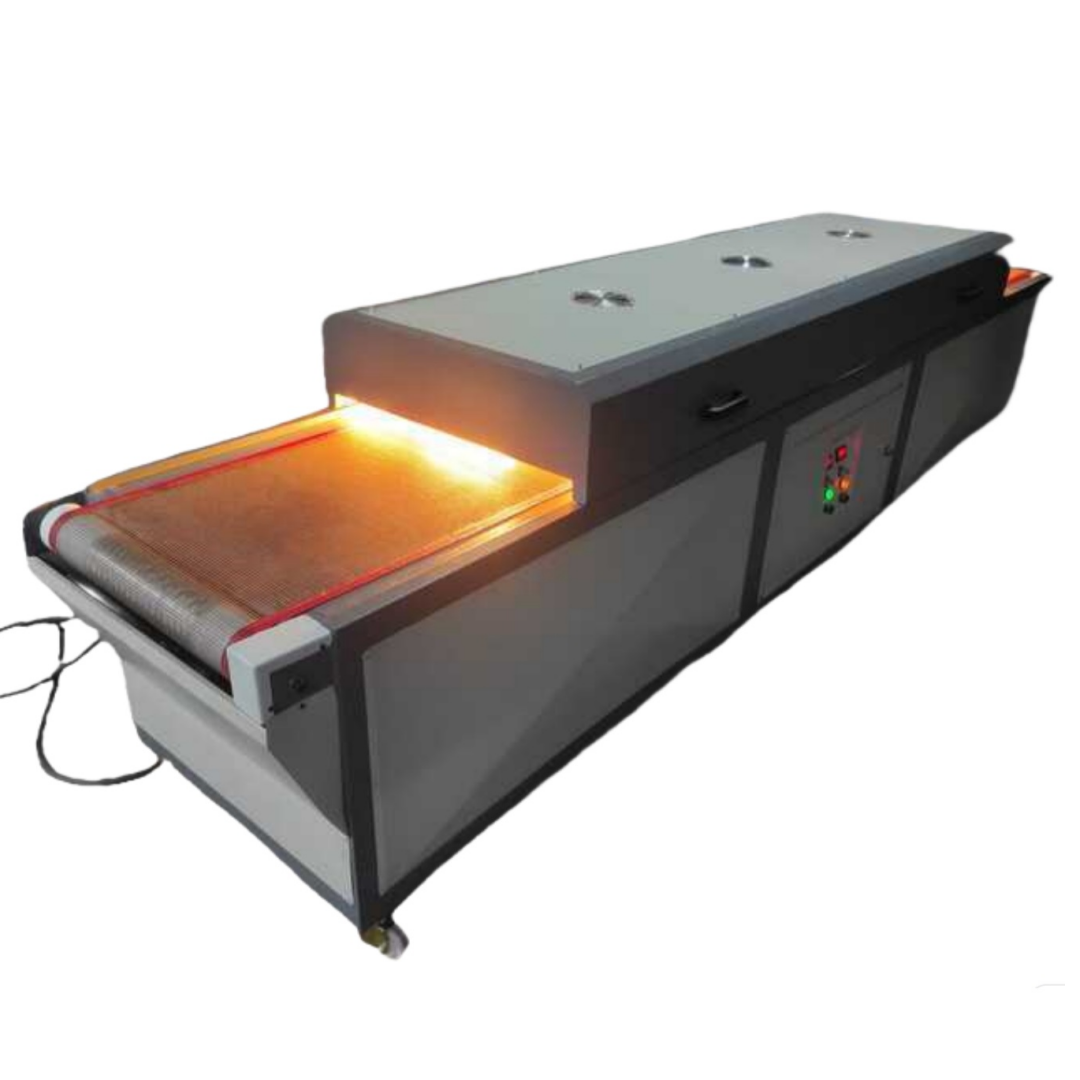

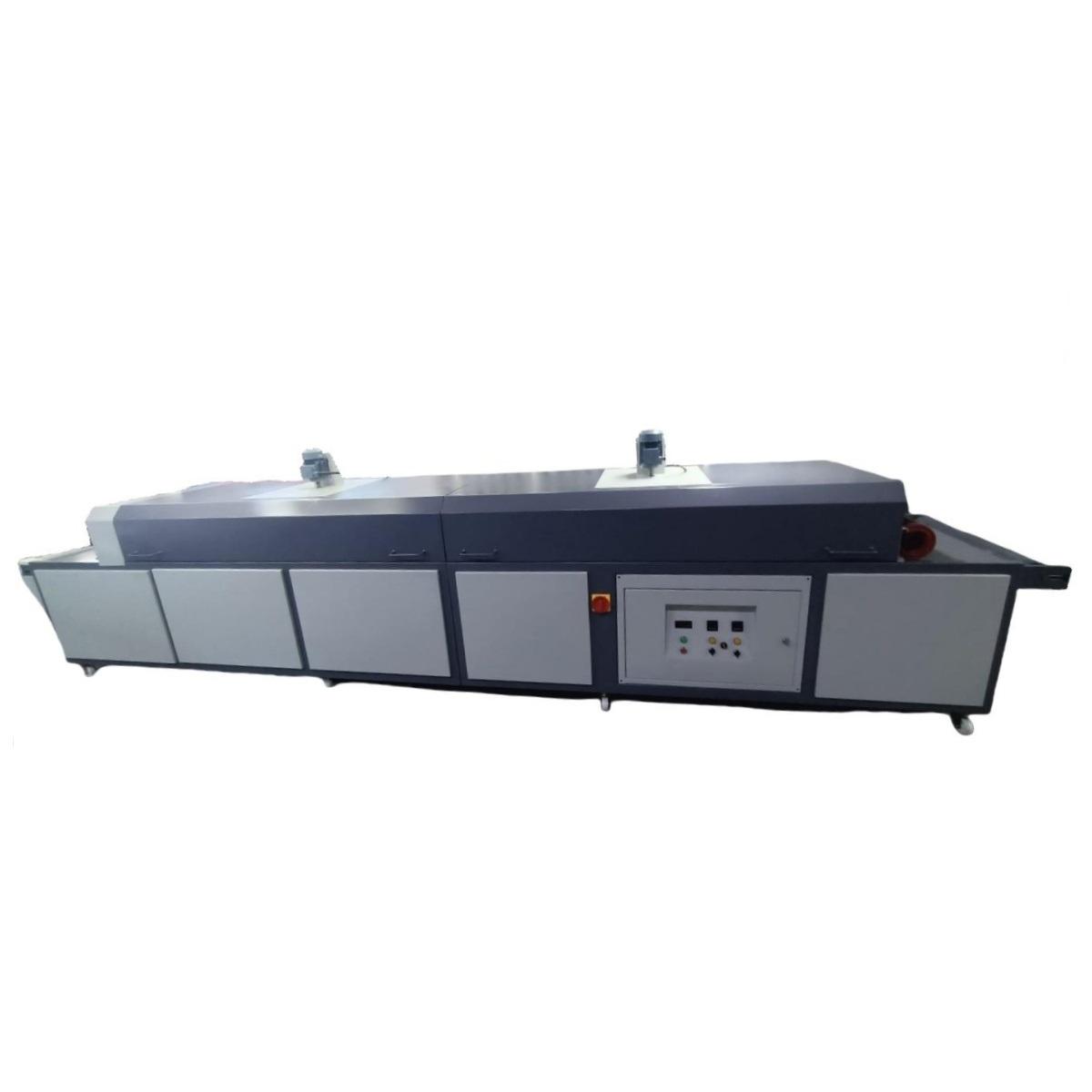

Why choose TAMPRINTER Conveyor Drying System for pad printing
The TM-IR-6X1M is a Conventional Heat Drying System, includes Adjustable Entry and Exit Height, Heating Unit and Conveyor Speed, max curing size 40″ and max curing speed of 30 parts per minute. The TM-IR-6X1M Conveyor Drying System is a great addition to an ever expanding line of AutoTran pad printing equipment. This system displays flexibility with variable speeds and temperature controls, along with adjustable doors and heat panel. The TM-IR-6X1M has the ability to be customized to fit your specific application.
Specification
Applications
1.Home appliance industry: Home appliance panel precision screen printing electric heat drying
2.Roadwork: road sign and nameplate Printing drying
3.electronic optics industry: Light guide plate dust-free workshop screen printing drying
4.Apparel leather industry: after pringting dry
5. packing industry: Picture album greeting card golden vermicelli printing production line drying section
...............................
Key Configurations
Drive: Electric variable speed drive
Heat System: Precision-controlled temperature ,Quartz heating tube direct heat radiation
Converyor system: Teflone mesh belt with adjustable tension
Operating system: Ordinary knob buttons in Chinese and English on the panel, easy to understand, easy to operate, simple logic circuit, easy to repair and maintain.
Exhaust system: You can open and close the external pipes at will, or add an external fan to force the moisture to be discharged.
Insulation structure: According to different temperatures, choose aluminum silicate insulation cotton with a thickness of 50~500mm
Key Configurations
Infrastructure:Powder coated cabinet for easy clean up,Multiple size options (standard, long-reach, heavy-duty)
Door:Adjustable entrance and exit doors to maximize the chamber heat (1"-5")
Fan:Internal circulation fan,Multiple modes are available for purchase. The top squirrel cage fan is the simplest and cheapest.
For thin products, such as non-woven bags, the tunnel dryer has spray air as an option to prevent the centrifugal fan's suction from causing the product to fly and contact the high-temperature lamp tube.
In the circuit board industry, the heat source is at the bottom, and the hot air spray product is directly transported by high-temperature pipes
| right elevation | left elevation | front elevation |
 |
 |
 |
Technical Specifications
(Custom configurations available upon request.)
|
Model |
TM-IR-6X1M |
TM-IR-10X1M |
TM-IR-3X1M |
|
Power (kW) |
20 /380V /3PHASE |
40 /380V /3PHASE |
10 /380V /3PHASE |
|
Speed (m/min) |
0~40 |
0~40 |
0~40 |
|
Temperature (celsius) |
RT~ 200 |
RT~ 200 |
RT~ 200 |
|
Size (inch) |
Length 237"Width 40"Height 52" |
Length 394"Width 40"Height 52" |
Length 118"Width 40"Height 52" |
|
Weight (lbs) |
1900 |
3000 |
900 |
|
Belt width (m) |
1 |
1 |
1 |
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
SHENZHEN TAMPRINTER PRINTING MACHIN DONGGUAN CITY BRANCH FACTORY.
SHENZHEN TAMPRINTER PRINTING MACHIN DONGGUAN CITY BRANCH FACTORY. is a leading Chinese manufacturer of printing equipment with over 12 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
Why Choose Us?
Other Products
FAQ
Q1: What's the lead time for orders?
A1: Standard models ship in 15–30 days; customized units require 30–45 days.
Q2: Do you provide after-sales service overseas?
A2: Yes, we have partnered service centers in key regions.
Q3: Can I request a customized dryer tunnel size?
A3: Absolutely! We offer tailored attachments.
Q4: What documents do you provide for export?
A4: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q5: How do I place an order?
A5: Contact us via email/phone for a quote, then confirm with a PO.
Q6:
How to choose a Chinese supplier of hot tunnel furnaces for the pad printing industry
A6
You can consider the following aspects:
Review the qualifications of the manufacturer: Make sure that the supplier has complete qualifications, such as business license, brand certificate, and product CE certificate. These qualifications are the basic guarantee for legal operation and product quality.
Consider reputation: Brand awareness, the reputation and reputation of the manufacturer are the result of its long-term operation accumulation, which can be understood by consulting the official website, customer cases, etc.
Evaluate product quality and performance: Have an in-depth understanding of the product's technical parameters, structural design, working principle, etc., conduct sample testing when conditions permit, operate the tunnel furnace in person, and evaluate its heating speed, temperature stability, etc.
Inspect service and after-sales support: Good service and perfect after-sales support are crucial to corporate production. Suppliers should be able to provide professional pre-sales consultation and detailed solutions, and respond to customer questions and needs in a timely manner
Q7:
How does a tunnel furnace work?
A7:
The core component of a tunnel furnace is the heating elements, which are distributed on both sides or the top of the furnace body. When the equipment is started, the heating elements generate heat and transfer the heat to the material in the furnace by radiation and convection. A conveyor belt is provided inside the tunnel furnace to transport the material to be processed from the entrance to the exit to achieve continuous production. During the conveying process, the material passes through the heating area inside the furnace body and is uniformly heat treated to achieve the expected process requirements.
Q8:
What are the application areas of tunnel furnaces?
A8:
1. Industrial production: Tunnel furnaces are widely used in industrial production, such as heat treatment processes in metal processing, glass products, ceramic products, plastic products and other industries. Heating, drying, sintering, melting and other treatments of materials through tunnel furnaces can improve the quality and performance of products and reduce production costs. This case is for ink drying in pad printing process.
2. Scientific research experiments: Tunnel furnaces also play an important role in scientific research. For example, the muffle furnace commonly used in laboratories is a typical tunnel furnace. By adjusting parameters such as heating temperature, atmosphere and time, researchers can study the properties of materials, synthesize new materials and explore new scientific phenomena.
3. Daily life: Tunnel ovens also play an important role in people's daily lives. For example, tunnel ovens are the application of tunnel ovens in homes. Through tunnel ovens, people can easily bake bread, cakes and other delicacies, adding color to life.
