| Model: | APW-S4020BA |
|---|---|
| Brand: | APW |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Cutting & Fold-bend Machine |
| Label: | water jet cutter , water jet machine , water jet |
| Price: |
US $40000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:02 Jul, 2025 |
|

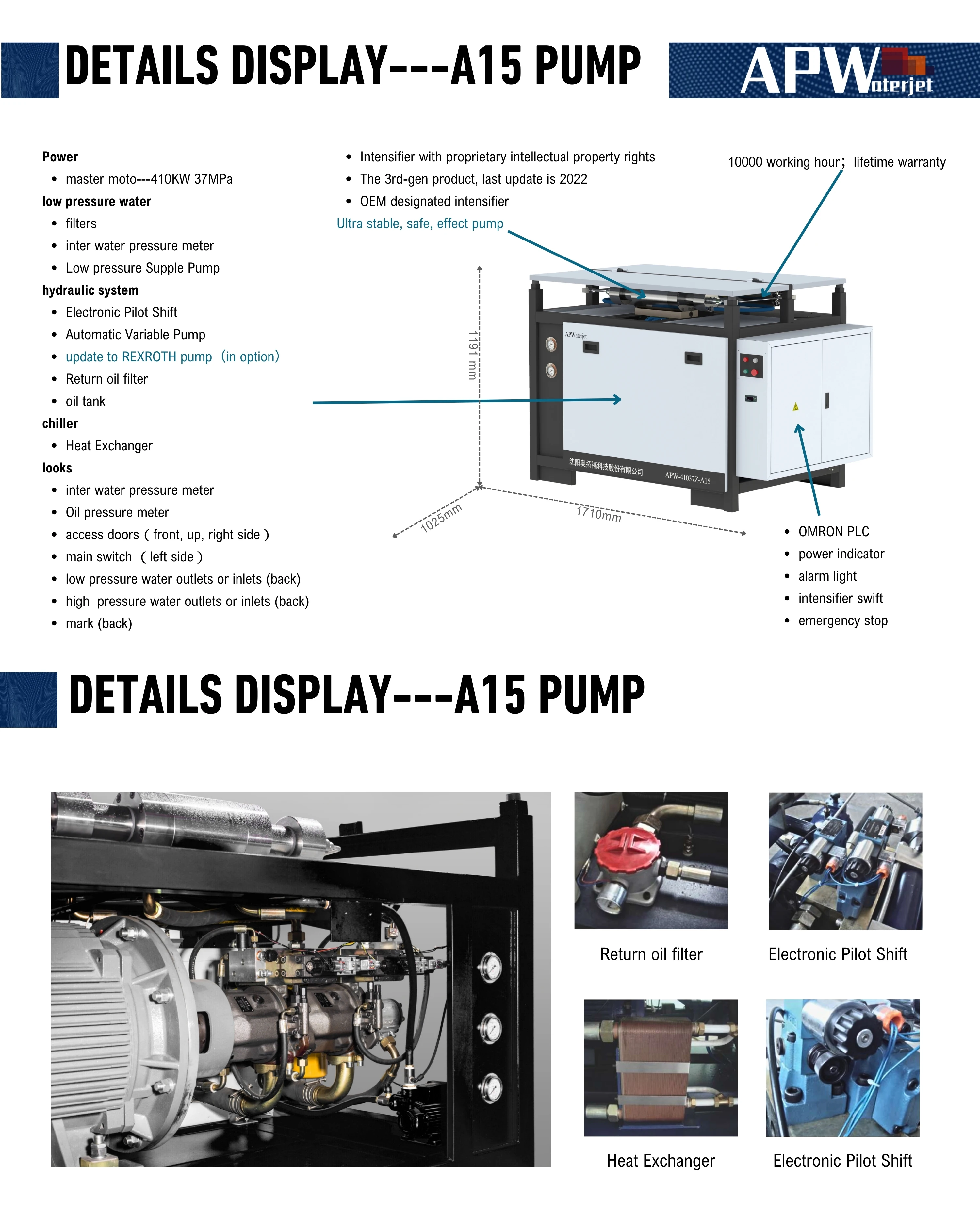

APW-A15 pump |
update |
|
|
power rate |
37KW |
|
|
Max.Pressure |
420MPa |
|
|
intensifier |
1 pic |
dual-intensifier |
|
HP Flow Rate |
3.7L/MIN |
|
|
Max. Orifice |
0.33mm |
|
|
electricity supply |
AC380V 50HZ 3PH |
|
|
ambient Temp. |
5-40℃ |
|
|
accumulator |
1.0L |
1.2L |
|
oil tank |
114L |
|
|
size |
1710*1025*1191mm |
|
|
Weight |
980KG |
|
|
color |
white |
customerizel |
|

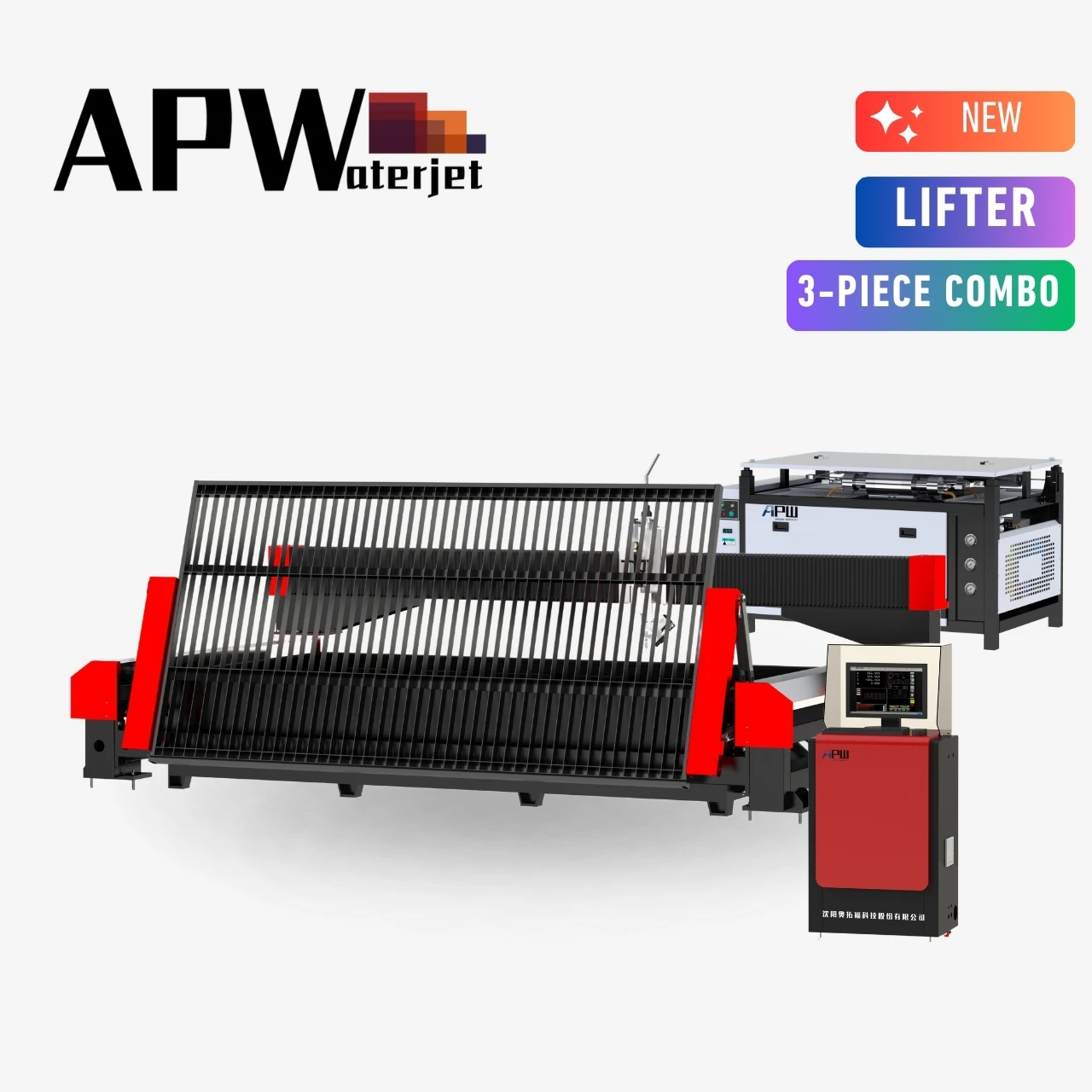

TABLE-S4020BA |
update |
|
|
table size(X-Y) |
4000-2000mm |
|
|
repeatability |
0.03mm |
|
|
cutting accuracy |
0.1mm |
dual-intensifier |
|
traverse speed |
10m/min |
|
|
transform system |
ball crew |
gear rack with grating |
|
load capacity |
500KG/square meter |
|
|
structure |
bridge style |
|
|
drive way |
servo control |
1.2L |
|
ball screw |
TBI |
|
|
linear guide |
WON |
|
|
Sand supplier-DN500 |
update |
|
|
load capacity |
120KG |
300KG |
|
supply style |
negative pressure |
|
|
Head-BP |
update |
|
|
axis |
3 |
AC 5-axis |
|
Control system |
update |
|
|
NC studio |
||
|
CHiller |
update |
|
|
chill style |
heat exchanger |
oil cooler |
