Hog Ring Making Machine

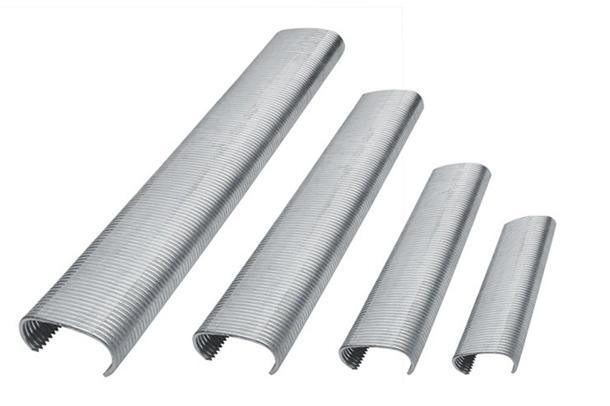

Hog ring is widely used in industry, such as furniture, wooden box, gabion box and so on. The hog ring is used with hog ring gun and hog ring is stick by adhesive tape to make them together. It also has various size and diameter, the minimum size is 1.6mm and the maximum size is 3.0mm. The size is depend on their usage.

Advantages of Hog Ring Making Machine

CANDID hog ring making machine uses adhesive tape to connect the hog ring through a heating device, so that it can make the connecting stronger.

The length of finished product could be adjusted according to customers' requirement through change the cutter position.

CANDID hog c ring making machine adopts proximity switch at the wire feeding position, so machine will stop automatically when there are some problems. It can extend the lifetime of hog ring making machine.

FAQs of Hog Ring Making Machine

What is the power supply does each type of your machine use?

The power supply is 380V; 3-Phase, 50Hz, but we can design the machine according to your requirement.

What's the raw material for hog ring machine?

The raw material is Galvanized Wire (1.6-3.0mm) and Hot Melt Adhesive Tape.

How to connect the hog ring?

The hog ring is connected by hot melt adhesive tape. When the tape is heated to 200 ºC, it will have a strong stickiness and stick the nails together.

For hog ring making machine, what's information should be provided by customer?

The Height of hog ring, the diameter of wire, the width between two legs and the width of hog ring.

Why hog ring making machine using adhesive tape to connect the hog ring not the glue?

The rack in hog ring gun is round, if we connect it by glue, the hog ring can not use in the gun.

What is the price of adhesive tape?

It is around US$50.00/coil (800m/coil).

How many pieces hog ring per strip?

Commonly, it is 100pcs for 1 strip. But, customer could adjust it according to their requirement through changing the cutting position.

What is the consumption for hot melt adhesive tape?

Dia. of hog ring

Capacity for 1 coil tape

1 month consumption (8h/day,22day/mon)

1.8 mm

100pcs/strip

4400 strips

4 coils

3.0 mm

650 strips

6 coils

Founded in 2004, CANDID machinery has a yearly export value over 4 million USD, and has business partners in more than 30 countries. Our Main markets include Russia, Ukraine, Poland, Italy, Algeria, Tunisia, Ghana, Nigeria, Cameroon, Nepal, India, Bangladesh, Peru, and Salvador etc. CANDID has a skillful team that provides optimal solutions to our customers' investments. CANDID's goal is to help every client set up a plant with safety, efficiency and accuracy. Wherever you are, CANDID has rich experience in installation, commissioning and training. If you are looking for reliable and high-quality equipment, look no further than HANGZHOU CANDID I/E CO., LTD. Contact us today to learn more about our products and services.
