[Parameter]

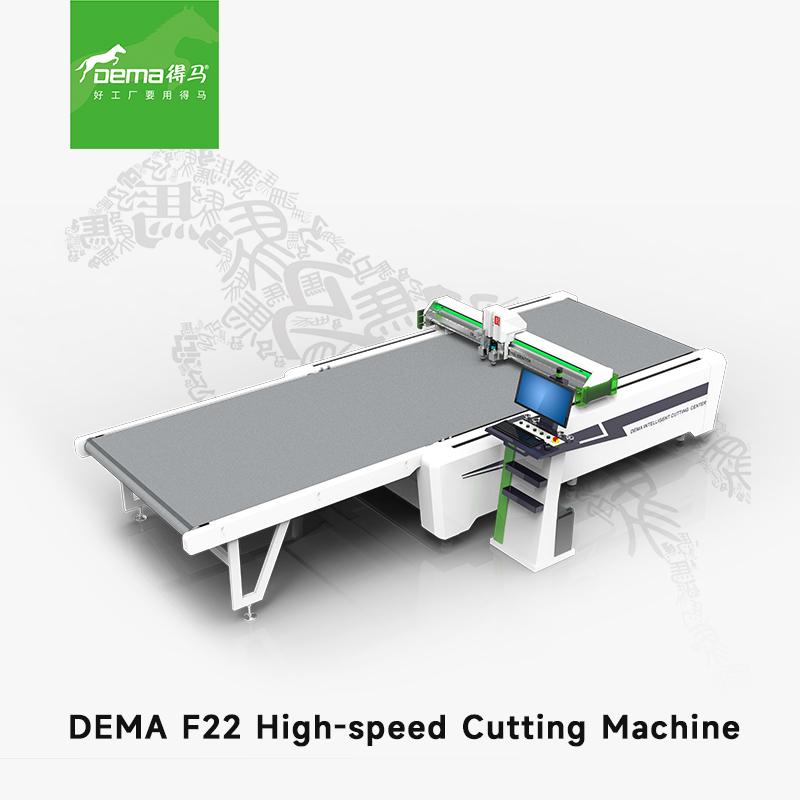

| F22 High-speed Cutting Machine |
| Model |
F22 |
| Equipment Dimensions |
5620mm*2265mm*1360mm |
| Machining stroke |
2500mm*1650mm*70mm |
| Control system |
DEMA ICUT multi-functional cutting control system |
| X/Y Transmission Mode |
Grinding rack |
| Driver motor |
High precision servo |
| Vibration knife |
Multi-functional intelligent cutting module |
| CCD |
Visual positioning system |
| Mesa structure |
Thickened aviation honeycomb adsorbed aluminum sheet |
| Moving Speed |
120m/min |
| Working Speed |
90m/min |
| Voltage and frequency |
AC380V/50Hz/60Hz |
[Core Component Configuration]
■ High-flex cable with unyielding durability
Crafted from imported materials, this high-flex cable is engineered to withstand extreme stress, ensuring reliable performance even after millions of repetitive motions. Its robust construction prevents breakage during continuous, high-frequency operations, extending service life and minimizing downtime.
■ Laser Tool Setter
It improves the cutting accuracy and efficiency, and reduces the material waste rate by adopting the non-contact laser tool setter.
■ Universal Tool Holder Design
Universal tool holder supports various knife tools, such as punching tool, indentation knife, vibration knife,round knife, drag tool, V-cut tool, pneumatic knife and kiss-cut tool. And different tools are applied for hundreds of flexible materials, so as to satisfy different industries’ requirement.
■ Rack Dual-drive Structure
The entire machine adopts a unique rack dual-drive structure, which significantly enhances the stability and tensile resistance of the machine tool.
■ Sorting Platform
The cut materials are automatically transported to the sorting platform, facilitating workers to sort and collect materials, saving checking time and improving work efficiency.
[Application Industries]
■ Advertising printing
F11 can process and produce billboards, signboards, display stands, posters, photos, roll, light boxes, labels, PVC board, KT board, aluminum-plastic board, ground stickers and so on.
■ Gift wrap
F11 can process all kinds of corrugated board, honeycomb board, pearl wool, EVA, coated paper, art paper, cardboard, carton and so on.
■ Printing industry
F11 can process special paper, plastic sheet, composite material, corrugated board, coated paper, art paper, cloth, non-woven fabric, etc.
■ Interior decoration
F11 can process fabrics, non-woven fabrics, EPE, EVA, wood and plastic composite materials, glass fiber reinforced plastics (FRP), wallpaper, wall stickers, etc.
■ Car interior
F11 can process fabrics, plastic sheets, foam materials, composite materials, leather, artificial leather, microfibers, carbon fibers, etc.
■ Clothing l age
F11 can process cloth, wool, PU leather, artificial leather, cotton, linen, silk, knitting, plastic film, chemical fabric, etc.
