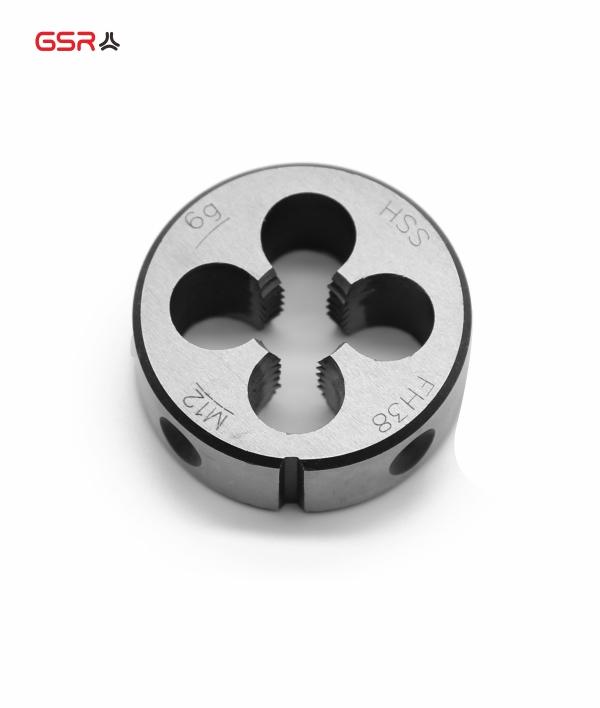

HSS Round Die Introduction
HSS round dies are round and usually have three or more cutting edges. They are either used for manual use of die holders or clamped into the quill to use in a turning lathe. The chips are discharged through the plane holes in round dies.
Round dies are used for thread processing to make external threads, such as cutting new threads or repairing old ones, also known as hexagonal dies and HSS round dies.
Round dies technical data
|
Type of thread |
Metric ISO-thread |
|
Standard |
DIN 223 (DIN EN 22568) |
|
Form |
Solid Version(Form B) |
|
Material |
HSS-G/HSS-E |
|
Tolerance |
6g |
|
HRC |
61-66 |
|
Surface |
Bright Finished |
|
Cutting Direction |
Right |
|
Thread Angle |
60° |
|
Application |
External Thread Cutting |
What is the round die?
Round dies are the thread cutting tools used for making external threads. They are round and usually have three or more cutting edges. They are either used for manual use with die stocks or clamped into the socket to use on a turning lathe. Round dies are available slotted (style A) or closed (style B), with closed being the most commonly used style.
