| Model: | - |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | Hot Stamping Machine , cap hot stamping , hot foil stamping |
| Price: |
US $15890
/ pc
|
| Min. Order: | 1 pc |
| Last Online:17 Oct, 2025 |

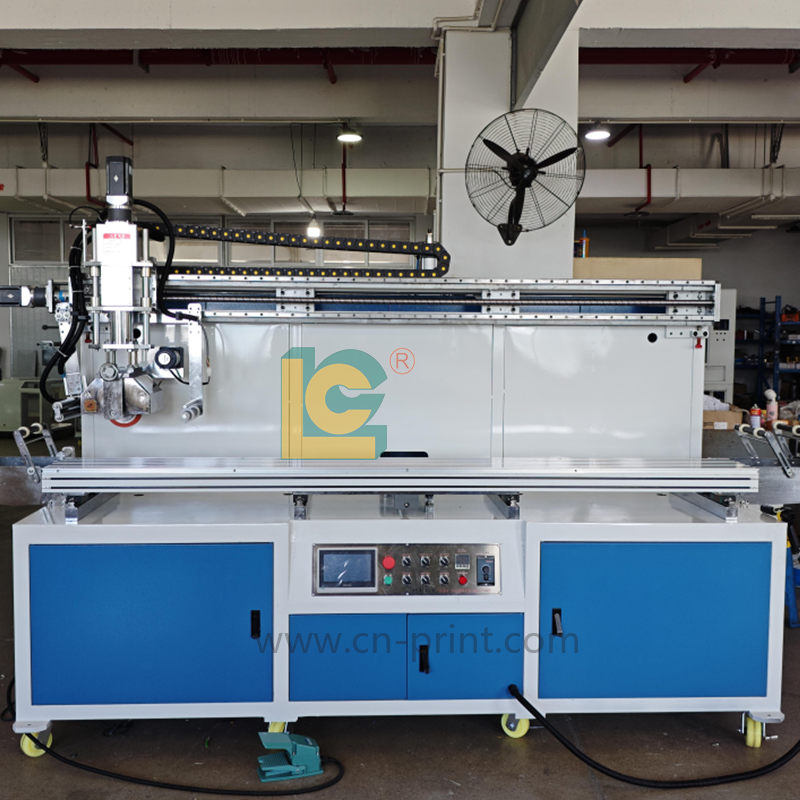

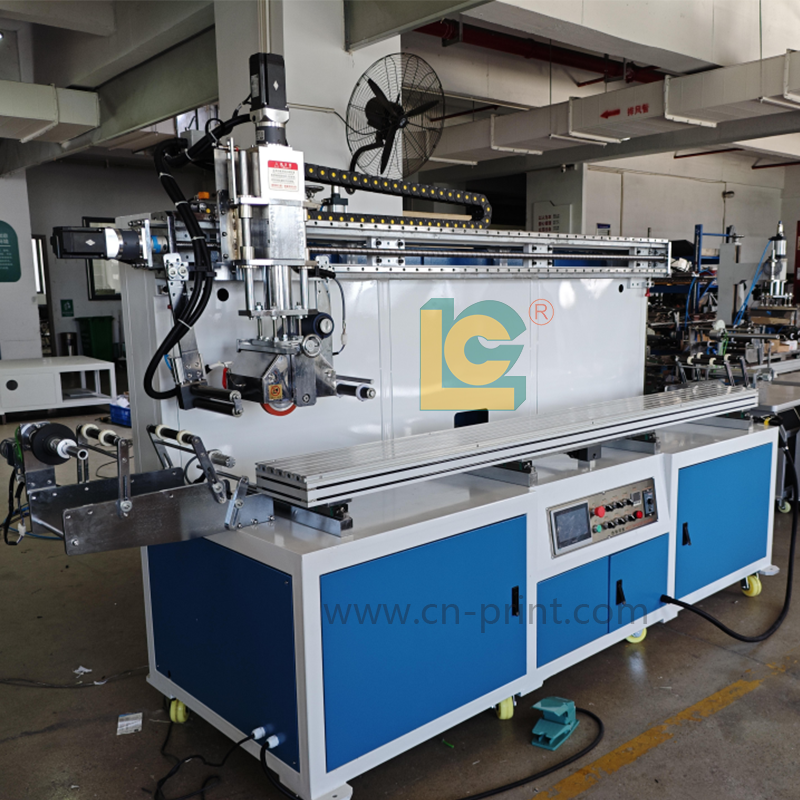

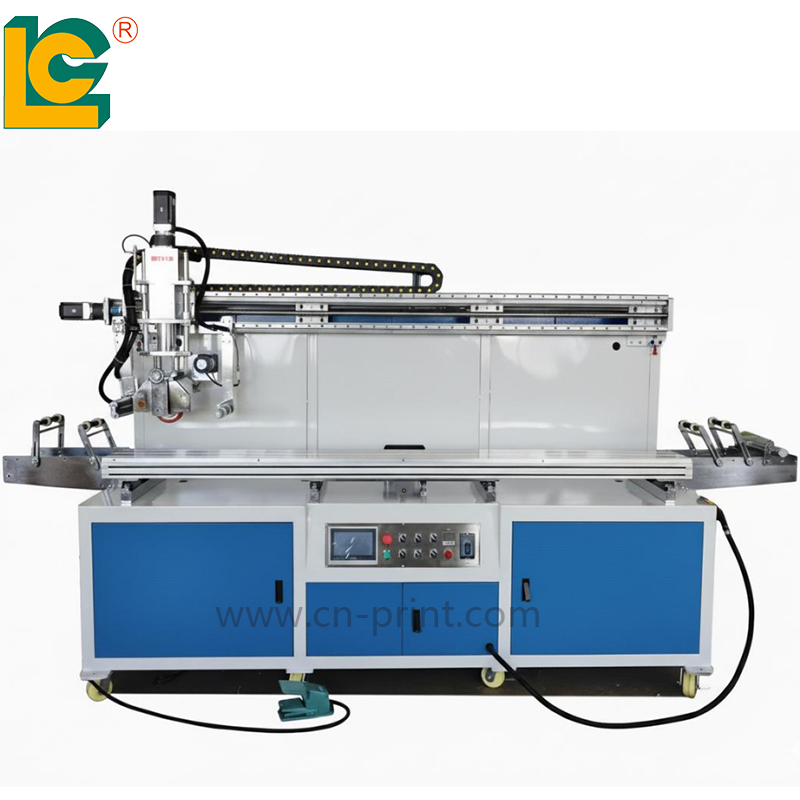

Hot head lifting (Z-axis) is driven by a 750W servo.
• Both axes are equipped with planetary reducers to ensure positioning accuracy and stable thrust.
• Automatic loading/unloading worktable: Executed by a linear module driven by a pneumatic cylinder, reducing manual intervention.
• Stamping method: Heating and pressurizing with a silicone rubber roller, driven by an adjustable-speed reduction motor.
• Unwinding: A reduction motor provides constant tension.
• Rewinding: A closed-loop motor (with encoder) ensures constant tension recovery.
• The control system uniformly adopts Inovance (servo/PLC/HMI).
Max. Foil Stamping Length: ≤ 2000 mm
Max. Foil Stamping Width: ≤ 50 mm
Rubber Roller Length (Single Head): ≤ 50 mm
Effective Worktable Size (L×W): 2400 × 240 mm (Auto Infeed/Outfeed)
Control System: Inovance Servo + PLC + HMI
Power Supply: AC 380 V, 50/60 Hz
Rated Power: ≈ 3.5 kW
Air Supply: 0.4–0.6 MPa Clean Dry Compressed Air (Reference Value)
Overall Dimensions (L×W×H): 3500 × 1500 × 2300 mm
Net Weight: Approx. 1000 kg
