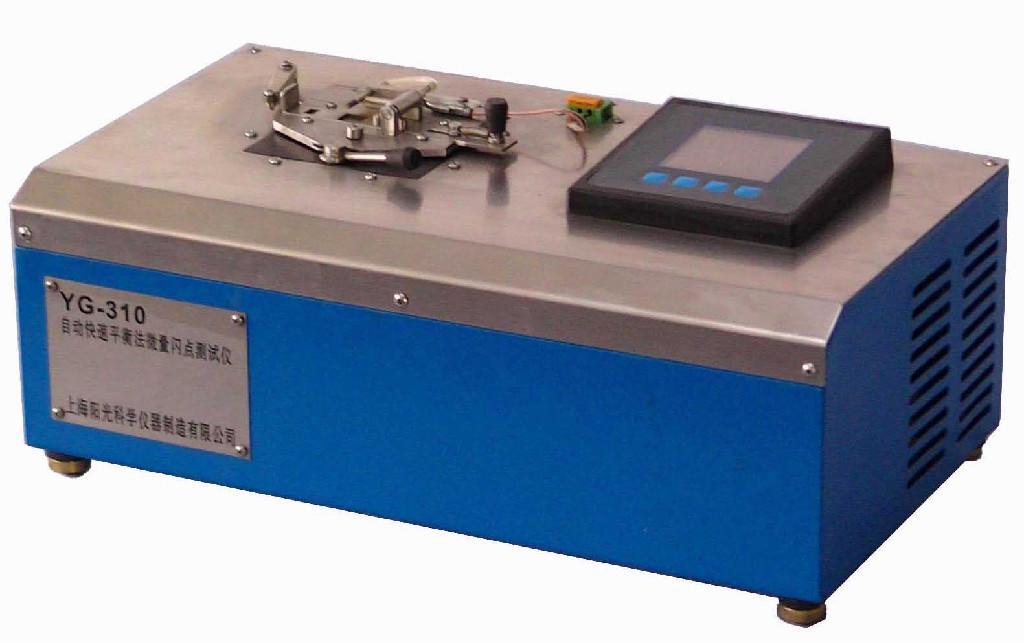

YG-310 is a automatic closed flash point tester, can rapid test flash point of coating, paint (water-based paint), varnish, lacquer base, adhesive, solvent, Fatty acid methyl ester (FAME), chemical reagent, flavor, spices, solid chemical products, viscous chemical products, , air fuel oil, petroleum and related products.

Function Overview

Instrument can detect the flash point at a specific temperature between -0 ℃ and 100 ℃ (-30 ℃ -300 ℃ optional) or at average rate heating. All functions are achieved through the membrane keypad and digital display. Users can select the built-in test procedures or set its own test parameters, you can modify the default program to implement custom non-standard test. Various parameters, such as the heating mode, time, temperature and the average rate heating can be set by the user themselves. Planning board action, the decline of the ignition, the detection of flash point is done automatically. A voice is prompted to user at each operation, at the end of the test there will be voice prompts, too. The gas ignition sources can be provided directly by the laboratory, you can also use the portable butane gas tank. Built-in cooling module is used to shorten the cooling time between the two tests.

Technical Parameters

1． Operate Conditions:

Operate Temperature: 15℃～35℃

Electric Supply:            220/240V，50/60Hz

2． Specifications:

Testing Method Meets Standards: ISO 3679, ISO 3680, ISO 1516 and ASTM D3278. ASTM D3828; and meets China Standards: GB/T5208-2008, GB/T21790-2008, GB5207 and GB7634.

Operate Method:         Manually

Temperature Range:    -0～100℃(-30℃～300℃ Optional)

Testing mode:        Automatically testing (flash fire probe)

Testing Accuracy:      0.5℃

Sample volume:         2ml (4ml)

Atmospheric pressure: Auto fix

Testing mode:             Rapid balanced mode and average rate heating    mode

Heating Rate:              Customize, quickest speed 5℃/min, longest duration 99min,                                             highest temperature 100℃ (300℃)

Programming Test:      The testing settings can be set through programming.                                                Customer can modify and customize the settings by using                                                 built-in test program.

Cooling Method:        Built-in cooling module (without external cooler 0℃～100℃)

Output Interface:        Computer RS232, printer (optional)

Size:                          400×220×170mm

Weight:                      6kg

3． Back-up Spare:

 Standard: Steam source regulation component

Silicone tube

2ml injector

Thermometer 0～100℃

O-Type Seal Ring (5)

Optional: Thick object injector

          Powdery object injector

          4ml injector

Flash point of quasi-standard oil (49.7℃)

Temperature Measurement Verifier (with certificate)

Ordering Information:    YG-301(-0～100℃)

YG-301B(-30～100℃)

YG-301A(Room temperature～300℃)
