Product Description
Specifications:
1) Resolution: 128 x 64 pixels

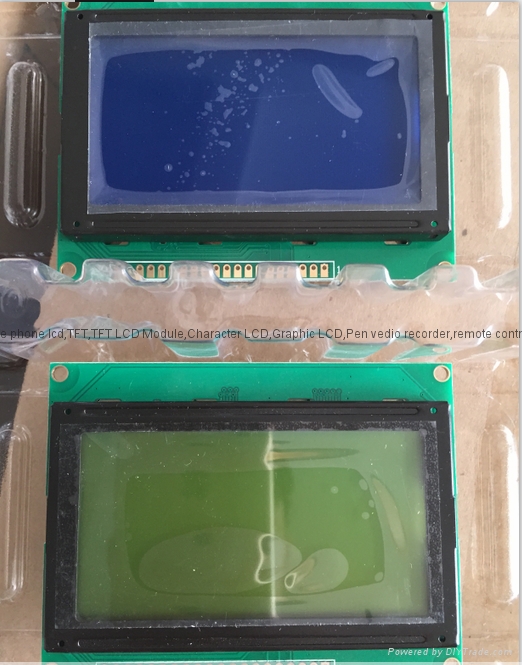

2) Screen: yellow-green, blue, gray, black, black and white, green
3) PCB: 113 x 65 x 1.6mm, 93 x 70 x 1.6mm, 93 x 70 x 1.6mm,
78 x 70 x 1.6mm, 54 x 50 x 1.0mm
4) Viewing area: 73.5 x 39mm, 80 x 42mm, 70.6 x 38.6mm,
63.4 x 45.4mm, 43.5 x 29.0mm
5) IC: S6B0107, S6B0108
6) High quality, favorable price, good service and quick delivery
7) Used for telephones, mobile phones, meters, instruments,
automobiles, PDAs and medical equipment
Other models:
1) Model TS12864a-1:
a) Yellow-green film (gray and blue available)
b) Dimensions: 133 x 65 x 14mm
c) Viewing area: 73.5 x 39mm
d) Active area: 64.974 x 32.462mm
e) LED backlight

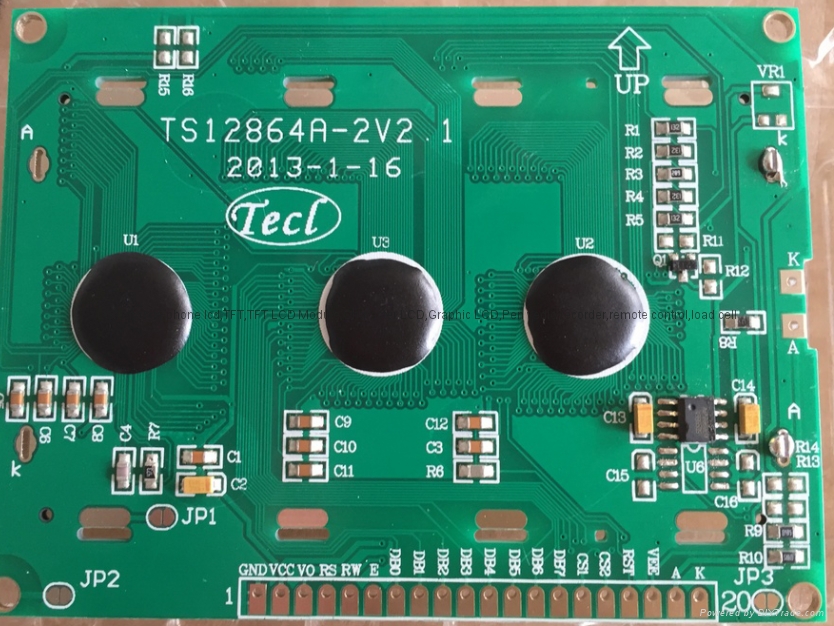

2) Model TS12864a-2:
a) Yellow-green screen
b) Dimensions: 93 x 70 x 14mm
c) Viewing area: 73.5 x 39.0mm
d) Active area: 64.974 x 32.462mm
e) LED backlight
3) Model TS12864a-3:
a) Yellow-green screen (gray and blue available)
b) Dimensions: 93 x 70 x 14mm
c) Viewing area: 80 x 42mm
d) Active area: 66.52 x 33.24mm
e) LED backlight
f) Chinese font
4) Model TS12864a-5:
a) Yellow-green screen (gray and blue available)
b) Dimensions: 78 x 70 x 14mm
c) Viewing area: 56.27 x 38.35mm
d) Active area: 66.52 x 33.24mm
e) LED backlight
5) Model TS12864-7:
a) Yellow-green screen (gray and blue available)
b) Dimensions: 54 x 50 x 7.0mm
c) Viewing area: 43.5 x 29mm
d) Active area: 40.92 x 24.92mm
e) EL backlight
6) We can supply the following graphic LCD modules: 128 x 18,
122 x 32, 160 x 32, 202 x 32, 240 x 32, 132 x 40, 128 x 64,
131 x 64, 192 x 64, 240 x 64, 256 x 64, 132 x 65, 160 x 80,
128 x 64, 192 x 64, 240 x 64, 256 x 64, 132 x 65, 160 x 80,
128 x 128, 240 x 128, 160 x 160, 240 x 160, 320 x 240 pixels
