Wit780 Datasheet

The wit780 series optical fiber line tester is a portable, full-function, economical OTDR, optical time domain reflectometer.

He was born in the context of the global wide application of optical fiber and cable, aiming at the optical fiber communication system wiring, construction, testing, maintenance, overhaul, FTTH fiber to home project, etc.

This product is mainly used to measure the length, loss, connection quality and other parameters of all kinds of optical fiber and optical cable; it can quickly locate the event point and fault point in the optical fiber link accurately.

The appearance of wit780 conforms to the principles of ergonomics and is firm and durable.

It has a simple and friendly operation interface, dual operation mode, which simplifies the use of users.

One button scanning, fast test results;

Event related information includes: event number, event location (distance), loss, reflection, slope between event points (attenuation coefficient), cumulative loss;

The whole machine adopts intelligent power management mode, large capacity lithium battery makes the whole machine work for more than 10 hours.

Wit780 product features

-Considering the practical function and high cost performance of the product, it is a practical choice (this is a built-in 1550nm single wave laser);

-24dB suitable dynamic range, testing expert within 70km;

-The shell with special protection design is strong and durable, and can work in harsh environment;

-Convenient operation mode, simple and easy to use;

-It has automatic test, manual test, real-time and other test modes.

-Built in visual red light fault location function;

-Standard FC \ SC \ St \ LC four head interchangeability, easy to replace, to achieve a variety of interface tests;

-Large capacity test trace storage;

-With battery capacity indication and charging indication function;

-10 hours super long endurance, suitable for long-time field construction application;

Wit780 product parameters

Model  Wit780 default     Wit7803

Wavelength (± 20nm)  1550nm single wavelength    1310nm-1550nm dual wavelength

dynamic range  24dB    24/24dB

Fiber type  Single mode SM

Event blind area6m

Attenuation blind area20m

measurement accuracy± (1m + 5 × 0.00001 × distance + sampling distance)

(excluding refractive index insertion error)data storage>10000 curves

Optical interfaceFC \ SC \ St \ LC Quad interchange

Display320 * 240 pixels, 3.5-inch TFT color LCD

Red light functionMore than 5KM

Power supply modeTwo way power supply: 4000mAh lithium ion rechargeable battery

AC adapter (12V / 1a)

Battery lifeAfter one charge: continuous operation ≥ 10 hours; charging time < 5 hours

working temperature-5 ℃ ~ 50 ℃

Storage temperature-20 ℃ ~ 70 ℃

relative humidity5% ~ 95% (non condensing)

weight0.99KG

Overall dimension (L × w × h)218mm * 118mm * 78mm

*The above parameters are subject to change without notice.

Ordering information:

Wit780 light source wavelength: 1550nm single mode single wave, dynamic range: 24dB [corresponding model of this price]

Wit7803 light source wavelength: 1310nm & 1550nm single mode double wave, dynamic range: 24 / 24dB

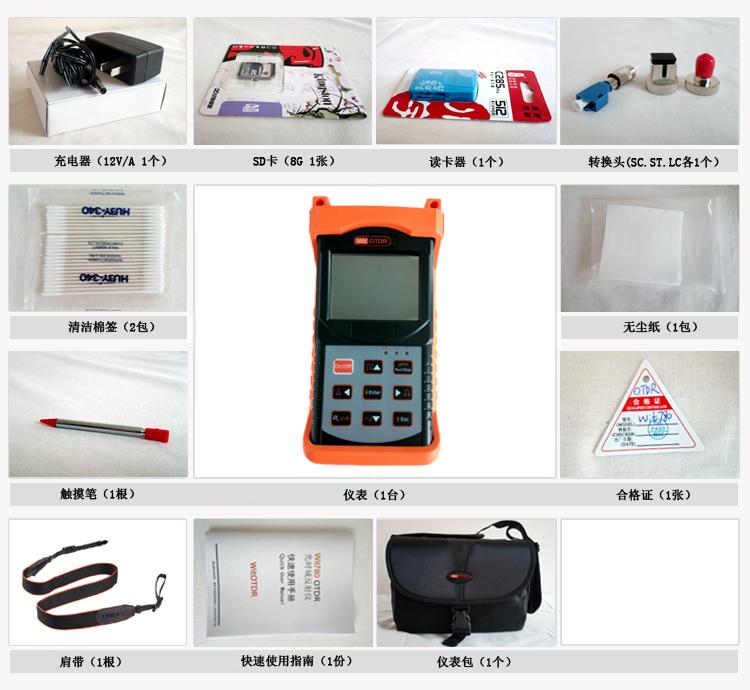

Product configuration:

1. OTDR host (including sheath) 1 set

2. FC (installed on the host), SC, St, LC optical port conversion head 1 each

3. One quick use manual

4. One rechargeable battery (placed in the machine)

5. One AC / DC power adapter

6. Clean 1 pack of cotton swabs

7. 1 portable instrument backpack (including straps)

8. CD 1.

Product warranty:

Free warranty for 12 months under normal use
