AAG6/1-20ml General Drawing Filling and Sealing Machine

Model:AAG6
Brand:Sunhang Pharmaceutical
Origin:Made In China
Category:Industrial Supplies / Pharmaceutic Machine
Label:Ampoule equipment , Ampoule filling , Ampoule fill-sealer
Price: US $8500 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

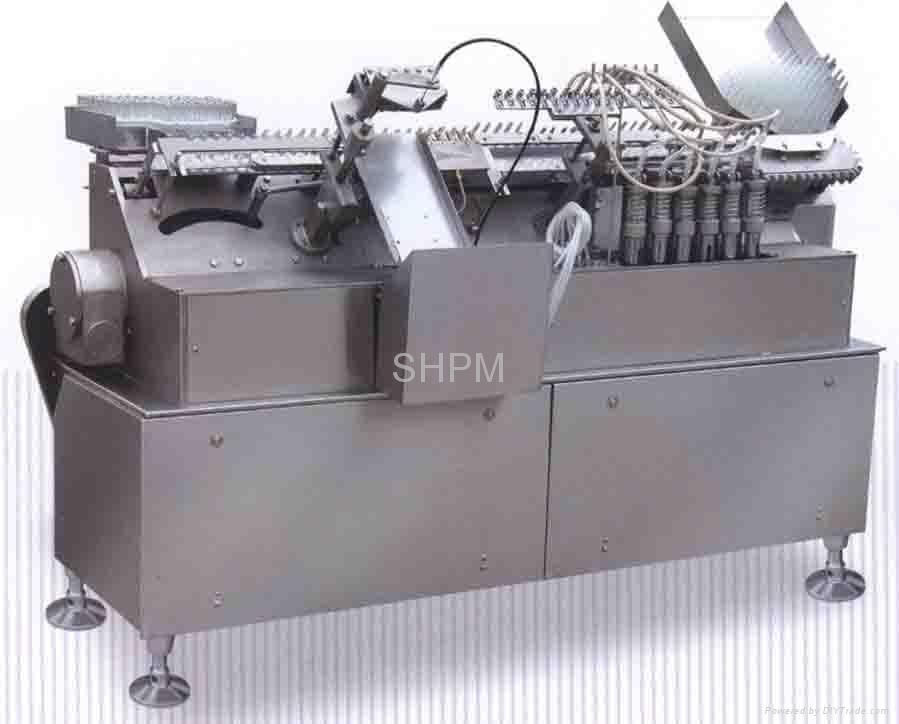

AAG6/1-20ml General Drawing Filling and Sealing Machine



Applications:

The machine is a new generation of the ampoule drawing filling and sealing combined equipment for injections. It adopts the rectangular feeding instead of the traditional ampoule feeding methods. In such case, the feeding is steady with no easy broken ampoule. A modern clutch is mouthed under the ampoule feed hopper. Therefore, the ampoule feeding can be stopped at any time while the machines is still running. So the ampoule lost can be reduced. In the part of stopping filling where changes electromagnetic switch into mechanical switch. It is reliable and durable. Bottle reverse and bottle arranging stricture are used in the device of bottle outlet. It reduces the broken rate of the finished products of ampoules tremendously.

Main Technical Specifications:

Model

AAG6/5-10

AAG6/5-20

Specification(ml)

5-10ml

5-20

Production capacity(pcs/m)

140-70

100-170

Power(kw)

0.75

0.55

Fuel consumption

Gas 3-4.5m3/h     LPG 0.08-0.1Mpa/h

Combustion-supporting consumption

Oxygen0.7MPa/h

Overall size(L*W*H) mm

1980*930*1300

1980*980*1300

Weight(kg)

500

500

Power supply

220V 50HZ
