| Model: | 2504 |
|---|---|
| Brand: | JALYN |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | lcd monitor , security monitor , LCD-TFT for car |
| Price: |
US $11.52
/ pc
|
| Min. Order: | 1 pc |
| Last Online:16 Jan, 2020 |
Main technical parameters

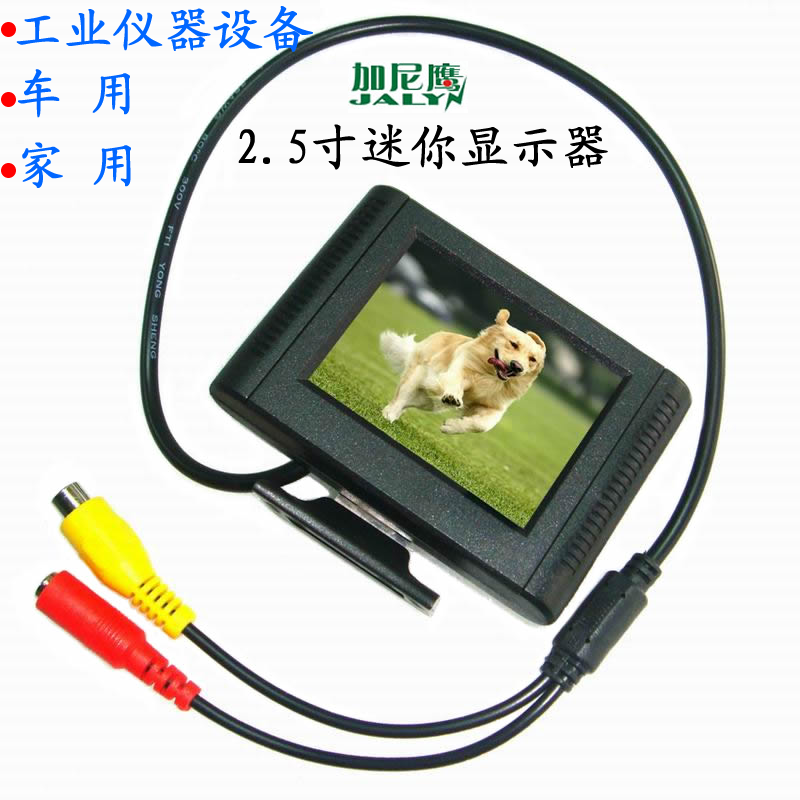

2.5-inch TFT-LCD interface: one channel video interface, lotus head interface. (2-way video optional).
One way power standard interface dc5.5 * 2.1mm. Video system: NTSC / PAL automatic switching system.
Full screen display 4:3, resolution: 320 * 240, effective display area 45.75 * 35.06 (mm).
Average brightness: 250 CD / m2, contrast: 200:1, response time: 25 ms.
Input voltage: DC 5v-30v, power consumption: ≤ 1.5W.
Appearance specification: 82.5 × 58 × 19 (mm), net weight: 100g, total weight: 130g.
Signal input: 1 channel / 2 channel RCA video input (without audio), BNC interface is optional.
Power protection: with input voltage polarity protection.
Packaging: optional
Main accessories: bracket + film + power wire.
