HLR3800-6N3D Potential Relay
Product Description
|
1 、Application
|
|
| 1) HLR3800- 6N3D potential relays are used on motor starts for air conditioner at HVAC system |
| 2) Used on larger commercial applications and air conditioning |
| 3) Also used for submersible pumps, floor cleaning and other applications requiring high starting torque for motors from 1/2Hp to about 5Hp |
|
2 、Ordering information
|
| HLR |
3800 |
- |
6 |
|
N |
3 |
D |
| relay |
serial |
bulk pack |
Coil No. |
50Hz |
Operating characteristics |
Operating Position |
Terminal configuration |
|
|
Product Feature
|
| Detailed Product Description |
• SPNC switching configurations |
| • Class B insulation system |
| • .250” QC or 8-32 screw terminals |
|
• TAB mounting or Panel mounting
|
| • Silver Cadmium Oxide contacts provide long electrical endurance. |
| • Contact Rating |
| |
35A (break only) 277 VAC,cosφ =0.5 |
| 16A (make & break) 277 VAC,cosφ =0.85 |
| • Mechanical Life Expectancy |
1,000,000 operations |
| • Electrical Life Expectancy |
250,000 cycles breaking rated load |
|
| Characteristics |
|
Part No.
|
Continuous Coil
Voltage (V)
|
Pick-up (V)
|
Drop-out (V)
Max.
|
|
Min.
|
Max.
|
|
HLR3800-7AD3D
|
168
|
140
|
153
|
45
|
|
HLR3800-5AN3D
|
395
|
262
|
290
|
140
|
|
HLR3800-2AF3D
|
332
|
171
|
184
|
90
|
|
HLR3800-5AI3D
|
395
|
204
|
233
|
130
|
|
HLR3800-4AP3D
|
420
|
300
|
328
|
121
|
|
HLR3800-6AQ3D
|
502
|
314
|
342
|
135
|
|
HLR3800-3AG3D
|
375
|
180
|
195
|
105
|
|

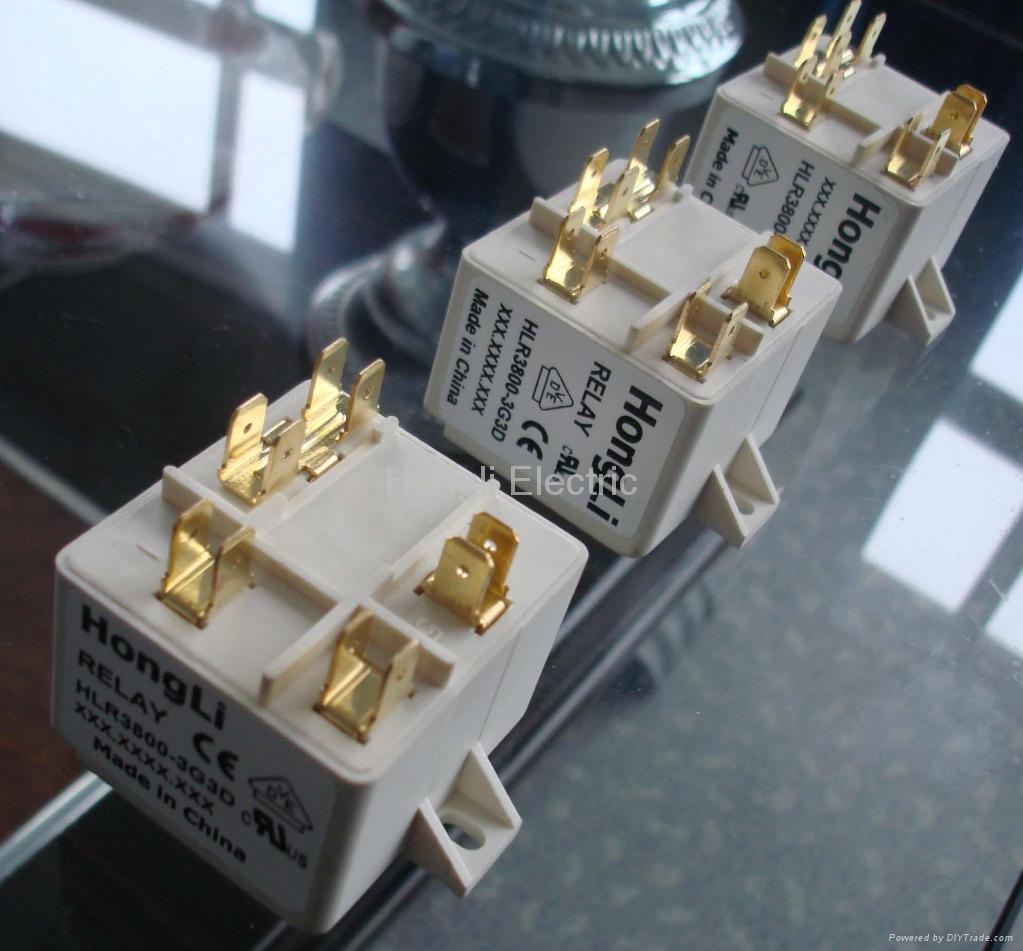

Product Image
