4-in-1 Multifunctional Hydraulic Punching Machine,SHCK80,SHCK100
Product Description
| 4-in-1 Multifunctional Hydraulic Punching Machine |
| Feature |

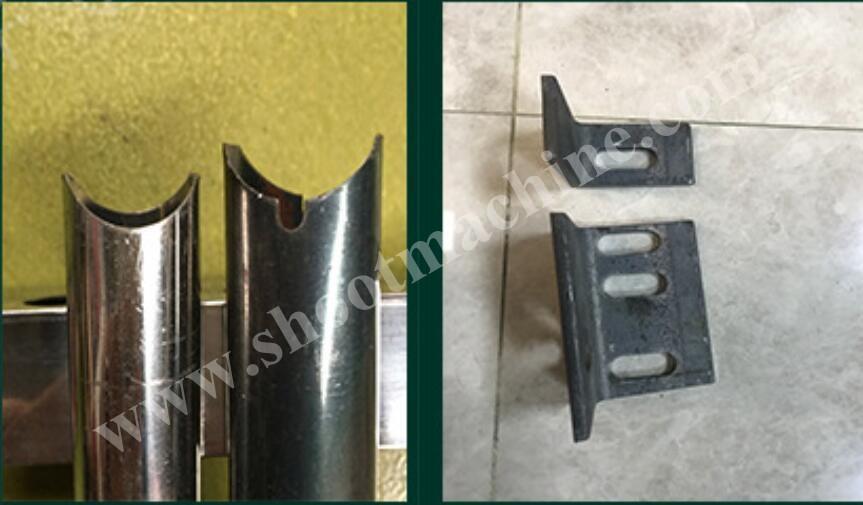

| Energy: punching, arc punching, cutting and profiling |
| Processing scope: stainless steel, aluminum alloy, channel angle steel, iron pipe, etc. |
| Processing length: 6m |
| Oil Cylinder: R80-R200 cylinder optional |
| Motor power: 3KW-22KW |
| Working voltage: 220V/380V |
| Model |
SHCK80 |
| Voltage |
220/380V |
| Motor power |
2.2/3/4KW |
| Processing thickness |
1.5-1.8mm |
| Pressure |
12T |
| Oil pump configuration |
Vane pump |
| Model |
SHCK100 |
| Voltage |
220/380V |
| Motor power |
2.2/3/4KW |
| Processing thickness |
2.0-2.8mm |
| Pressure |
20T |
| Oil pump configuration |
Vane pump |
| Model |
SHCK125 |
| Voltage |
380V |
| Motor power |
3/4KW |
| Processing thickness |
3.0-3.8mm |
| Pressure |
30T |
| Oil pump configuration |
Vane pump |
| Model |
SHCK140 |
| Voltage |
380V |
| Motor power |
5.5/7.5KW |
| Processing thickness |
4.0-4.8mm |
| Pressure |
40T |
| Oil pump configuration |
Vane pump |
| Model |
SHCK160 |
| Voltage |
380V |
| Motor power |
5.5/7.5KW |
| Processing thickness |
5.0-5.8mm |
| Pressure |
50T |
| Oil pump configuration |
Vane pump |
| Model |
SHCK180 |
| Voltage |
380V |
| Motor power |
7.5/11KW |
| Processing thickness |
6.0-7.0mm |
| Pressure |
65T |
| Oil pump configuration |
Plunger pump |
| Model |
SHCK200 |
| Voltage |
380V |
| Motor power |
11/22KW |
| Processing thickness |
8.0-8.8mm |
| Pressure |
80T |
| Oil pump configuration |
Plunger pump |
| Model |
SHCK220 |
| Voltage |
380V |
| Motor power |
11/22KW |
| Processing thickness |
9.0-10mm |
| Pressure |
100T |
| Oil pump configuration |
Plunger pump |
| Model |
SHCK250 |
| Voltage |
380V |
| Motor power |
22KW |
| Processing thickness |
11-12mm |
| Pressure |
120T |
| Oil pump configuration |
Plunger pump |
| Note: |
| Machine cylinder position parameters can be customized, such as (C-type machine, horizontal machine, combination machine), etc |
Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
Img 6
Img 7
Img 8
Img 9
Img 10
Img 11
Img 12
