cnc marble granite metal cnc engraving and cutting machine
Product Description
Metal engraving and cutting
3D process
XYZ square linder, more stable
|
Modle
|
JD6060
|
|
Machine body
|
Cast iron or cast aluminum
|
|
Work dimensions
|
600×600mm
|
|
Body dimensions
|
800×800×1200mm
|
|
Z-zxis working area
|
100mm
|
|
Max.Feeding height
|
600*600mm
|
|
Cut thickness of material
|
≤30mm
|
|
Max.Speed
|
6000mm/min
|
|
Working speed
|
0-4000mm/min
|
|
Mechanical precision
|
0.01mm
|
|
Software
|
Artcut,TYPE3,ARTCAM
|
|
Max.Powwer consumption
|
1800W
|
|
Power source
|
AC 220V/50Hz
|
|
Driver type
|
stepper motor
|
|
Spindle
|
1500W water cooled motor
|
|
Spindle speed
|
0-24,000rpm
|
|
Blade diameter
|
1-6mm
|
|
Control system
|
Ncstudio(computer control) or DSP
|
|
Command
|
HPGL.G code,u00,mmg,plt
|
Main application profession:The engraving machines are professionally used to engrave iron,steel,aluminum and bronze board and so on hard material.The machine can engrave letters and relief designs.
Performance:
Ø Matches with the German double nut and ball bearing guide screw.
Ø Adopts straight line guide rail. The load-bearing surface with straight line guide rail is a surface contact and the life is 2200 times longer than ordinary rails. Its precision keeps high even with long time use.
Ø Uses high speed drive motor. Its speed is enhanced nearly 2 meters higher than original type.
Ø X axis uses the popular dustproof structure, which guarantee long-term performance characteristic.
Ø Memory to insure the processing point when the blade is broken or postpone situation.
Ø With good compatibility. This machine can work with many programs, such as Type3/artcarm/castmate/proe/Corelerow/CAD/CAM. The machine can do fine relief, 2D and 3D products.
Ø Big power water cooled frequency spindle motor,which can ensure to work on hard material.

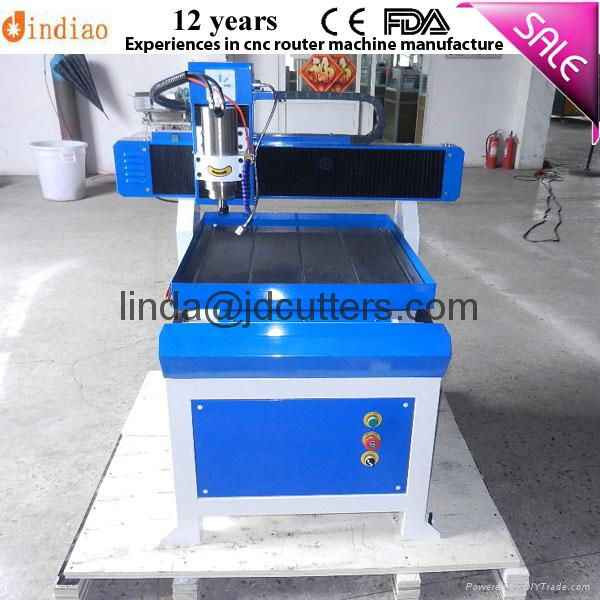

Product Image
