Border Razor Fencing CW-09
Product Description
| Specifications: | Standard mesh Aperture: 75*12.5mm
Wire Diameter: 4mm
Barbed Razor wire: 4mm
we can design and manufacture different types of wlld wire mesh to suit different degree of security needs or even other products with the following criterias:
Mesh Aperture: line wire 50-300mm, cross wire 12.5-300mm
Wire diameter: 3.0 - 6.0mm
The panel size will depend on the designed aperture. |
| Advantages: | The main properties and features are:
Anti-climb Feature;
High Structural Stength;
Resistant To Cutting by handtools;
Maintenance Free;
High Visibility.
|
| Export Markets: | prisons, border fences, boundary fencing for military sites, secure compounds, educational establishments and recreation facilities. |
| custom_attr9: | Razor Blade Specification:
Reference
Number |
Blade Style |
Thickness |
Wire Dia |
Barb
Length |
Barb Width |
Bard Spacing |
BTO_12 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
13±1 |
26±1 |
BTO_18 |
|
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO_28 |
|
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
BTO_22 |
|
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO_65 |
|
0.5±0.05 |
2.5±0.1 |
65±1 |
21±1 |
100±2 |
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.
Barbed Tape Wire Specification:
Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
8m |
CBT_65 |
Single coil |
500mm |
41 |
10m |
CBT_65 |
Single coil |
700mm |
41 |
10m |
CBT_65 |
Single coil |
960mm |
53 |
13m |
CBT_65 |
Single coil |
450mm |
112 |
17m |
BTO_12.15.20.22 |
Cross type |
500mm |
102 |
16m |
BTO_12.15.20.22 |
Cross type |
600mm |
86 |
14m |
BTO_12.15.20.22 |
Cross type |
700mm |
72 |
12m |
BTO_12.15.20.22 |
Cross type |
800mm |
64 |
10m |
BTO_12.15.20.22 |
Cross type |
960mm |
52 |
9m |
BTO_12.15.20.22 |
Cross type |
Notes:
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.
|
| |

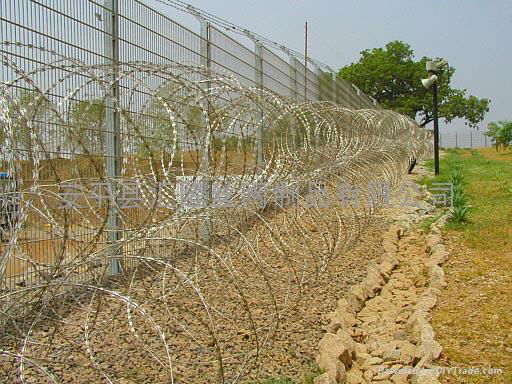

Product Image
