| Model: | PM-1828UVE |
|---|---|
| Brand: | KC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | UV exposure machine , UV exposure unit , UV making plate mach |
| Price: |
US $100
/ pic
|
| Min. Order: | 1 pic |
| Last Online:24 Dec, 2024 |

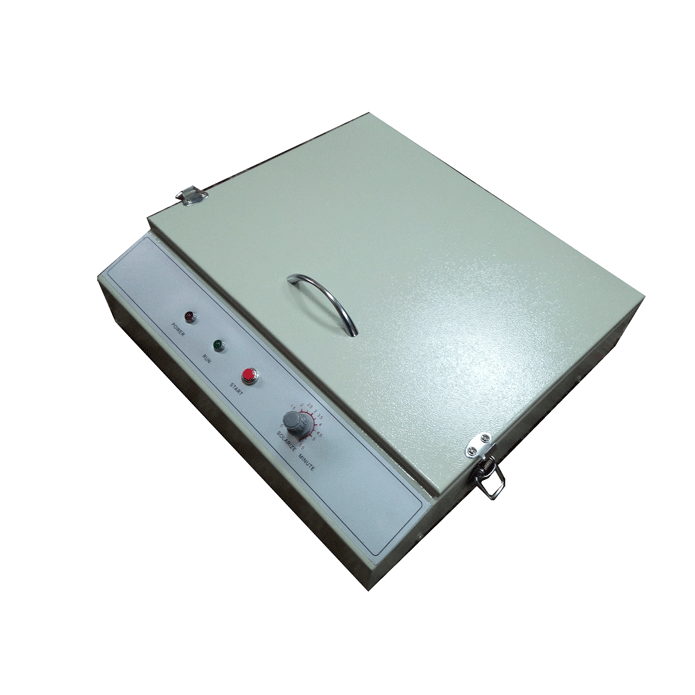

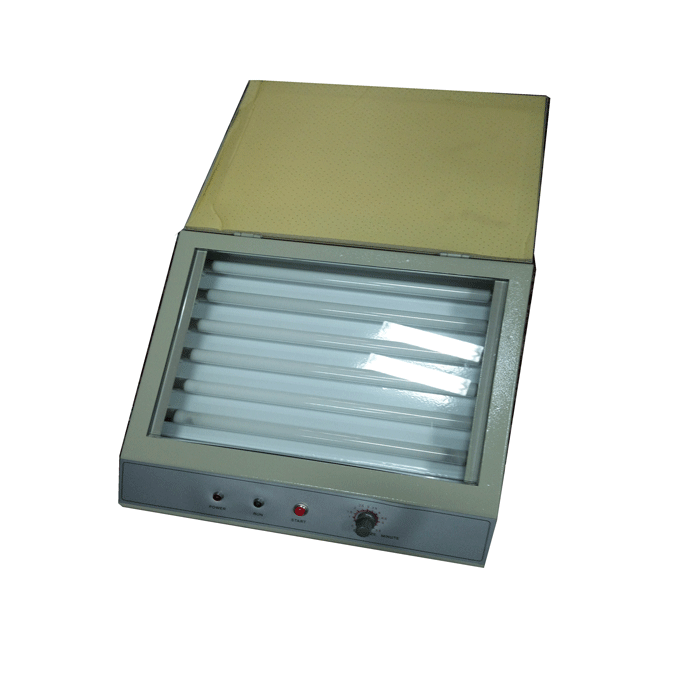

| PM-1828UVE UV Exposure Machine | |
| Working table type | 10mm High transmittance Glass |
| Lamp cover | Stainless steel reflection cover, automatically door |
| Max Exposure Area | 180*280mm |
| Lamp wattage | 220V, 15W*4 |
| Lamp Distance | 30mm |
| Plate type | Pad plate, ZN-Plate, Cooperplate, Polymer plate |
Application︰
A low cost and convenient exposure unit for pad stencil exposure. Eeposure area is 180×280mm; It can be applied for thick steel plate, thin steel plate and photo-polymer plate image .It is not suitable for exposuring on screen plate because there is no vacuum device and rubber clothes; The built-in digital timer provides excellent exposure timing control.
Successful case︰
1. Agentura UHAL (Slovakia).
2. Precision advertising (Ghana)
3. Siva co( Canada)
4. Feroussis elis & go oe..(Greece)
5. Bandarest Co( Saudi Arabia)
6. Popples international (Nigeria)
7. Sepic sarl( Tunisie)
8. Publicro SRL (Romania)
9. Irrico international ltd (Kenya).
10.A Media( New Zealand)
11. Makedonas Prinitng (Greece)
12. Rigba International ( Usa)
13. AL-rimal food stuff industries (U.A.E)
14. IPT (Czech /20101206)
15. Kasi servis ( Slovakia 20110125)
Specifications︰
1. Exposure area: 180×280
2. Dimension: 600×350×200
3. Weight: 12kg
4. Lamp wattage: 15w×4
5. Lamp power: 60w/cm.
Advantages︰
1. Small bulk and low price;
2. Fit exposure for pad plate.
3. Light weight and easy to take.
Package List︰
Package dimension：660×360×300MM;
Gross weight: 15KG
| Application: | The printing plate for pad printing is small in size and can be exposed with a special small-sized plate exposure machine. The steel plate coated with photosensitive glue can be attached to the film for exposure, and then developed, washed and corroded. The plate exposure machine for pad printing and the plate exposure machine for screen printing have the same principle. They both use the photosensitive glue to cross-link and solidify under ultraviolet light, thereby covering the steel plate to prevent corrosion. The photosensitive glue in the area not exposed to ultraviolet light will be washed away by water and corroded by acid. The plate exposure machine for pad printing does not need to install a high-power gallium iodine lamp, but uses a fluorescent lamp with moderate ultraviolet content, which will also save costs. |
|---|---|
