AUTOMATIC FEEDING PRECISE HYDRAULIC FOUR-COLUMNPLANE CUTTING MACHINE

Model:XCLP3—400/2000
Brand:CHANGXING
Origin:Made In China
Category:Industrial Supplies / Leather Processs Machinery
Label:CUTTING MACHINE
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Use and Characteristics
1、 The machine is applicable for whole-broken or semi-briken operation of various nonmetal slices materials by dir cutter. For example: such industries as plastics packing,pearl cotton packaging,rubber etc.
2、 Microcomputer controlled,with simple, promptand accurate operation.
3、 The main machine adopts double oil cylinder,double-crank connecting rod balancing,four-columm precise guiding mechanism,which can guarantee that the cutting depth at every cutting position is same.
4、 The pressing board carries out slow cutting when it presses downward to contact the die cutter,which can make that there is no size error between the uppernost layer and lowermost layer of cut materials
5、 The central oil supply sutomatic lubricating system guarantees the service life and precision of machine.
6、 Single-side or double-side sutomatic feeding system can be allocated to enhance the production efficiency of machine twice ot thrice.
7、 Cutting board micro-movement drvice can be allocated to evenly consume the cutting board and save cost.
8、 Die cutter pneumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt.

Optional:   1.Single-side or double-side sutomatic feeding systems
          2.Cutting board micro-movement drvice
          3.Die cutter pneumatic clamp device


Technical specitication

Maximum cutting force
XCLP2-40T
XCLP2-50T
XCLP2-60T
XCLP2-80T
XCLP2-100T
XCLP2-150T
XCLP2-200T

Distance from upper pressing board to worktable
50-150mm
50-200mm
50-200mm
50-200mm
50-200mm
50-200mm
50-200mm

Cutting area
1600×610mm
1400×610mm

1600×730mm
1400×730mm

1600×730mm
1400×730mm

1600×800mm
1400×800mm

1600×900mm
1400×900mm

1600×1000mm
1400×1000mm

1600×1000mm
1400×1000mm


Main motor power
3KW
4KW
5.5KW
7.5KW
7.5KW
11KW
11KW

Machine weight
3000Kg
3700Kg
5000Kg
6000Kg
7600Kg
9200Kg
11200Kg


Embed HTML Code:

Product Image

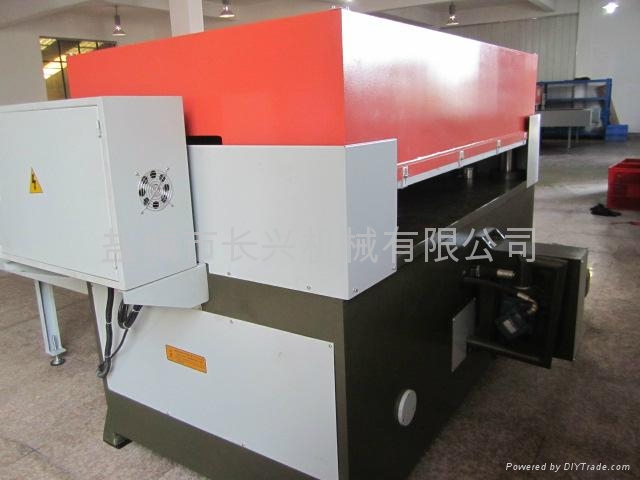

AUTOMATIC FEEDING PRECISE HYDRAULIC FOUR-COLUMNPLANE CUTTING MACHINE 1
Img 1

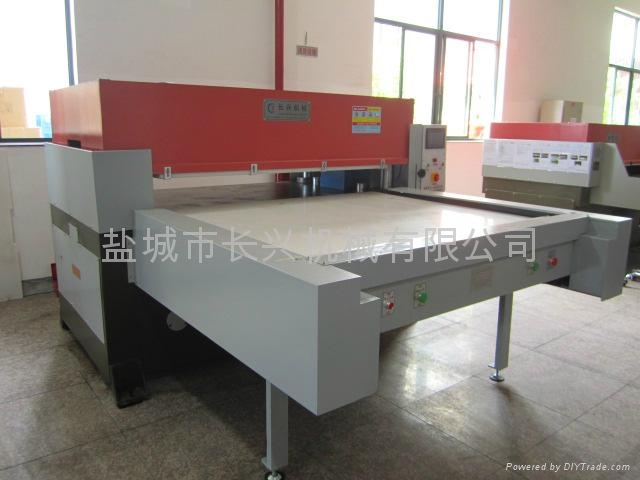

AUTOMATIC FEEDING PRECISE HYDRAULIC FOUR-COLUMNPLANE CUTTING MACHINE 2
Img 2

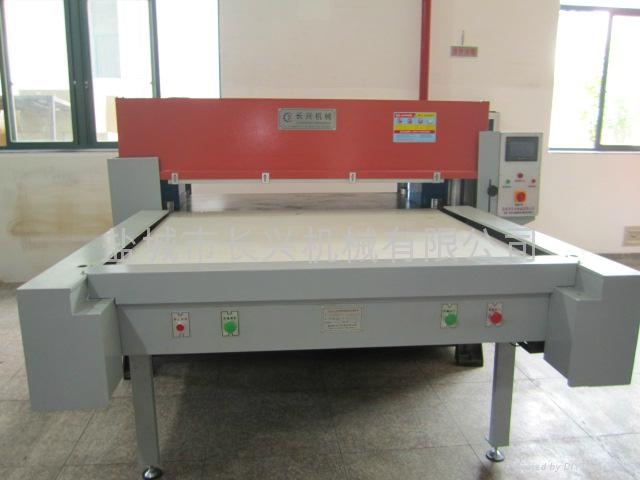

AUTOMATIC FEEDING PRECISE HYDRAULIC FOUR-COLUMNPLANE CUTTING MACHINE 3
