| Model: | FT-400K |
|---|---|
| Brand: | FOMTEC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Rubber & Plastics Machine |
| Label: | vertical injection , injection molding , plastic injection |
| Price: |
-
|
| Min. Order: | 1 set |
| Last Online:10 Apr, 2024 |
Feature:

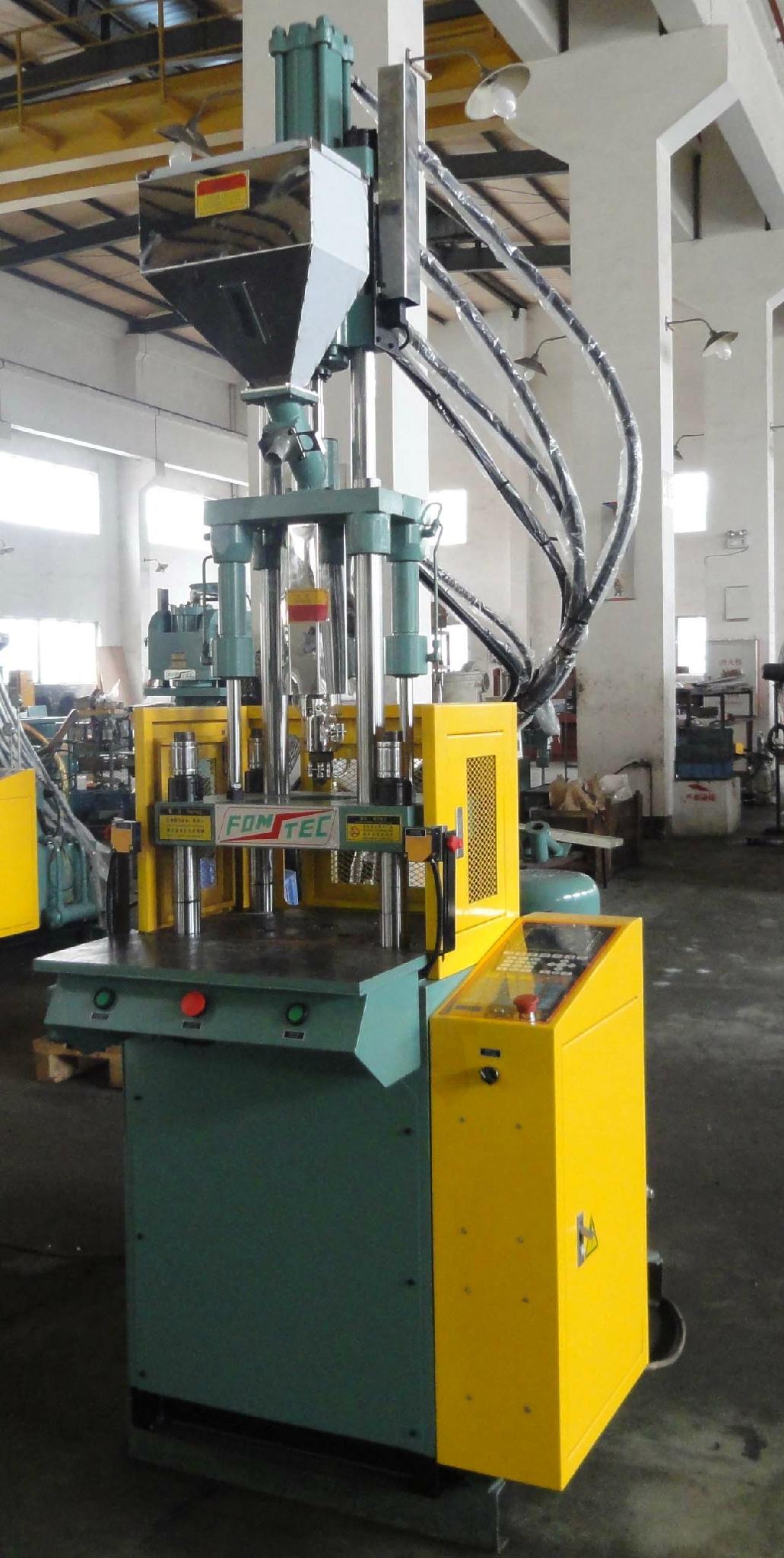

1 vertical injection and clamping
2 User-friendly computer control
3 Multi pressure and speed setting
4 Proportional flow and pressure design

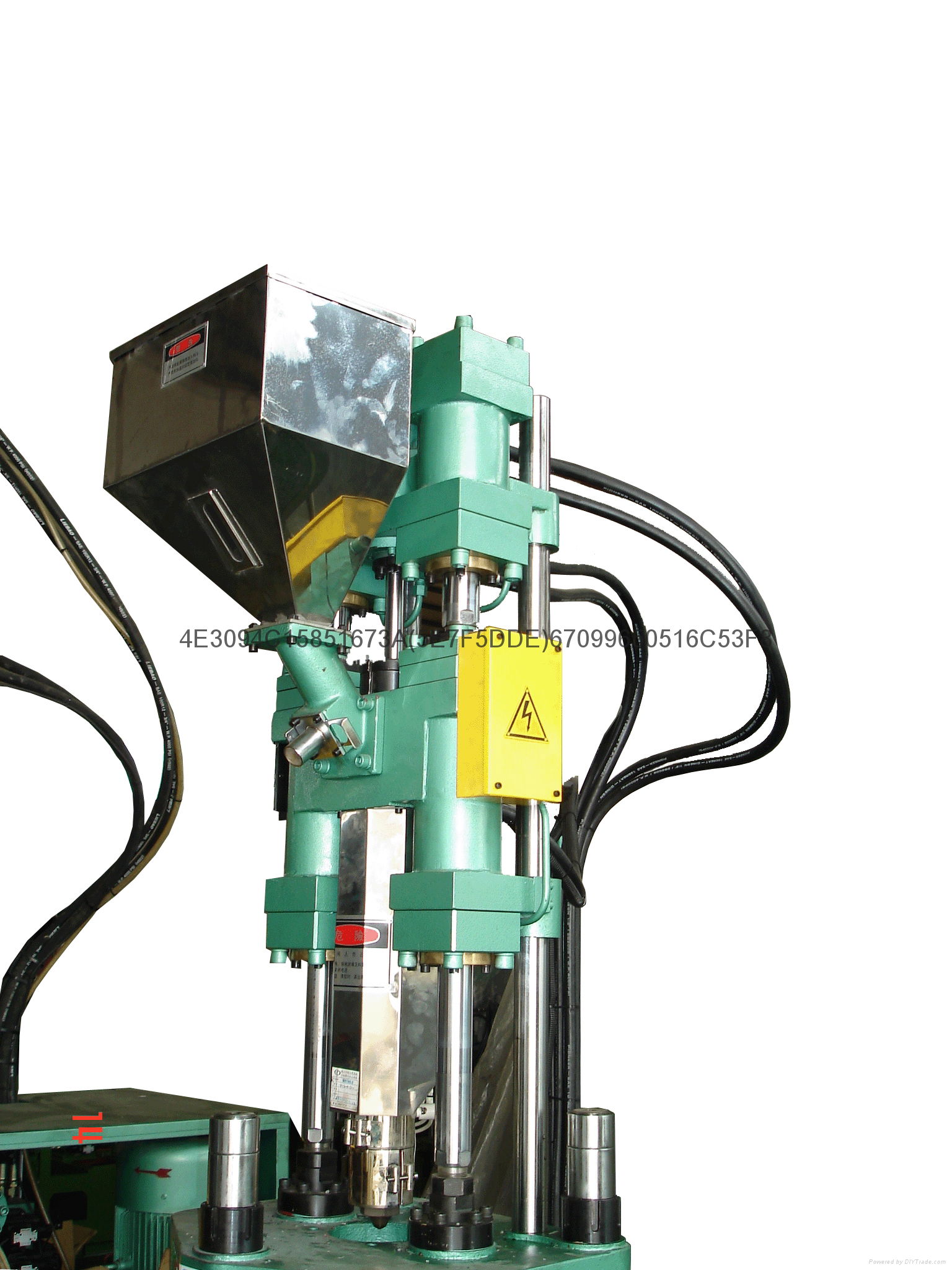

5 Double injection carriage design
6 Oil-less bushings used on all moving parts
Specification:
| DESCRIPTION | UNIT | FT-400 | |||
INJECTION UNIT |
Screw Diameter | mm | φ28 | φ32 | φ36 |
| Maximum Injection Pressure | kg/cm2 | 2000 | 1531 | 1210 | |
| Theoretical Shot Volume | cm3 | 74 | 97 | 122 | |
| Maximum Shot Weight(PS) | g(oz) | 68(2.4) | 89(3.1) | 113(4.0) | |
| Injection Rate | cm3/sec | 42 | 55 | 70 | |
CLAMPING UNIT |
Clamping Force | ton | 40 | ||
| Top Platen Size | mm | 550×395 | |||
| Bottom Platen Size | mm | 590×435 | |||
| Mold Size | mm | 410×255 | |||
| Minimum Mold Thickness | mm | 150/250 | |||
| Opening Stroke | mm | 200 | |||
| Open Daylight | mm | 350/450 | |||
| Ejector Force | ton | 1.3 | |||
| Ejector Stroke | mm | 35 | |||
OTHERS |
Hydraulic System Pressure | kg/cm2 | 140 | ||
| Oil Tank Volume | L | 195 | |||
| Electric Power | hp(kW) | 7.5(5.5) | |||
| Barrel Heating Power | kW | 3.6 | |||
| Total Wattage | kW | 9.1 | |||
| Machine Dimensions(approx.) | m | 1.8×1.0×2.4 | |||
| Machine Weight(approx.) | t | 1.4 | |||
PRODUCT PACKAGING
Warranty:
1. Twelve months on spare parts(excluding the wearing parts) for the whole machine form date of installation. Buyer should bear the freight charges on replacement of spare parts
2. Engineer is available for overseas after sale machine service if buyer will cover the round trip air ticket, accommodation and transportation, and USD150.00/ day/ person for technical service fee.
3. On time online support to technical problem solution.
