UN1 Series Flash Butt Welding Machine

Model:UN1-50KVA
Brand:-
Origin:Made In China
Category:Industrial Supplies / Machinery / Welding Machinery
Label:Welding Machine , Series Flash Butt We
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

BLUEFLAME INDUSTRIES LIMITED

Free MemberGuang Dong - China
Last Online:09 Dec, 2024

Product Description

The Main Principle of Resistance Butt Welder and Main Advantages:

1.AC Resistance Butt Welding is the welding method that the end surfaces of two parts are pressed tightly,and the resistance heat is used to heat up the surfaces to the plasticized status,then the upsetting force quickly press them together more tight again or without applying the upsetting force pressure,just only hold on the welding pressure to complete the welding.

2.Compared to Flash Butt Welding,Resistance Welding is much easily to for worker use and operate,the cost is much lower,welding productivity is also higher.

3.The welded joint is smooth.and the welding burrs are small.

4. The structure is designed compactly which is very easily to be adjusted to weld different parts. The special butt welding control circuits ensure the welding quality.

5. Mainly used for butt welding various metal material with welding section area less than 250mm,such as iron,wires,pipes,etc.



Main Technical Parameter:

Parameter

Rated Capacity

Rated Input Voltage

Rated Freque

ncy

Max Short Curre

nt

Rated

Duty

Cycle

Max Clamp

ing Force

Max Upse

tting Force

Cooling Water Requir

ed

Over

Dimensi

ons L*W

*H

Average Weight

Model No.

UN1-25

25KVA

380V

50/60

Hz

11000A

50%

3900N

1500N

150L/H

90*80*

120CM

300Kg

UN1-35

35KVA

380V

50/60

Hz

15000A

50%

3900N

1500N

150L/H

90*80*

120CM

350Kg

UN1-50

50KVA

380V

50/60

Hz

19000A

50%

3900N

1500N

150L/H

90*80*

120CM

400Kg

UN1-75

75KVA

380V

50/60

Hz

23500A

50%

6100N

2500N

200L/H

90*80*

120CM

450Kg

UN1-100

100KVA

380V

50/60

Hz

26000A

50%

6100N

2500N

200L/H

90*80*

120CM

500Kg

UN1-150

150KVA

380V

50/60

Hz

31000A

50%

8000N

3900N

300L/H

135*80*

160CM

550Kg

UN1-200

200KVA

380V

50/60

Hz

35000A

50%

8000N

3900N

300L/H

135*80*

160CM

650Kg




Product Image

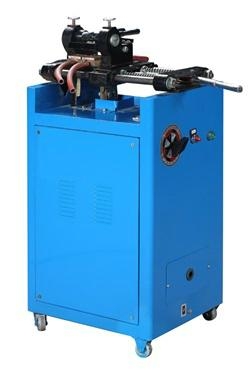

UN1 Series Flash Butt Welding Machine 1
Img 1
UN1 Series Flash Butt Welding Machine 2
Img 2
UN1 Series Flash Butt Welding Machine 3
Img 3
