wire/cable/pipe Concave-convex detection

Model:LY-0503D
Brand:TAKANO LY-1003D
Origin:Made In Japan
Category:Electronics & Electricity / Electronic Instrument / Optical Lens & Instrument
Label:wire/cable/pipe
Price: -
Min. Order:-
Inquire Now

Member Information

Detail

dong guan ke yang electronic co.,ltd

Biz MemberGuang Dong - China
Last Online:22 Dec, 2024

Product Description

TAKANO China's only authorized agents

Specification
Direction of detection:        3 direction
Range of measurement diameter:Φ0.02mm~Φ5mm
Detection slit:          Double slit type
Source of light:           Near-infrared radiation light emitting diode(LED)
Range of detection sensitivity:   0.02mm~0.999mm
range of set level:                         0.01mm~0.999mm
Detection accuracy:      Within ±1% of the maximum set value
Line swinging tolerance:    Horizontal direction ±0.01mm
                 Vertical  direction ±0.01mm
Line speed:         5m/min~1500m/min
Response:           15Hz~30KHz
Alarm output:          Concave-convex output,Red lap lighting and relay
                                                              point of contact output,Output  time about 0.1sec .
                          AC250V  2A Resistance load
Operating temperature:      -5℃~50℃(However, there must not be dewy. )
Power:                            ±15V(Within±5%)
Externals size::             W150mm×H142mm×L40mm

Product Image

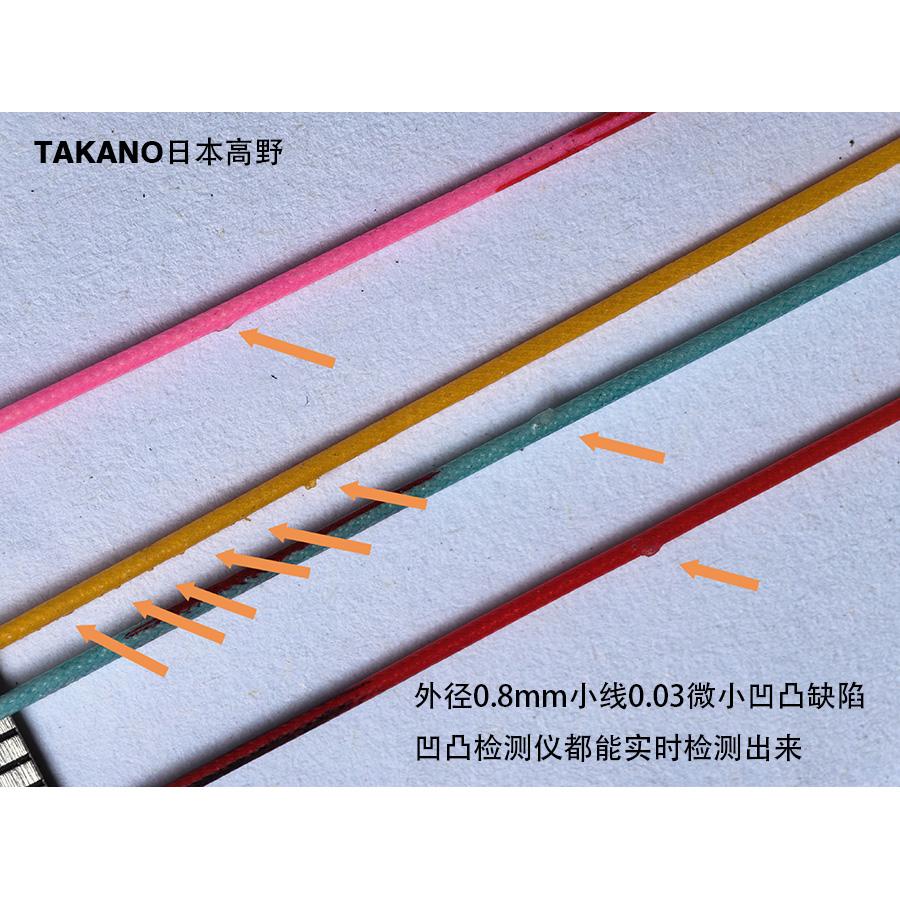

wire/cable/pipe Concave-convex detection 1
Img 1
wire/cable/pipe Concave-convex detection 2
Img 2
wire/cable/pipe Concave-convex detection 3
Img 3
wire/cable/pipe Concave-convex detection 4
Img 4
