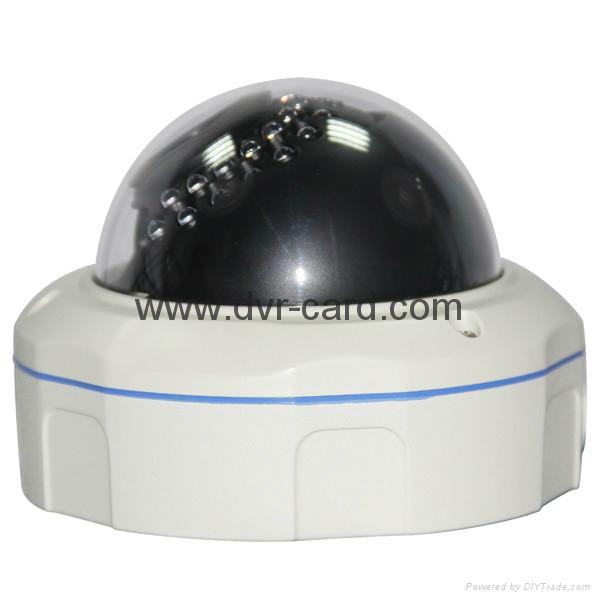

1 Megapixel Mini IR Waterproof IP Dome Camera
Product Description
| Features: |
| > 1/2.5" Progressive Scan Sony MX 122 CMOS |
| > H.264 & MJPEG dual-stream encoding |
| > Max 25/30fps@1080P(1920×1080) |
| > Day/Night(ICR), 2DNR, AWB, AGC, BLC |
| > Multiple network monitoring: Web viewer, CMS |
| > 3.6 mm fixed Lens (6 mm optional) |
| > Max. IR LEDs length 10 m |
| > IP66,PoE 802.3af (optional) |
| Model |
SVR-DA5A |
| Camera |
| Image Sensor |
1/2.5" Progressive Scan Sony MX 122 CMOS |
| Effective Pixels |
1920(H)×1080(V) |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual, 1/3~1/10000s |
| Min. Illumination |
Color: 0. 1Lux, B/W: 0.003Lux ; 0Lux(IR on) |
| S/N Ratio |
>50dB |
| Camera Features |
| Max. IR LEDs Length |
Φ5 30pcs IR Leds, 15m IR Range |
| Day/Night |
Auto(ICR) / Color / B/W |
| Backlight Compensation |
BLC |
| White Balance |
Auto |
| Gain Control |
Auto/Manual |
| Noise Reduction |
2D |
| Privacy Masking |
N/A |
| Lens |
| Focal Length |
3.6 mm (6 mm for optional) |
| Max Aperture |
F1.4 |
| Angle of View |
75.7° |
| Mount Type |
MTV mount (Interchangeable Lens) |
| Video |
| Compression |
H.264 / MJPEG |
| Frame Rate |
Main Stream |
1920*1080 25fps |
| Sub Stream |
VGA 640*360 25FPS |
| Bit Rate |
128Kbps～8Mbps,Supports CBR/VBR |
| Network |
| Ethernet |
RJ-45 (10/100Base-T) |
| Protocol |
TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , NTP , PPPOE , SMTP , UPNP |
| ONVIF |
ONVIF Ver. 2.0 |
| Max. User Access |
10 users |
| Smart Phone |
iPhone, iPad, Android |
| Auxiliary Interface |
| Memory Slot |
TF Card slot for optional, upto 32G |
| General |
| Power Supply |
DC12V, PoE 802.3af (optional) |
| Power Consumption |
<6W |
| Working Environment |
-10°C~+60°C, 10%~90% |
| Ingress Protection |
IP66 |
| Dimension |
80 mm (H) * Φ100 mm |
| Weight |
0.35 KG |
| Package Dimension |
190*145*100 mm |
| Package Weight |
0.65 KG |
| Approvals |
CE FCC RoHS |
| Price Terms: | FOB shenzhen |
| Payment Terms: | TT |
| |
