| Model: | MX 234 |
|---|---|
| Brand: | M-Star |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Heaters |
| Label: | quartz tube , Infrared heating , heating tube |
| Price: |
US $40
/ KG
|
| Min. Order: | 1 KG |
| Last Online:15 May, 2020 |
Product Description
Sizes and technical requirements determined by the customer, we guarantee the quality of the product!

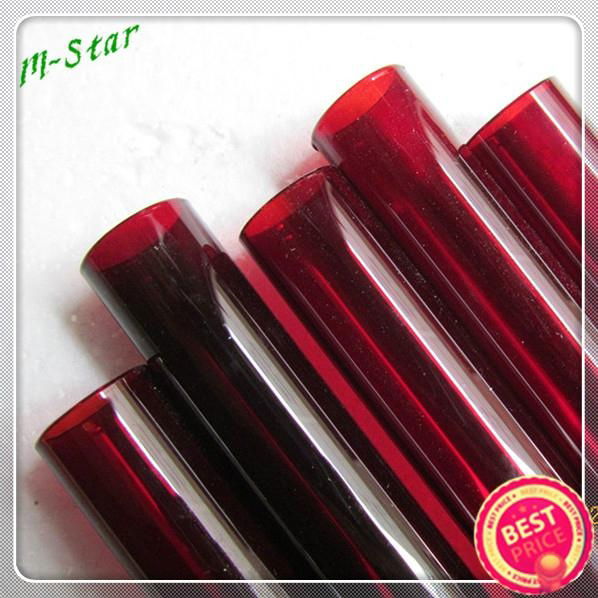

Infrared heating Red quartz tube several trace elements are added to reach the cut-off portion of the entire UV and visible results and to get full use of infrared products are pink, burgundy and black and red three colors to choose Application: used in far-infrared heating areas: such as: heater, disinfecting cabinet, microwave, all kinds of electric heating stove, electric oven, surface drying, automobile paint, etc.
Product Photos
Dimensional Tolerance
|
Range of OD |
OD |
WT |
Siding |
Ellipsticity |
Camber/1220mm |
|
≤5mm |
±2.0% |
±10% |
12% |
2.0% |
2.5mm |
|
6-15mm |
±1.25% |
±8% |
10% |
1.5% |
2.5mm |
|
15-20mm |
±1.25% |
±10% |
15% |
1.5% |
2.5mm |
|
20-25mm |
±1.25% |
±10% |
15% |
1.5% |
3.0mm |
|
25-30mm |
±1.35% |
±12% |
15% |
1.5% |
3.0mm |
|
30-80mm |
±1.5% |
±14% |
15% |
2.0% |
3.0mm |
|
80-300mm |
±1.5% |
±14% |
15% |
2.0% |
3.0mm |
Technical Date
|
Purity |
SiO2:99.95-99.99% |
|
Mohs hardness |
7 |
|
Density |
2.21 g/cm3 |
|
Annealing Poin |
1215℃ |
|
Softening Point |
1683℃ |
|
Maximum continuous operating temperature |
1100℃ |
|
Maximum short-term working temperature |
1300℃ |
|
Visible light transmittance |
85-92% |
Factory Show
Our Services
1.Factory direct sale
2. Industry and trade integration business
3.More than 15 years experience
4.Customize size are welcome,OEM,ODM acceptable
5. Fast,accurate quotes
6.The best price with good quality
7. We offer a good after-sales service
8.Payment: T/T,Western Union,L/C
Packaging & Shipping
Friendly shipment Cooperative Partner
Quartz glass is the manufacture of special industrial technology with silica glass, is a very good base material. Quartz glass has an excellent range of physical and chemical properties. Such as:
1, high-temperature. Quartz glass softening point temperature of about 1730 degree Celsius, 1100 degree Celsius under long-term, short-term maximum temperature up to 1450 degree Celsius.
2.the corrosion-resistant. In addition to hydrofluoric acid, the quartz glass is almost not react with other acids and its acid capacity is 30 times the stainless steel of the ceramic 150. Especially in the chemical stability at high temperatures, is unmatched by any other engineering materials.
3, good thermal stability. A very small coefficient of thermal expansion of the quartz glass, and be able to withstand severe temperature changes, the quartz glass is heated to about 1100 degree Celsius, placed in water at room temperature and will not burst.
4, the light transmission properties. The quartz glass have good light transmission properties in the infrared spectral band, in the ultraviolet to visible light transmittance at 93% or more, particularly in the UV spectral region, the maximum transmittance of up to 80% or more.
5, good electrical insulation properties. Equivalent to one million times that of ordinary glass, the resistance value of the quartz glass is an excellent electrical insulating material also has good electrical properties, even at high temperatures.
| Payment Terms: | TT,Western Union |
|---|---|
