| Model: | BH321-3 |
|---|---|
| Brand: | BLOSSOM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Battery, Storage Battery & Charger |
| Label: | 2xaa battery case , 2aa battery holder , 2 aa cell box |
| Price: |
-
|
| Min. Order: | 1000 pc |
| Last Online:18 Sep, 2024 |

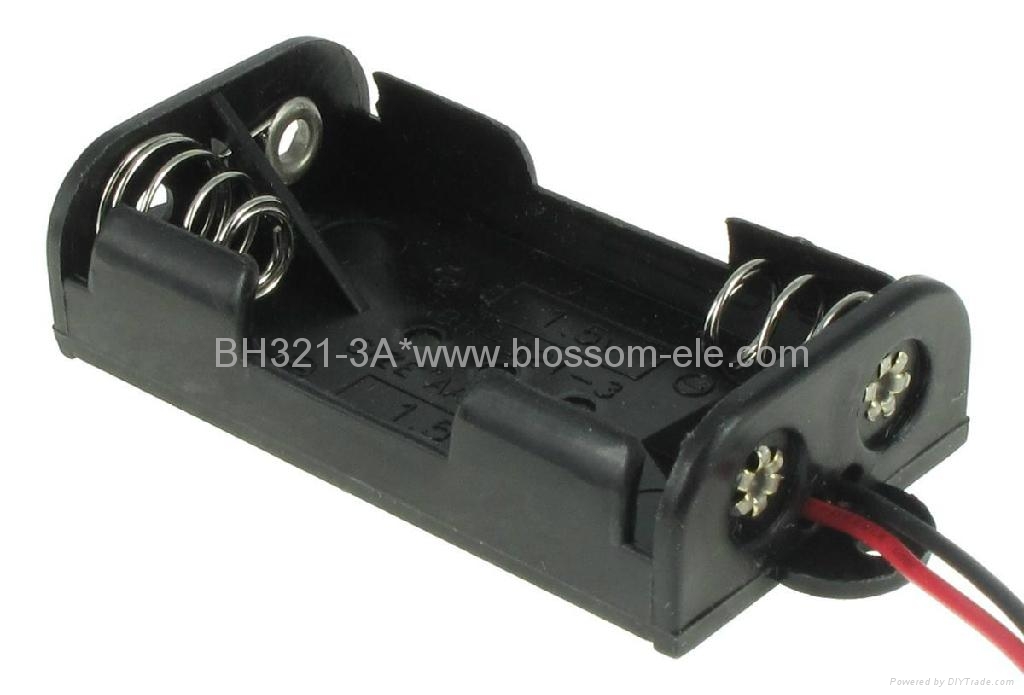

BH321-3-"Two AA Battery Holder"
Specifications:
Size:79x32x16mm
Plastic material - polypropylene
Flammability Rating-UL94 HB, UL File No. E216959
Temperature Range: -10°C to +100°C
Springs - nickel plated spring steel
Wire - 152.4 mm Long 26 AWG, UL1007, CSA - TR-64, 300V, 80° C.
Rivets - Brass, nickel plated
9 Volts Snaps - Brass, nickel plated
Contact Resistance: Under 50m for +/- contacts per EIA-540J000
ROHS COMPLIANT
1. Our battery holders carry patents for terminal rivet construction, crimped, and polarity protection.
2. OEM orders are accepted.
3. A range of battery holders to suit the standard range of CR2032, 9V, AG13, N, AAA, 1/2AA, CR123A, AA, C and D size batteries.
The explanation of numbers of battery holders:
A: With lead wires 150mm
Strip & Tin: 5mm+/- 1mm
B: With 4Prong or 6Prong snap terminal
D: With TAG(Solder Lugs) Terminal
P: With Pin(PC Mounted)
T: Terminal
S: Slide Switch ON-OFF
| Payment Terms: | T/T |
|---|---|
