| Model: | BTB-400 |
|---|---|
| Brand: | Yongxin |
| Origin: | Made In China |
| Category: | Industrial Supplies / Pharmaceutic Machine |
| Label: | Pharmaceutical , packaging machine , packing machinery |
| Price: |
US $21500
/ set
|
| Min. Order: | 1 set |
| Last Online:09 Oct, 2017 |
Uses:

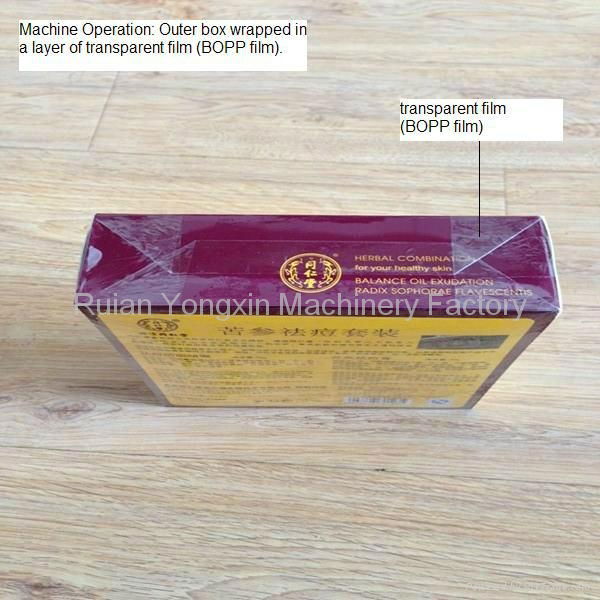

This pharmaceutical packing machine is widely applicable to packaging various single large boxed articles with a gold tear tape for easy opening, such as medicine, health products, foodstuff, cosmetics, stationery ,and audiovisual products, or collective film wrapping of multi-piece boxes.
Performance Characteristics:

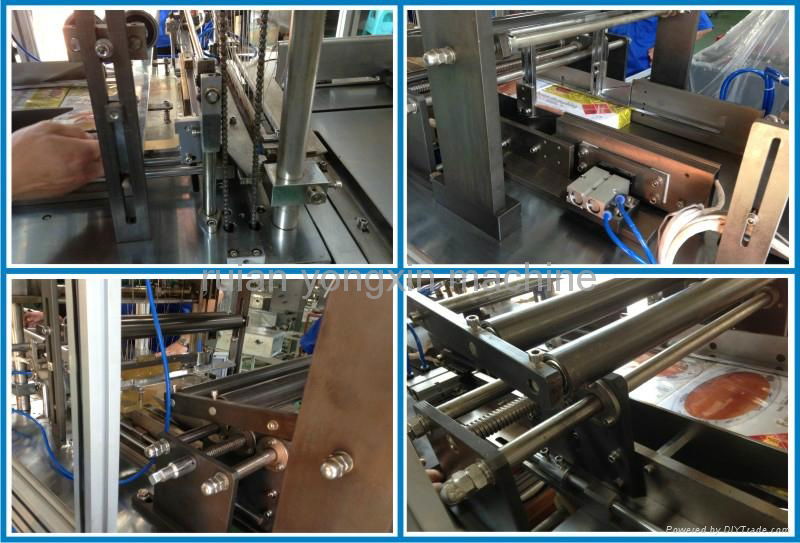

The machine is driven by a series of internal cams driving various floating links and parts. It adopts multifunctional digital display transducer, stepless speed adjusting, PLC+hunan machine interface control system ,automatic boxes feeding and counting, film pneumatic falling. The machine can be combined with other production lines.
Main Technical Parameters:
|
Packing Material |
BOPP film with a gold tear tape |
|
Packing Speed |
25~40 packs/minute |
|
Packing Size |
(L)300X(W)200X(H)100 mm |
|
Electric Supply & Power |
220V 50Hz 5.5kw |
| Weight | 800kgs |
|
Overall Dimensions |
(L)2400X(W)1200X(H)1800m |
| Payment Terms: | T/T, 30% deposit before production, 70% balance before delivery. |
|---|---|
| Packing: | standar export wooden case |
