BWY-802(803) oil surface thermometer

Model:BWY-802/803
Brand:LD
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Thermometers
Label:BWY-802 oil surface , BWY-803 oil surface , BWR-806 winding ther
Price: -
Min. Order:-
Inquire Now

Member Information

Detail

Product Description

Type Selection of Oil Surface Thermometer



Basic Parameter

  • Working Conditions: Ambient temperature (-40+55) , relative humidity 95%
  • 0120 (zero-setting)
  • Indication precision: Grade 1.5
  • Switch number: 2/3 (optional) Capacity: AC250V/3A
  • Switch difference: 3.6
  • Product standard: JB/T6302-2005
  • Protection degree: IP55 (including TH, TA)
  • thermo-bulb Ф14×150
  • Screw nut: M27×2



Type Selection and Functions

  • BWY is named after the

 standards in JB/T6302-92 Pressure Type Thermometer for Transformer stipulated by Shenyang Transformer Research Institute.

  • WTYK is named after the

 standards in JB/T9236-1999 Industrial Process Measurement and Control Instrument—Nomenclature of Model for Product.



BWY-80 (1) (2) (3) / (4) /(5)

(1) (03)    Switch number optional

(2)L

   :indicates the length of the capillary

   LCapillary length at default is 3m

(3) A:1 channel Pt100

     Absence indicates without Pt100.

(4) Y

At default,One channel with RS485 remote temperature. display meter

(5) TC420/TC15: temperautre convertor



Examples

  • BWY-803

Indicating with 3 switches/the capillary is 3 meters long

  • BWY-803A/Y

Indicating with 3 switches/the capillary is 3 meters long/1 channel Pt100 output/single channel display, with RS485 remote temperature indicator.

  • BWY-803L9/A/Y

Indicating with 3 switches/the capillary is 9 meters long/1 channel Pt100 output/single channel display, with RS485 remote temperature indicator




Product Image

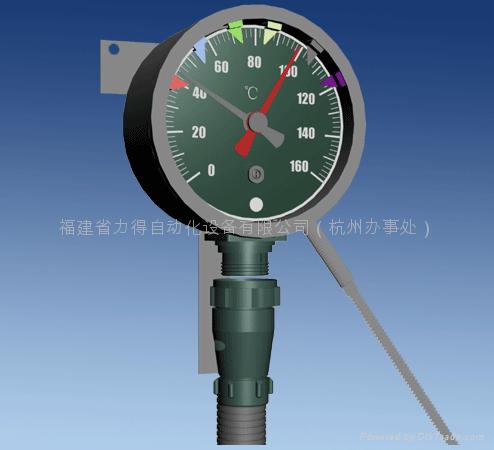

BWY-802(803) oil surface thermometer 1
Img 1

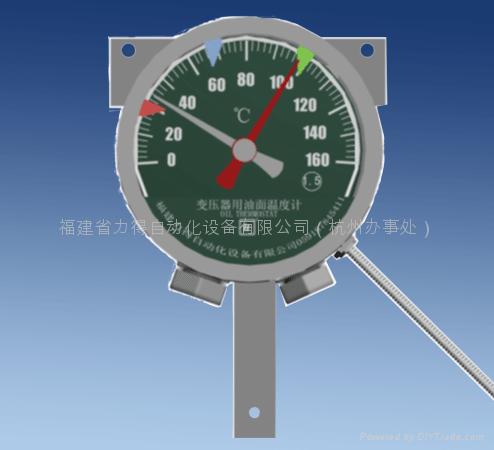

BWY-802(803) oil surface thermometer 2
Img 2
BWY-802(803) oil surface thermometer 3
Img 3
BWY-802(803) oil surface thermometer 4
Img 4
