| Model: | FQ24-ZYM |
|---|---|
| Brand: | kp |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | water proof plug , Panel receptacle , water tight plug |
| Price: |
¥17
/ pc
|
| Min. Order: | 10 pc |
| Last Online:13 Dec, 2024 |
FQ series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment..
1 2 3 4 5 6
1. Name of series: FQ
2.Shell size : 24
3.Number of contacts：1,2,3,4,6,10,19,26
4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,

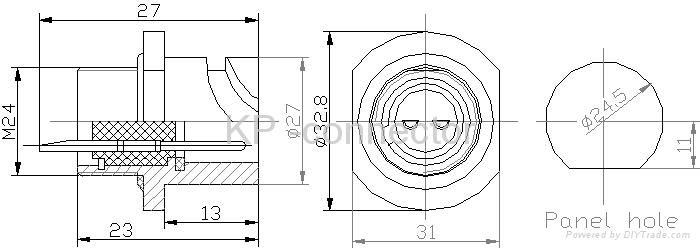

ZPY: circular cable receptacle,Z2:Receptacle with O ring,ZYM: circular recptacle with M24X1 screw.
5. Type of contacts: K:socket,J:pin
6. Cable gauge OD: 6,8,10,12,14
| Temperature | Relative humidity | Atmosphere | Vibration | Shock | ||||||
| (90~96)% at | 4.4KPa | 10~200Hz, | ||||||||
| Current | Voltage | Contact resistance | Endurance | |||||||
| 110V/250V | ≤10mΩ | 500cycles | ||||||||
| 250V/400V | ≤5mΩ | 500cycles | ||||||||
Environment | Voltage proof | Insulation resistance |
| ||||||||
Normal | 2000V For 400V | ≥5000MΩ |
| ||||||||
1500V For 250V | ≥1000MΩ |
| |||||||||
1000V For 110V | ≥1000MΩ |
| |||||||||
Moisture | 1000V For 400V | ≥100MΩ |
| ||||||||
750V For 250V | ≥20MΩ |
| |||||||||
500V For 110V | ≥10MΩ |
| |||||||||
Low pressure | 300V For 400V | - |
| ||||||||
250V For 250V |
| ||||||||||
180V For 110V |
| ||||||||||
| Specifications: | Product Ordering FQ 24 — 2 T K —8 1 2 3 4 5 6 1. Name of series: FQ 2.Shell size : 24 3.Number of contacts:1,2,3,4,6,10,19,26 4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,ZPY:Circular cable receptacle, Z2:Receptacle with O ring,ZYM: circular recptacle with a M24X1 screw. 5. Type of contacts: K:socket,J:pin 6. Cable gauge OD: 6,8,10,12,14 Technical characteristics The connector is allowed to submerged in 1m deep water for 30min.(Ip67) |
|---|---|
| Advantages: | FQ series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.. Technical characteristics The connector is allowed to submerged in 1m deep water for 30min.(Ip67) |
| Export Markets: | world |
| Pricing: | US$2.8 |
| Payment Details: | T/T |
| Min Order: | 10 |
| Ship Date: | 10 days |
| Standard Met: | IP67 |
