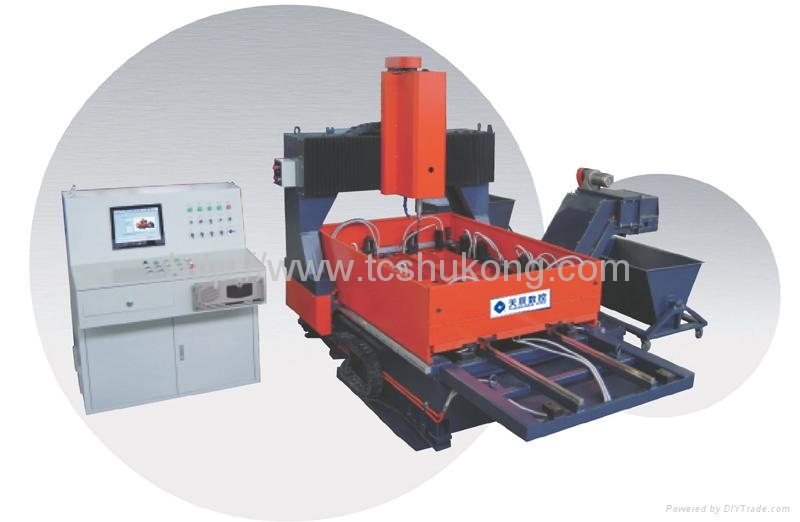

CNC Dual-Worktable Gantry Movable Plate Drilling Machine

CNC Dual-Worktable Gantry Movable Plate Drilling Machine 1

Model:	PD1610
Brand:	Tianchen CNC
Origin:	Made In China
Category:	Services / Designing, Processing, Custom Made / Metallic Processing
Label:	cnc drilling machine , plate drill machine , cnc plate machine
Price:	-
Min. Order:	1 set

Inquire Now

Member Information

Jinan Tianchen Machine Group Co.,Ltd.

Free MemberShan Dong - China

Last Online:05 Jul, 2022

Product Description

Equipment Features:
1) Professional machine for drilling connection plates of steel structure, the maximum drilling hole diameter is 50mm.

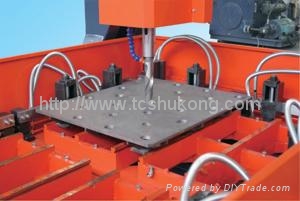

2)There are 12 high speed hydraulic clamps, 4 work pieces can be drilled at the same time.
3) Automatically clear away scraps, refrigerant circulation cooling.
4)PLC and industrial computer control, servo motor positioning, programming quickly and easily, CAD / CAM function, the whole design is well integrated with full optimization.

Main Technical Specifications:

Model		PD1610
Number of CNC axis		3
Work piece thickness (mm)		15~80 (can be overlapped for drilling)
Work piece size (mm)		1600x1000 (one piece) 1000 x 800 (two pieces) 800x 500 (four pieces)
Drilling Diameter (mm)		Ø12 ~ ø50
Spindle stroke (mm)		250
Spindle rpm (r/minute)		20~200
Clamp number		12
Clamp pressure ( kN )		7.5
Motor power ( kW)	Spindle	5.5
	servo motor:	X: 1.5, Y: 1.0, Z: 1.5
	Hydraulic driver	2.2
	Cooling motor	0.12
	Scrap removal	0.25
Overall size(mm) (Lx W x H)		3800x3500x2500
Machine weight (Kg)		4000

Product Image

Img 1

Img 2

Img 3
