Main Application:

1.Die cavity of molds

2.Bearings and other parts

3.Failure analysis of pressure vessel, steam generator and other equipment

4.Heavy work piece

5.The installed machinery and permanently assembled parts

6.Testing surface of a small hollow space

7.Material identification in the warehouse of metallic materials

8.Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications:

1.Measuring range：HLD（170～960）HLD

2.Measuring direction：0-360°

3.Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS

4.Display：segment LCD

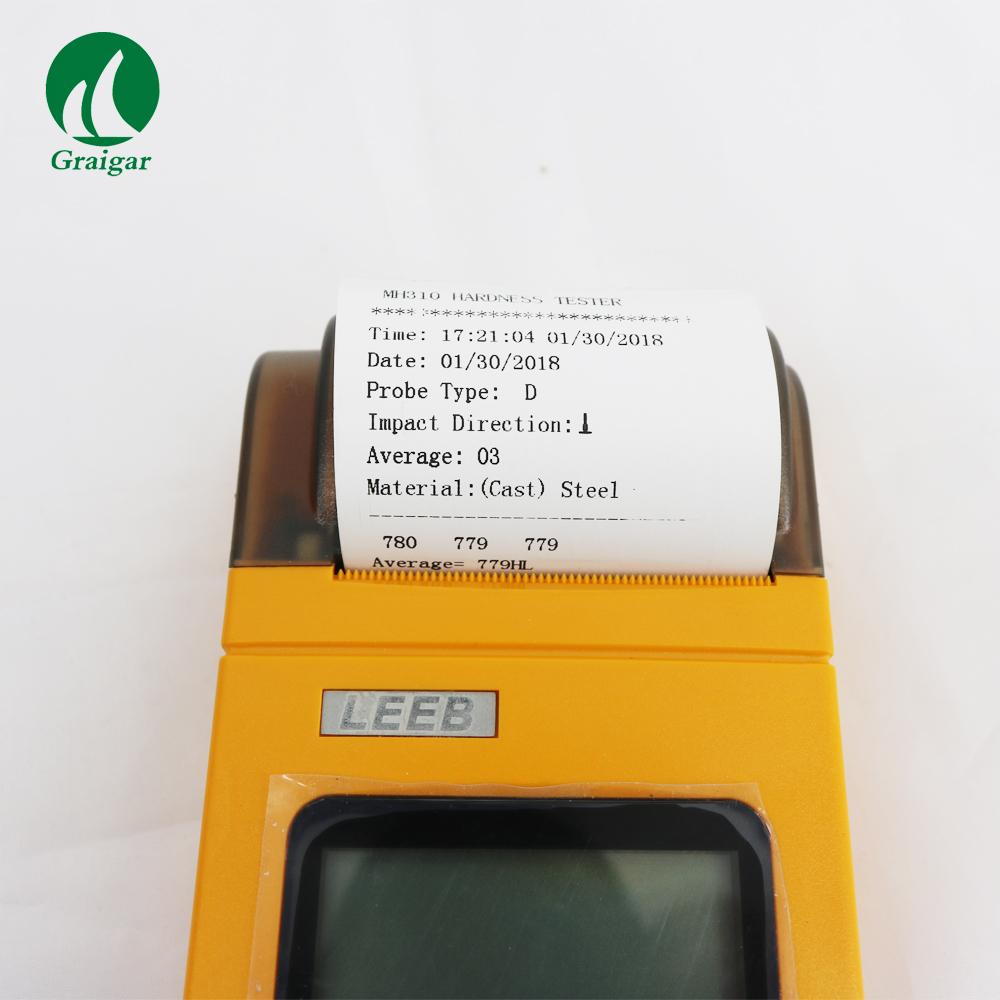

5.Data memory： 100 groups max.（relative to impact times 32～1）6.Printing paper: width is （57.5±0.5）mm, diameter is 30mm

6.Battery pack: 6V NI-MH

7.Battery charger: 9V/500mA

8.Continuous working period：about 150 hours（With backlight off, no printing）

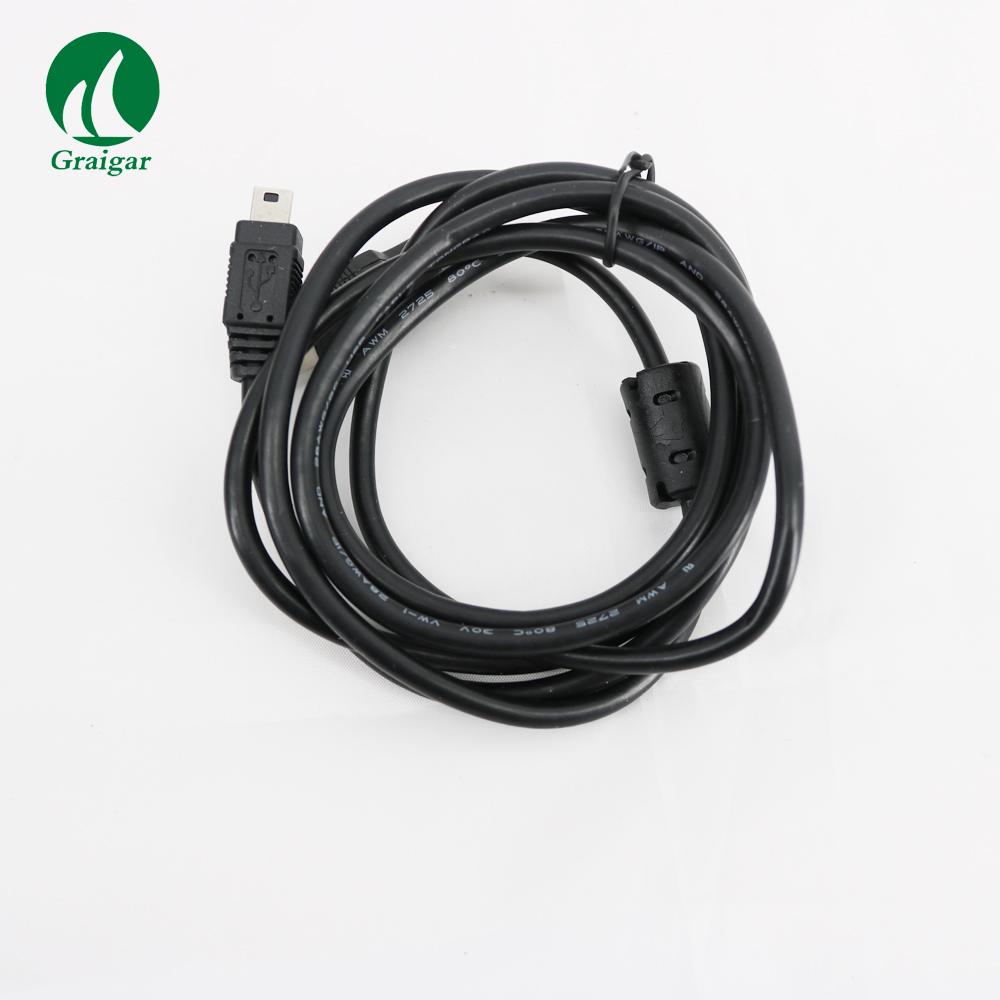

9.Communication interface：USB1.1

10.Outline dimensions: 212mm×80mm×32mm

Standard Configuration:

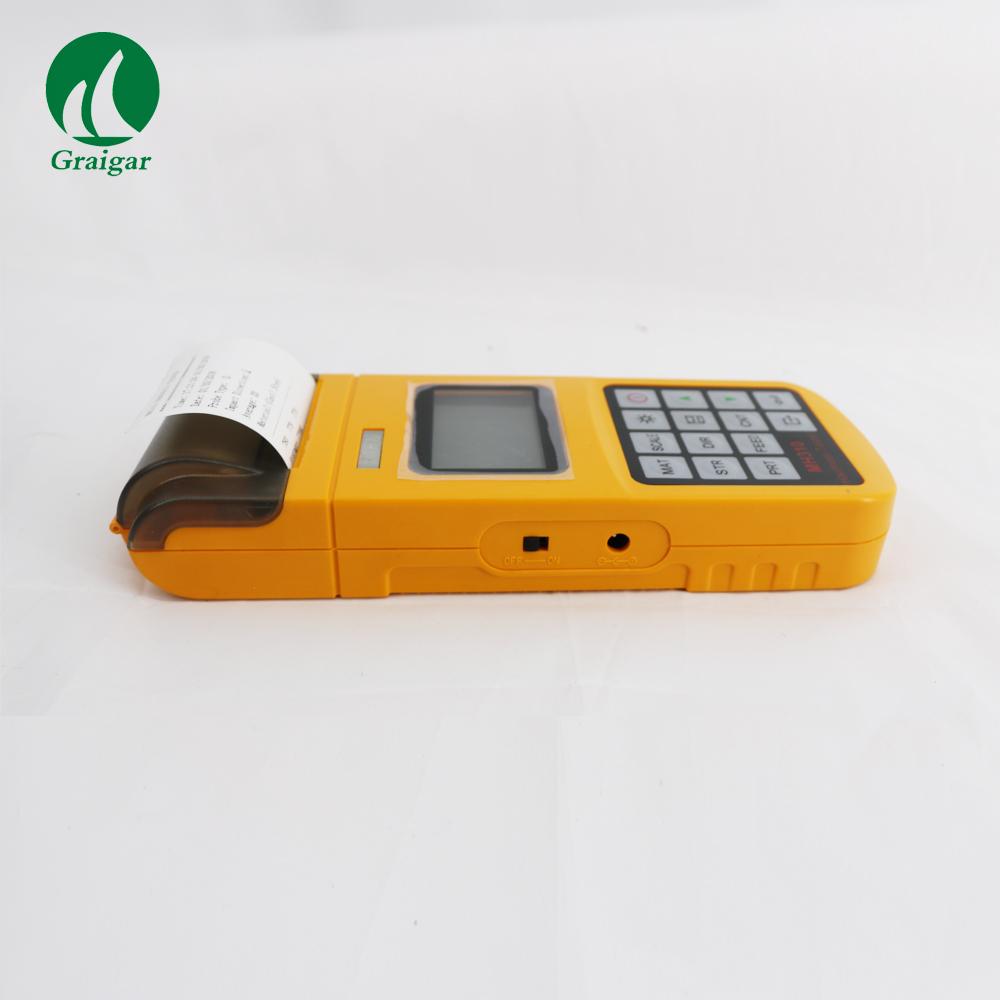

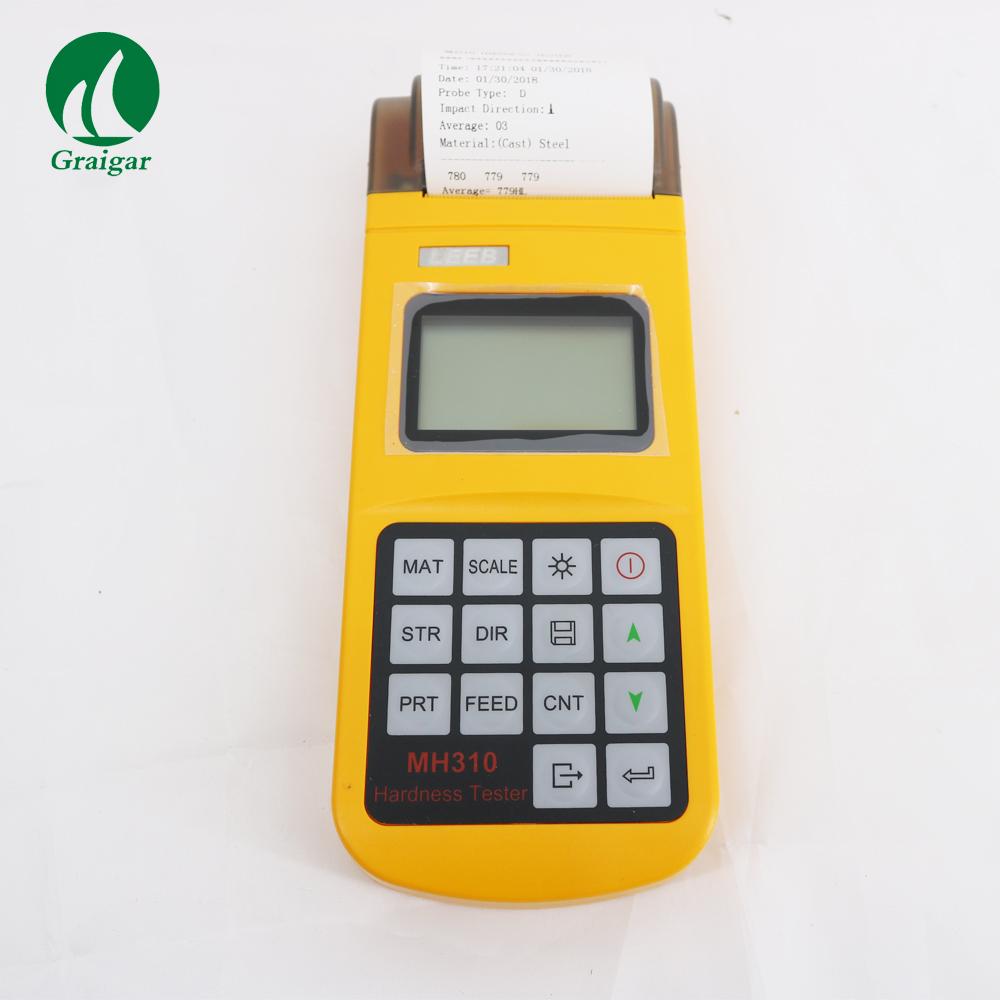

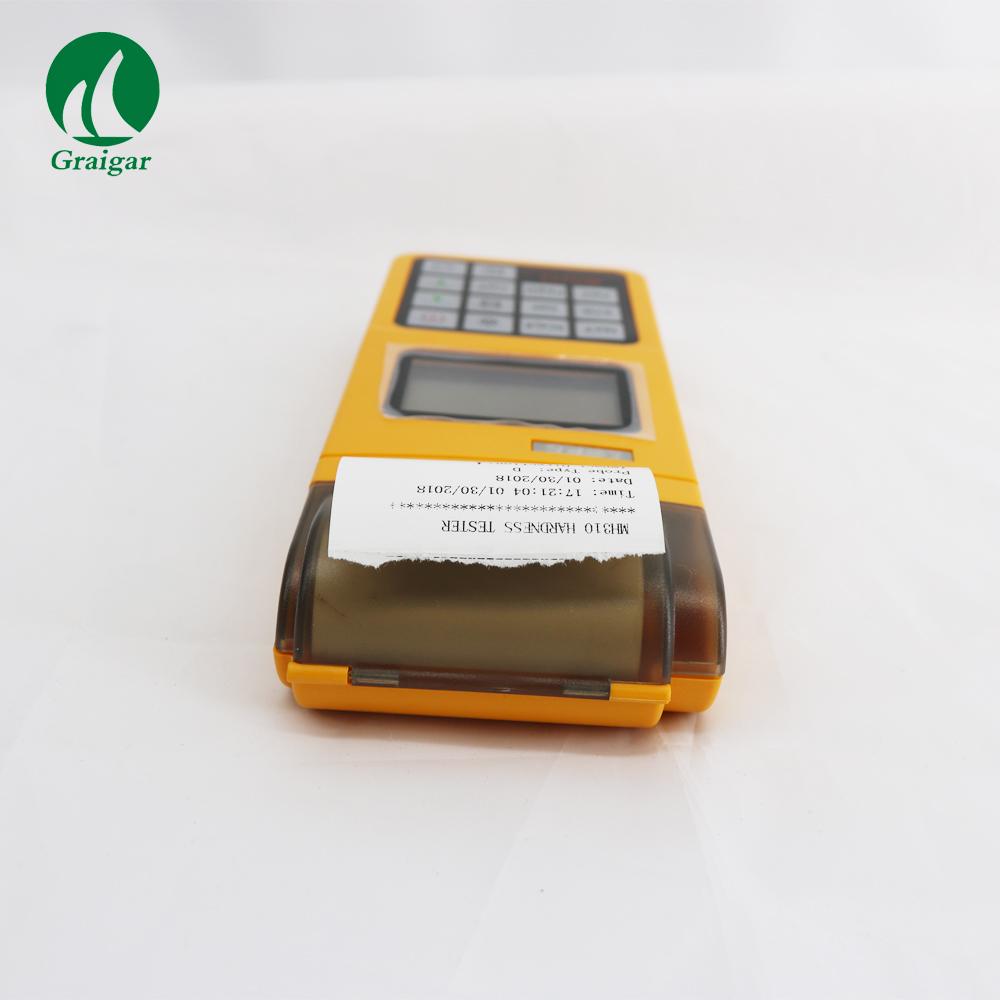

Main Unit;

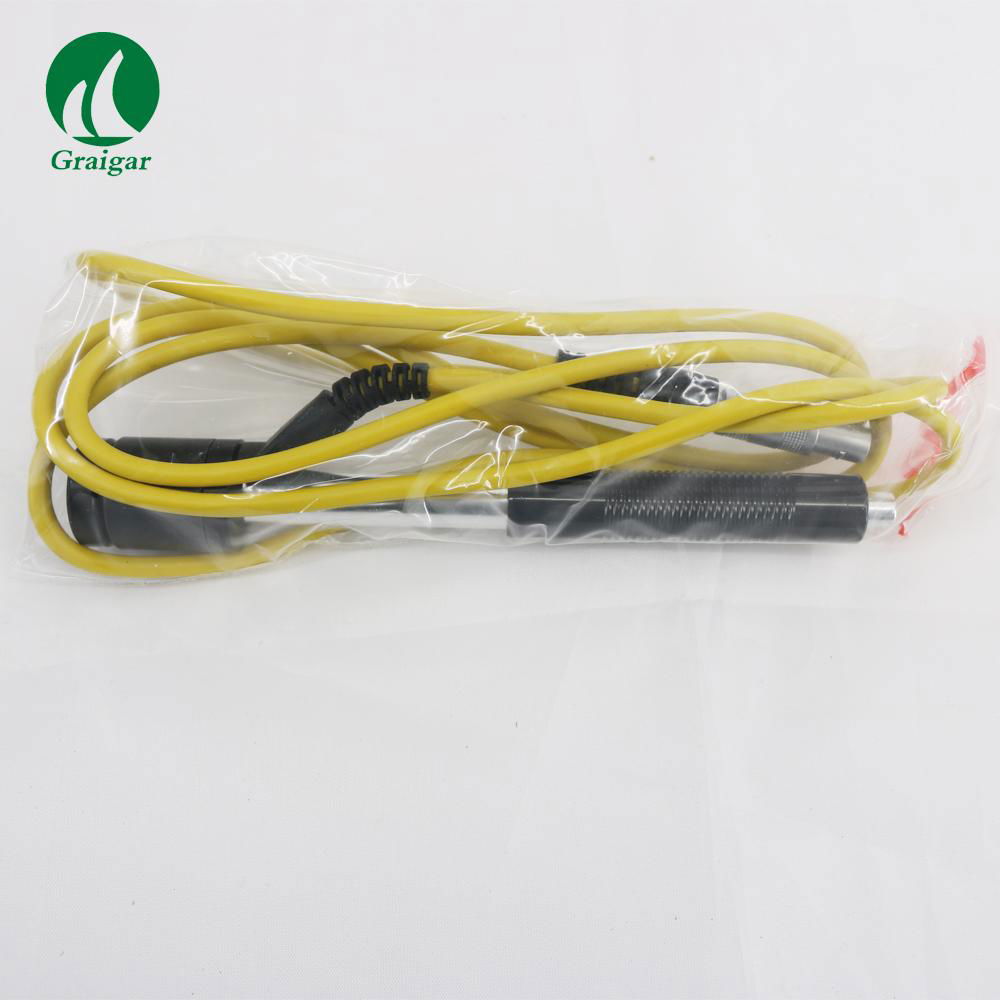

D type impact device With cable;

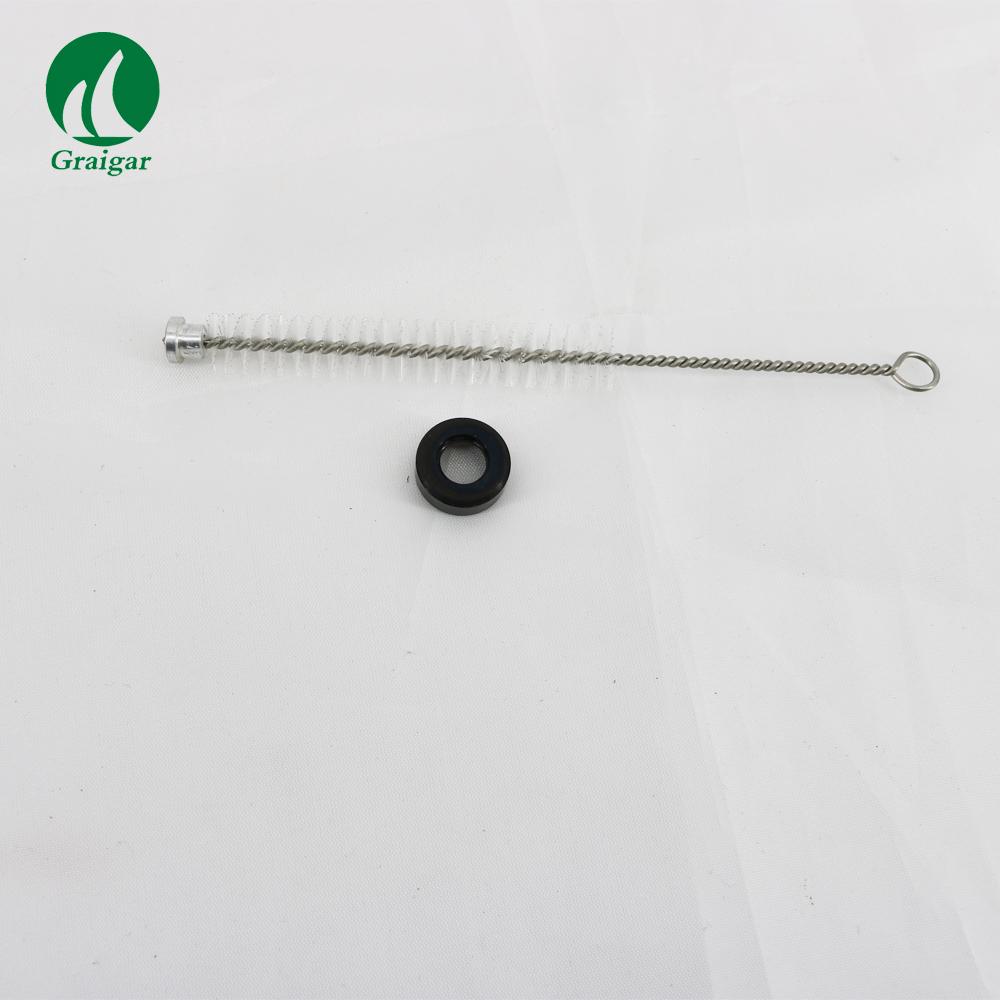

Standard test block;Cleaning brush (I);

Small support ring;

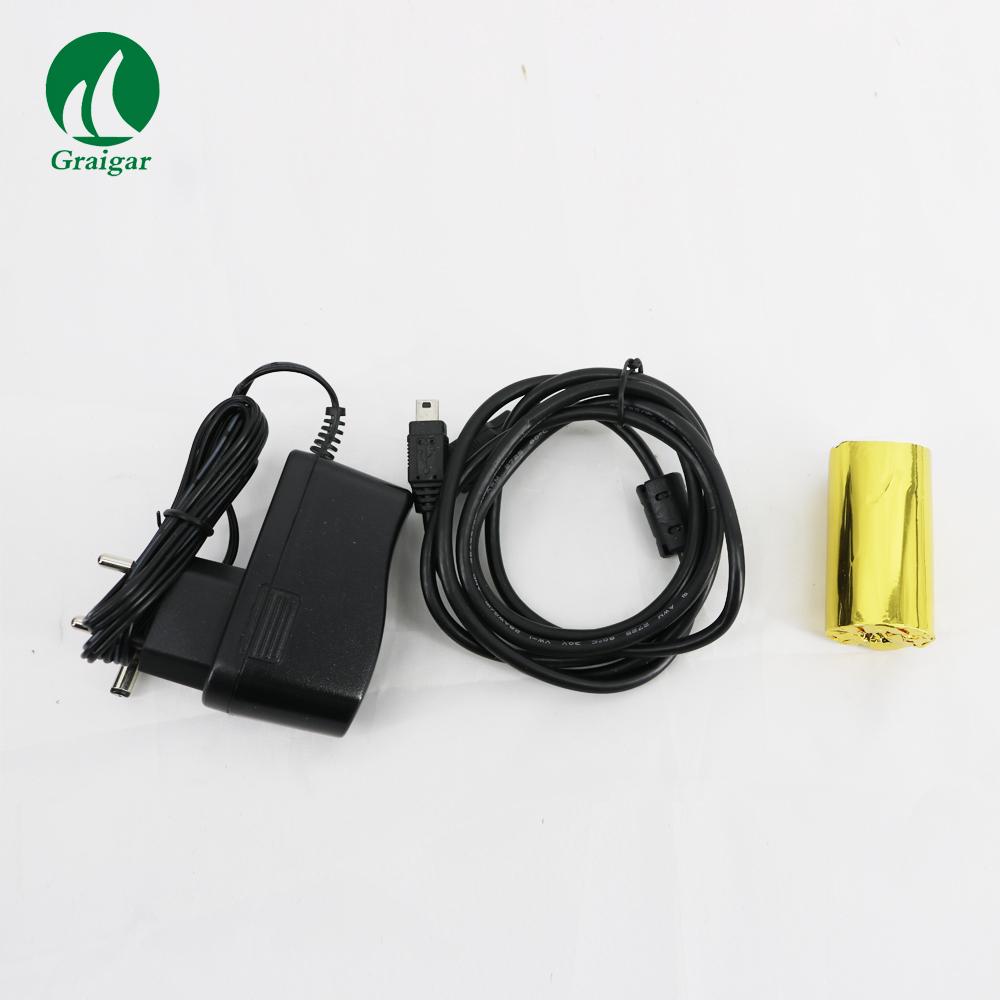

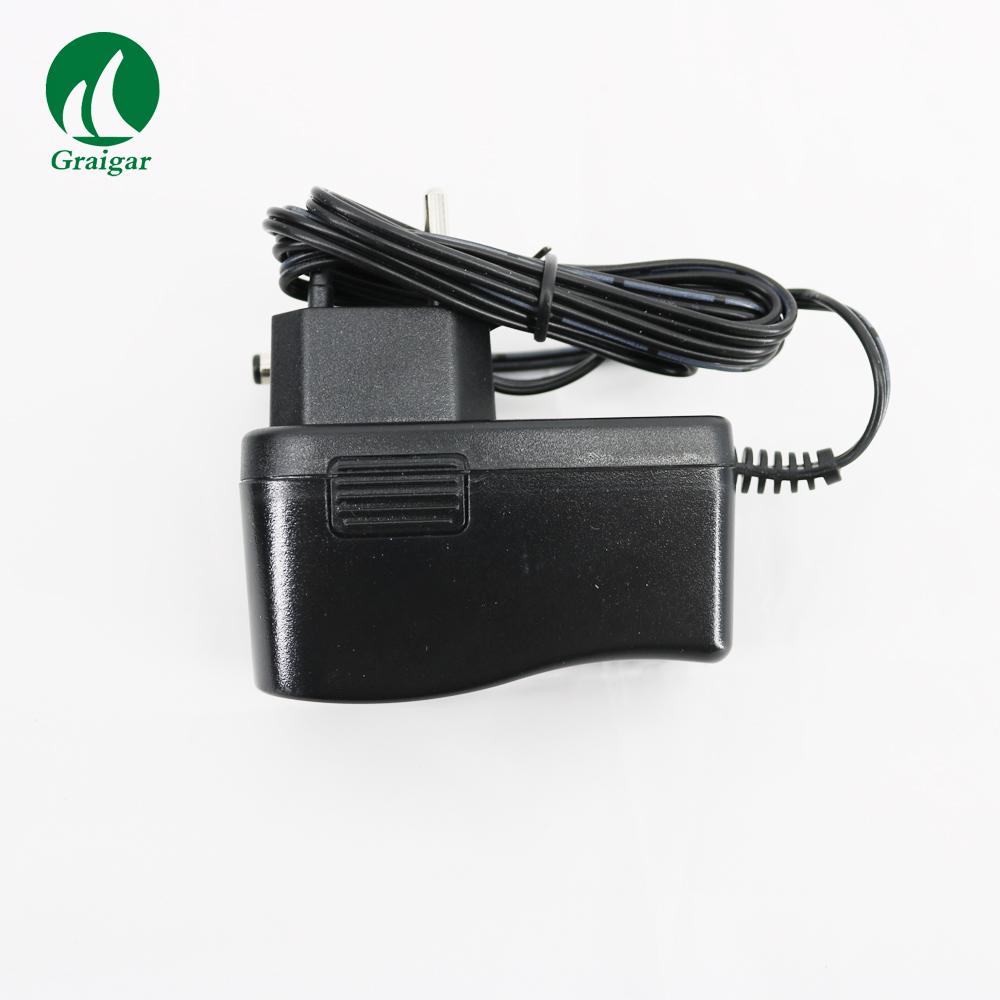

Battery Charger 9V 500mA;

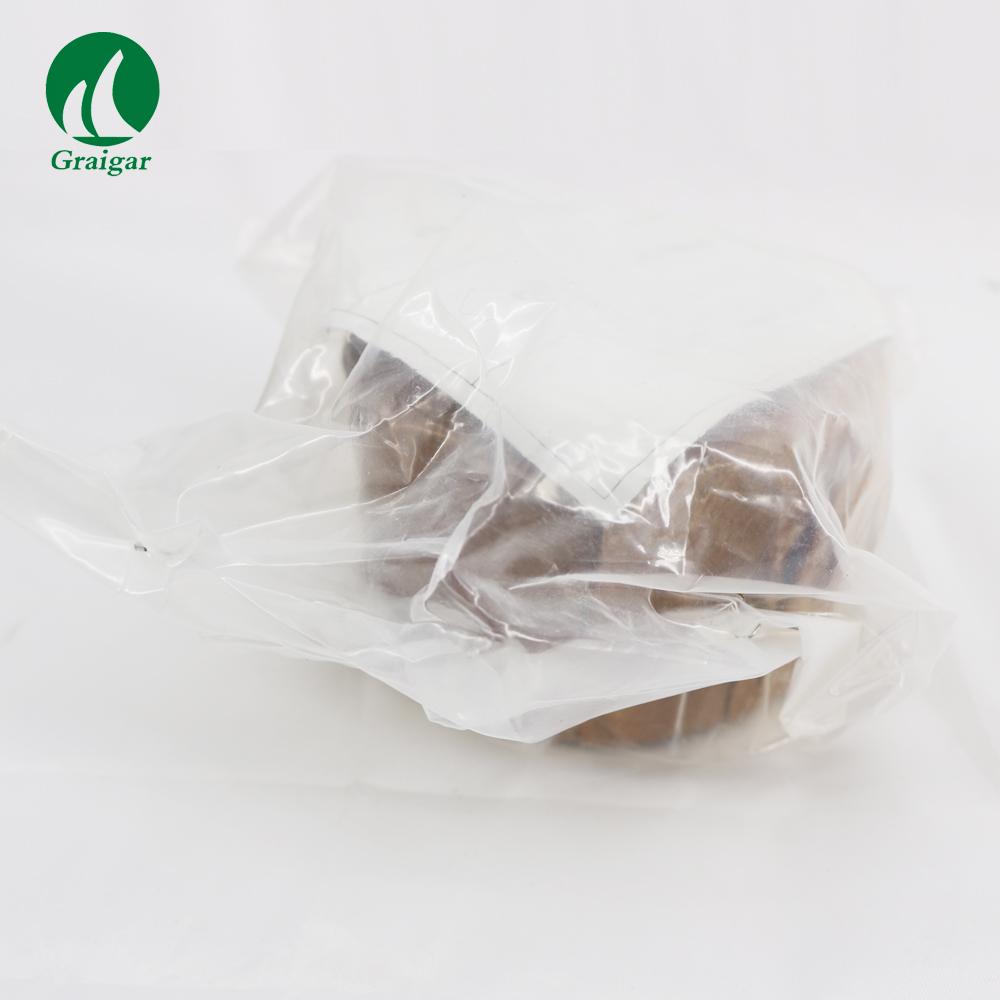

Paper for printing;

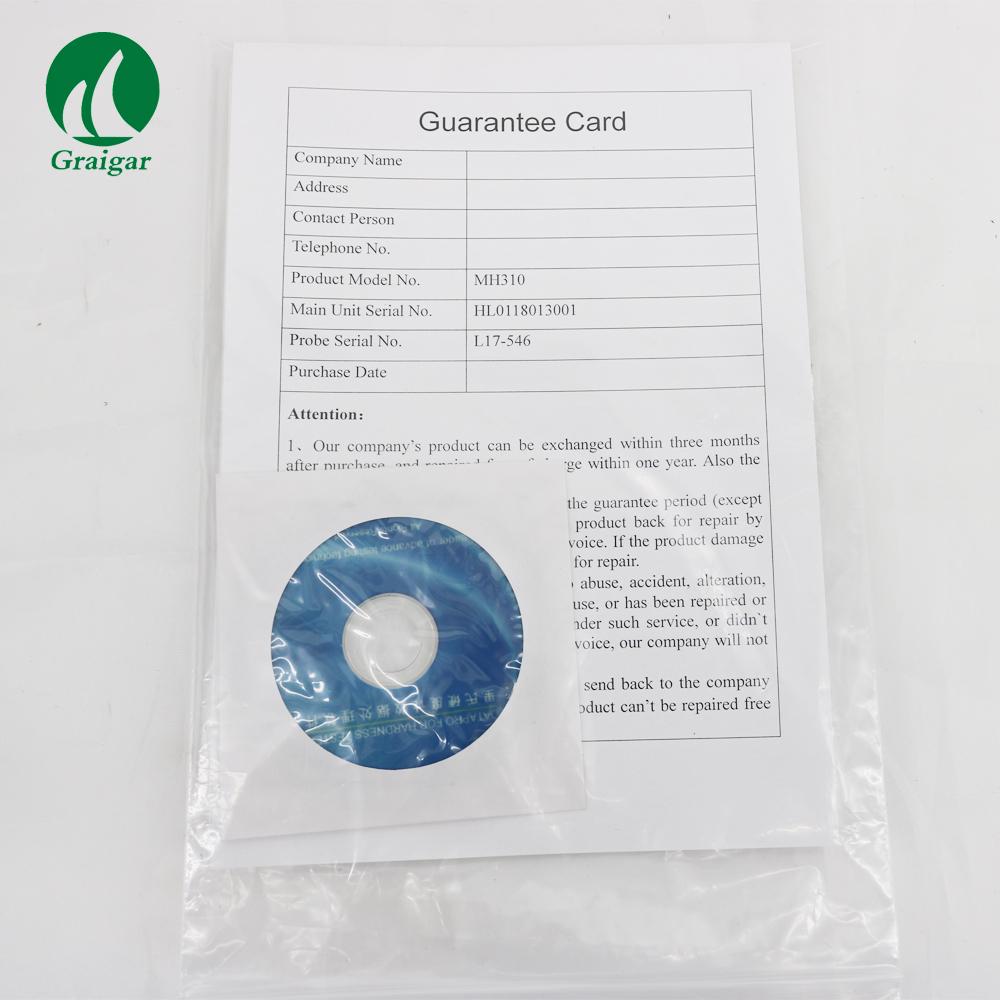

Manual;

Instrument case
