| Model: | SR-C1212 |
|---|---|
| Brand: | SR |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | cnc wood router , cnc acrylic cutting , cnc engraver carver |
| Price: |
US $4000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:21 Jun, 2016 |
Guarantee and after sales service
1. the machine guarantee is 1 year
2. 24hours technical support by email or calling
3. friendly english version manual and operation vedio CD disc
Notice:
Machine’s Main Spare Parts :
A set of standard Tools, Data Cable, Nc studio , Weihong System (Original Version), CD training for drawing and installing etc. a box of blade.
Applicable field:

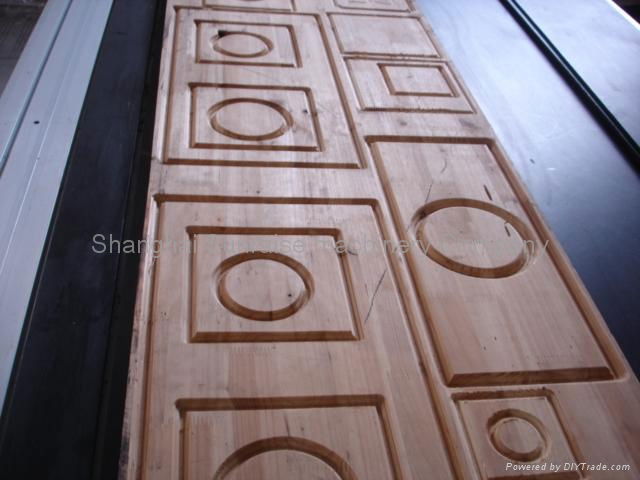

Efficient produce a variety of wood products, advertising signs, acrylic, plastic
membrane system and largescale cutting, seal crafts, badges, scale, sculputure and plastic sheeting,
wood. and none-metal materail engraving machine
mini cnc marble engraver
|
SR-C1212 |
CNC ENGRAVING MACHINE |
|
MACHINE SEGMENTS/PARTS |
ITEM DESCRIPTIONS |
|
X,Y,Z Working Area |
(Y) =1200 - (X)=1200 - (Z)=120mm |
|
Machine Power Setup |
AV 220v/50Hz/ |
|
Power Inverter |
Standard |
|
Machine Frame |
Aluminium Structure |
|
X, Y Structure |
Rack and Pinion Drive, Taiwan HIWIN Linear Bearings |
|
Z Structure |
Taiwan HIWIN Linear |
|
X,Y,Z Traveling Positioning Accuracy |
±0.05/300mm |
|
X,Y,Z Repositioning Positioning Accuracy |
±0.1mm |
|
Table Surface |
General Table with water sink |
|
Spindle Model and Power |
1.5kw Spindle |
|
Max motion speed |
10000mm/min |
|
Max engraving speed |
6000mm/min |
|
Spindle Speed |
24000 |
|
Drive Motors |
step |
|
Command Language(s) |
G code,HPGL,U00,mmg,plt |
|
Operating System |
Connect with PC |
|
Drawing format file |
Dxf, ai, bmp, plt |
|
software |
Nc studio |
Features
1. solid ganty, well structure of lathe bed, fast speed and high accuracy
2. with 24000rph/min of the spindle. Water cooling system on spindle automaticllly and high performance subdivision driver ensure to work stably for a long time.
3. with Nc studio software to operate the machine
4. with Auto CAD / Coreldraw to draw or design programs with PLT ,DXF, AI, BMP etc format file . and in wentai software transfer into G code
5. Taiwan imported linear gear guild
| Payment Terms: | t/t or west union |
|---|---|
