3W Green 560nm High Power LED on Star PCB
Product Description
3W Green 550-555nm High Power LED on Star PCB
Specifications:
Power: 3 W
Type: Emitter on Star PCB
Wavelength: 560nm +-5nm
Beam Angle: 140deg.
Voltage: 3.0-3.6V Current: 350mA
Luminous Flux: 60-70lm
Operation Temperature: -20-80 degrees
Storage Temperature: -20-100 degrees
Additional Heat-sink equipment is recommended when operation temperature is higher than 55 degrees.
The available output power we can make which include 1, 3W....50W, 100W, 200W, 300W,500W. And the Green available wavelength include: 480nm, 490nm, 500nm, 510nm, 520nm, 530nm, 540nm, 550nm. We accept Custom LED solutions, if you have any requirement, please contact us.

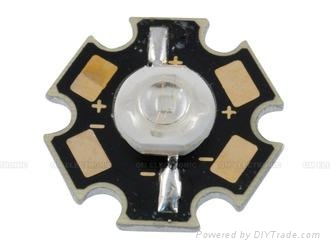

Product Image
Img 1
