| Model: | TM-700UVF |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | UV drying curing , uv coating machine , uv curing machine |
| Price: |
-
|
| Min. Order: | - |
| Last Online:25 Dec, 2024 |

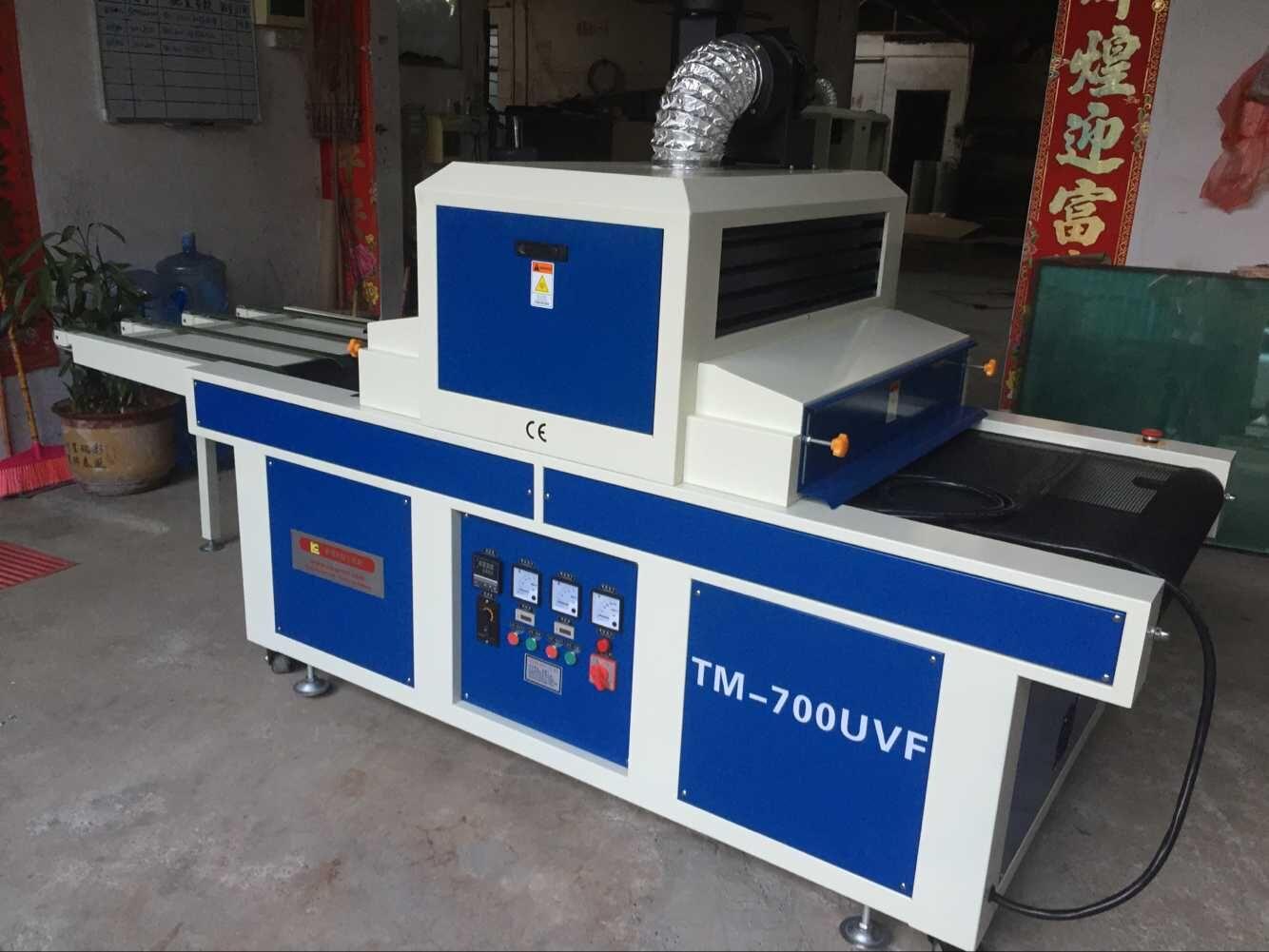

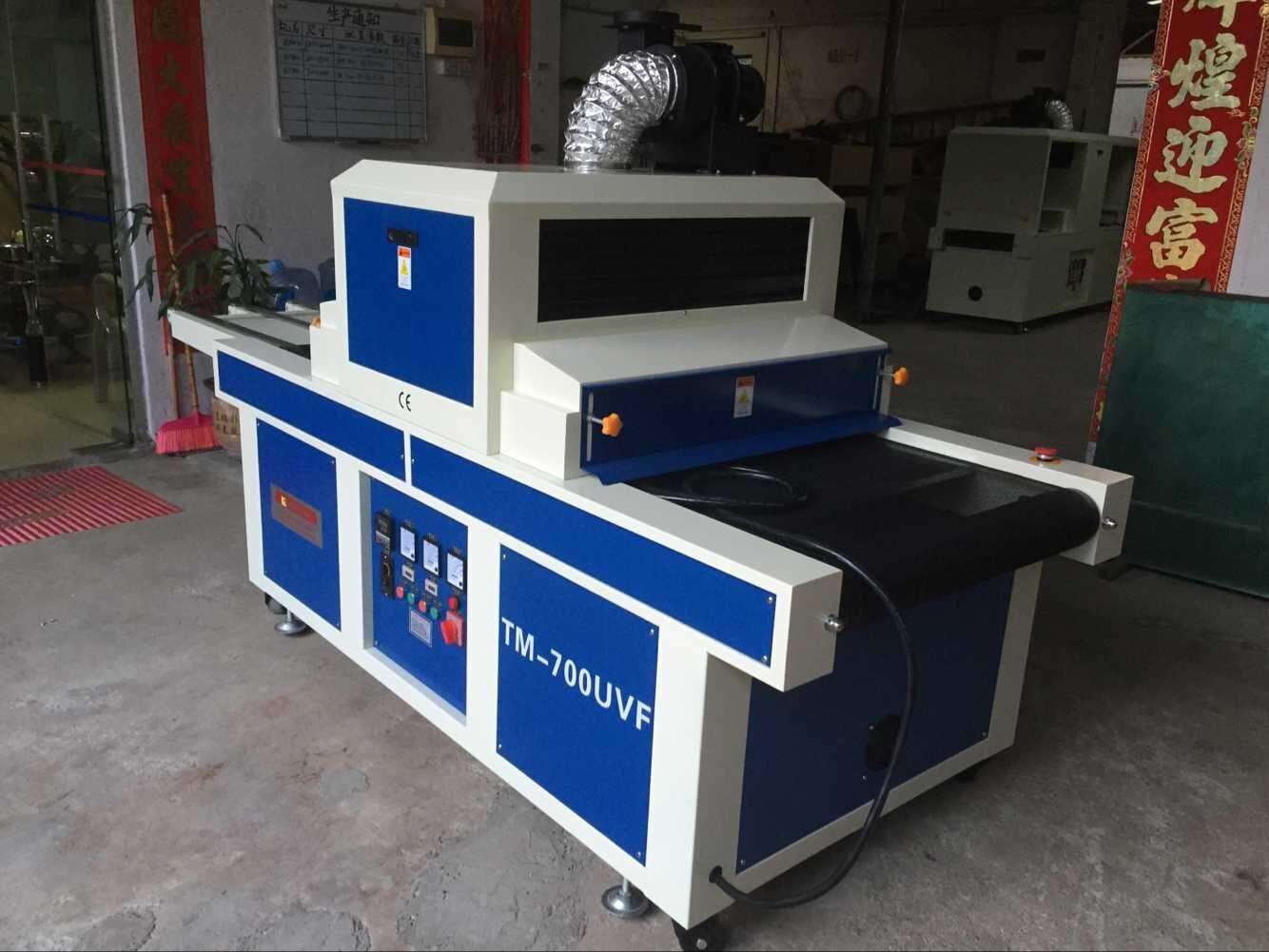

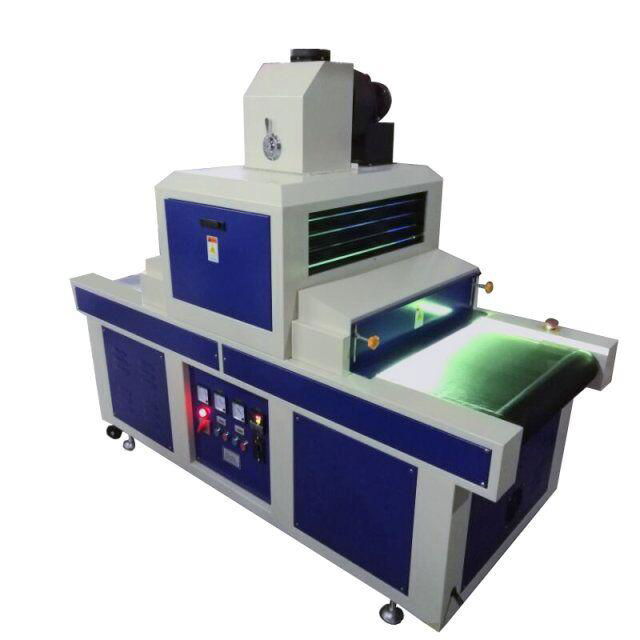

UV Curing Machine TM-700UVF be fit to UV curing drying ,for plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV sparying , UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics 1. Model NO. TM-700UVF
2. UV Drying products：700*100*2000mm
3. Conveyor belt size：L2000* W700MM
4. UV Lamp power：2PCS*3KW /380V
5. Total wattage：7.5KW
6. Wind fan wattage: 500W/380V
7. motor wattage：1000W/1P/380V
8. Conveyor speed：0~10m/min
9. Speed change ways：Continue
10. UV Machine Dimension：L*W*H2020*900*1350
| Model number | TM-500UVF | TM-600UVF | TM-700UVF | TM-800UVF | TM-900UVF | TM-1200UVF |
| max product width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| max product length | 2000mm | 2000mm | 2000mm | 3000mm | 3000mm | 3000mm |
| UV Process shine area | 500*2000mm | 600×2000mm | 700×2000mm | 800*3000mm | 900*3000mm | 1200*3000mm |
| conveyer speed: | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min |
| UV Lamp power | 3KW ×2PCS/ | 3KW ×2 PCS/ | 3KW ×2 PCS/ | 5KW*2pcs | 5.6KW*2PCS | 5.6KW*2 PCS |
| UV Machine Dimension: | 2020×550×1200mm | 2020*650*1200mm | 2020*750*1200mm | 3020*850*1200mm | 3020*950*1200mm | 3020*1250*1200mm |
Free Fitting :
TWO pcs UV lsmp(3KW)
Testing Please provide:
1. 380V power supply.
