Product Description


ASOM-3/E


ASOM-3/E operation microscope has a super optics system, it can give the biggest depth of field. And it has a special diaphragm, so we can change the depth of field slightly. For ophthalmology.











Specification


New changing diaphragm give you perfect depth of field


Eyepieces


magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +5D ~ -5D. Focus of second object lens 180mm





Binocular tube


30°~90°variable angle binocular tube, add new pupil distance adjustment


Magnification


6:1 zoom, motorized, magnification 4.5x~27.3x; field of view Φ44~Φ7.7mm


Coaxial assistant’s binocular tube


manual 3-step changer, total magnification 6.5x,10.8x,17.3x; field of view Φ30.5mm,Φ18.3mm,Φ11.4mm


Coaxial illumination


illumination diameter of light spot Φ50mm, illumination intensity 100000lux


Objectives


f175mm (200mm, 250mm etc )


Focusing


motorized, range +/-25mm, speed 33s/whole distance


X-Y translator


move in X-Y direction motorised, range +/-30mm


Maximum length of arm


1200mm


Stand


swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm<H<1250.


Foot switch


waterproof, 8 function steps


Weight


164kg


Product Image

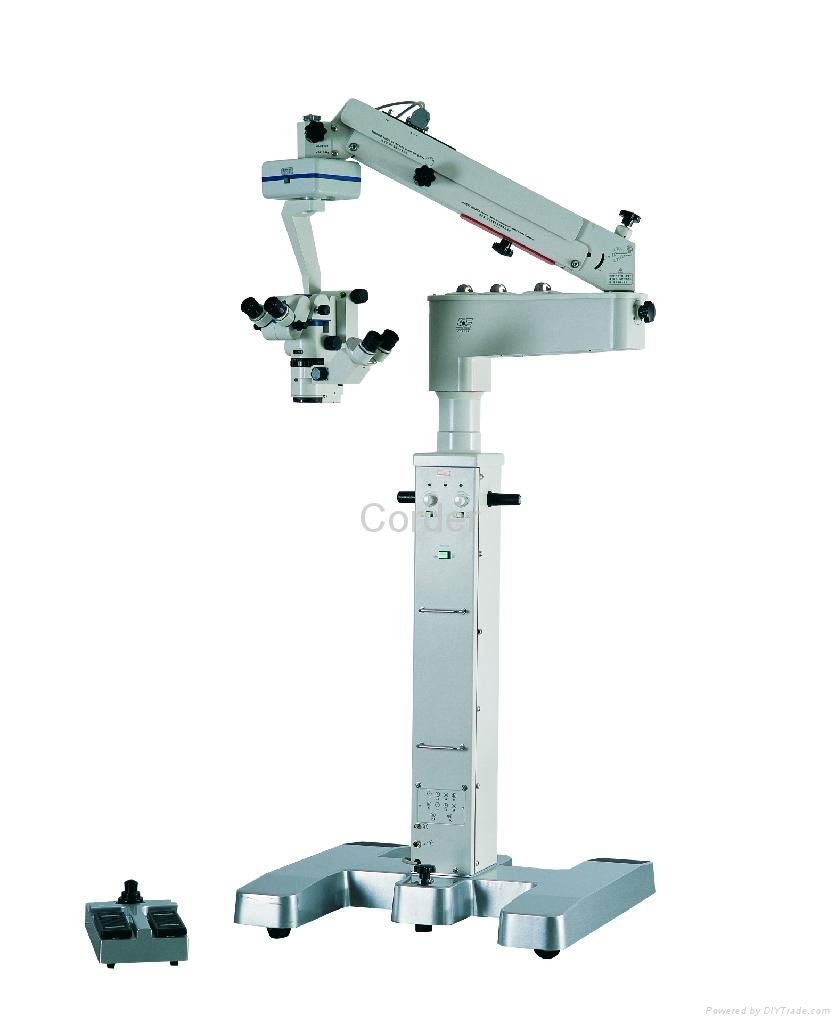

ASOM-3/E ophthalmology operating microscope 1
Img 1
