Aluminum pipe maker

Model:	ATM-300F
Brand:	ATM; M-TUBE
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Heat Exchange & Air Conditioners
Label:	Aluminum duct machin , Automatic aluminum , aluminum pipe maker
Price:	US $33000 / pc
Min. Order:	1 pc

Inquire Now

Member Information

Shanghai Metal Forming Machine Co., Ltd.

Free MemberShang Hai - China

Last Online:21 Nov, 2022

Product Description

corrugation ridge or 9- corrugation ridge)

ATM-300F (7-

1、forming diameter：￠80――￠350mm

2、pipe length 500――6000mm(no limit, it can make any length )

3、thickness：0.050—0.15mm(aluminum), 0.035—0.10mm(stainless steel)

4、strip width：60 mm

5、speed：1－70m/min （it can be adjusted）

6、system control：with LCD screen, transducer and PLC control, Automatic cut the pipe to length, And then Automatic compress the pipe to length

7、main powe1.5KW, 220volt, single phase, 50 Hz

8、weight：about 1000kg

9、overall size：1860×1150×1330mm and 5000x700x1000mm

10,for material: aluminum foil, copper foil, stainless steel , galvanization steel

Payment Terms:	T/T

Product Image

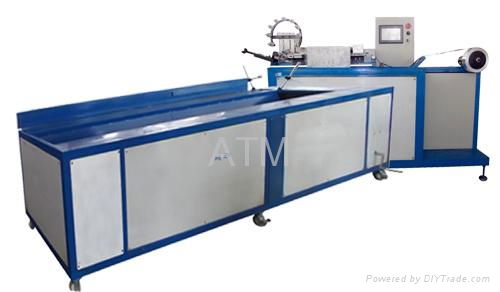

Img 1

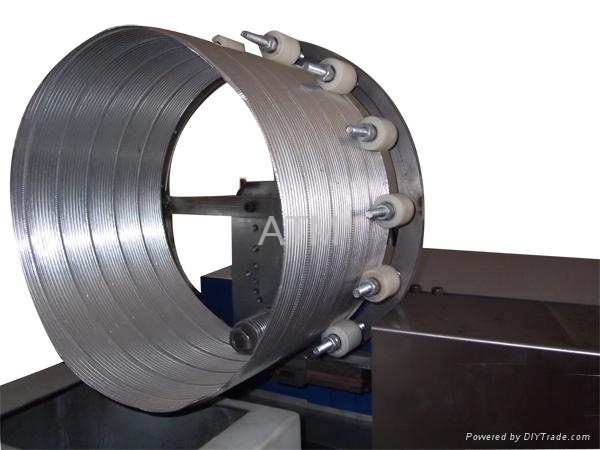

Img 2

Img 3
