Protective hoses shield cables or tubes from damage

Model:5mm-25mm
Brand:TongFeng
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label:Protective hoses , Protective conduit , flexible conduit
Price: ¥10 / m
Min. Order:200 m
Inquire Now

Member Information

Detail

CiXi TongFeng Flexible Metal Conduit Factory

Biz MemberZhe Jiang - China
Last Online:18 Nov, 2024

View all products. (147)

Product Description

Square-Locked Tubes / Conduits

The Square-Locked tube/ conduit is produced from a continues metal strip which is locked into position by one overlapping joint. The highly flexible tube provides excellent mechanical protection without stretching or binding.

Its small size and r edness makes it ideal for protecting fiber optic bundles and sensor cables, medical equipments, robotics, fiber scopes, or light guides. Square-Locked tubes are available in various materials and optional sheathing. Tube Material: Stainless Steel / Galvanized Steel

ID: ø3.0 ~ ø102.0mm

OD: ø4.6 ~ ø110.0mm

OD with Coating: ø6.1 ~ ø 112.5mm

Applications:

Communication equipment

Optical fiber and sensor cable

Medical equipment

Endoscopes / Boroscopes

Robotic systems

Fiber Scopes & light guides

Features:

General purpose stock item

Lightweight

Pliable and non-stretch

High tensile strength

High crush resistance

Excellent bending

Materials:

Square-Locked tubes:

- Stainless steel (standard)

- Brass

- Copper

- Titanium

- Aluminum

Sheathing (optional)in various colors

- Soft Polyvinyl-Chloride (PVC)

- Olefin Elastomer

- Polyester (PE)

- Silicon rubber (Si)

- Fluorocarbon resin (ETFE, FEP)

- Stainless steel braiding

Interlocked Tubes/conduits

The Interlocked Tube's metal strip is fully interlocked. This offers superior tensile strenght and crush resistance while allowing full extension and compression without binding. The Interlocked Tube is designed to maintain a particular shape or bending condition which makes this tube ideal for application such as light guides or bundling optical fibers in medical equipment.
The Interlocked Tube also incorporates a cotton thread for waterproofing and vibration absorption. Standard material is stainless steel with optional sheathing.

Tube Material: Stainless Steel / Galvanized Steel

ID: ø4.0 ~ ø63.0mm

OD: ø6.0 ~ ø67.5mm

OD with Coating: ø7.0 ~ ø72.5mm

Features:
• Very strong interlocking
• Resists lateral pressure
• No elasticity, large bending radius
Materials:
• Tubing: Stainless steel
• Sheathing: Soft Polyvinyl Chloride, Olefin, Silicon
Applications:
• Hollow quartz fiber protection.




Product Image

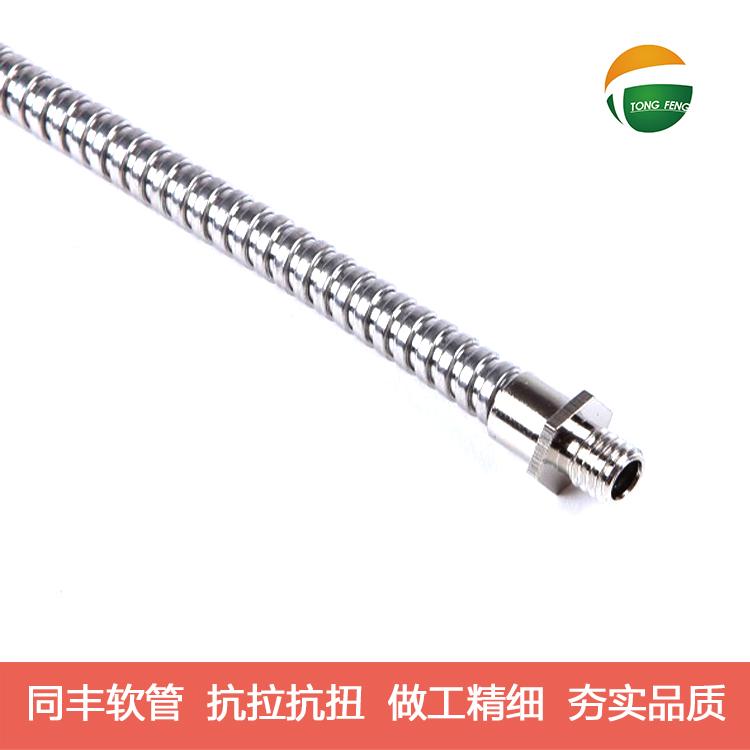

Protective hoses shield cables or tubes from damage 1
Img 1

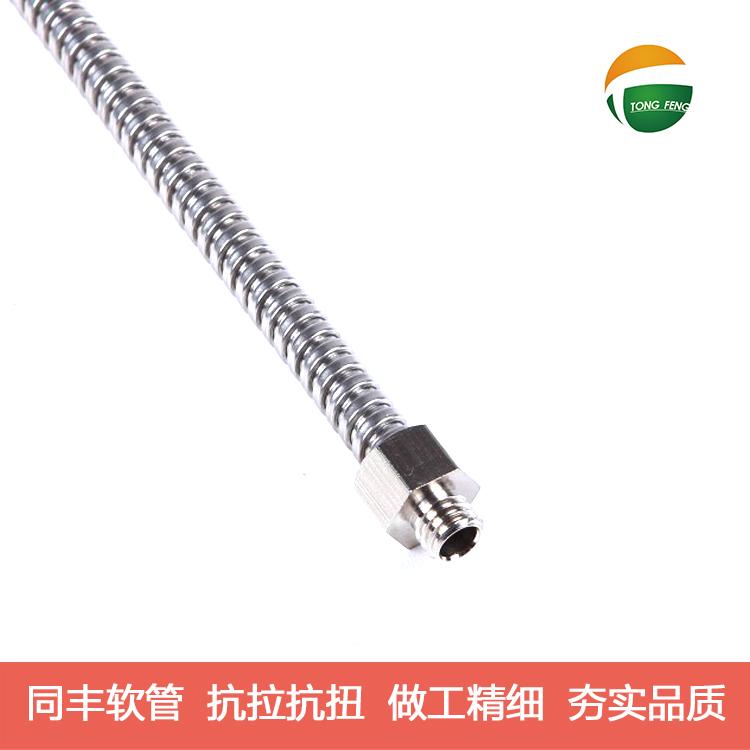

Protective hoses shield cables or tubes from damage 2
Img 2

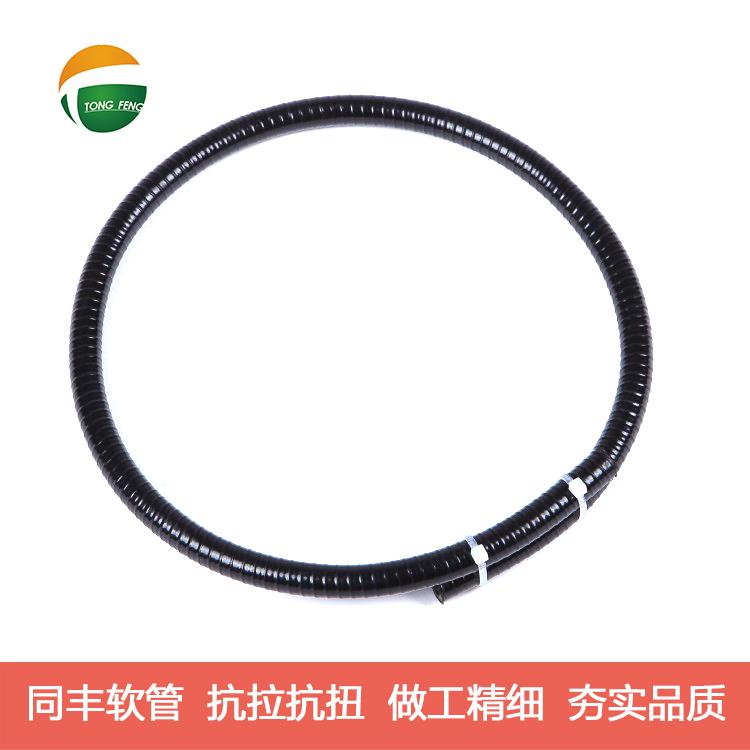

Protective hoses shield cables or tubes from damage 3
Img 3

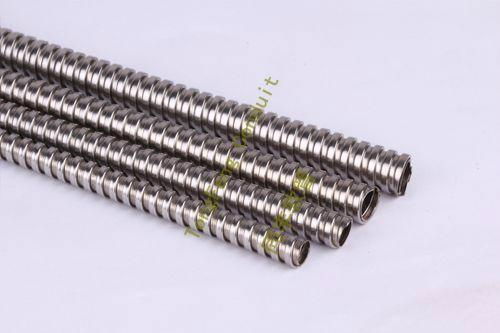

Protective hoses shield cables or tubes from damage 4
Img 4

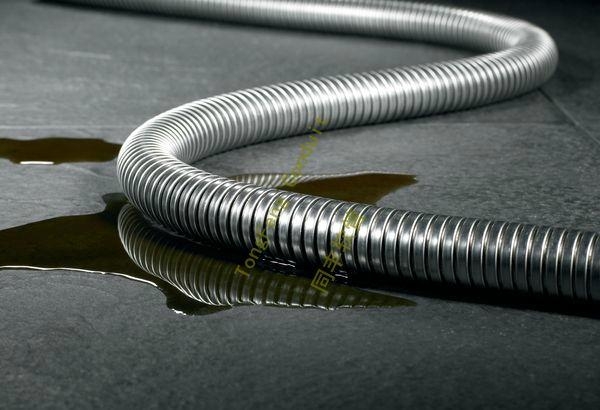

Protective hoses shield cables or tubes from damage 5
Img 5

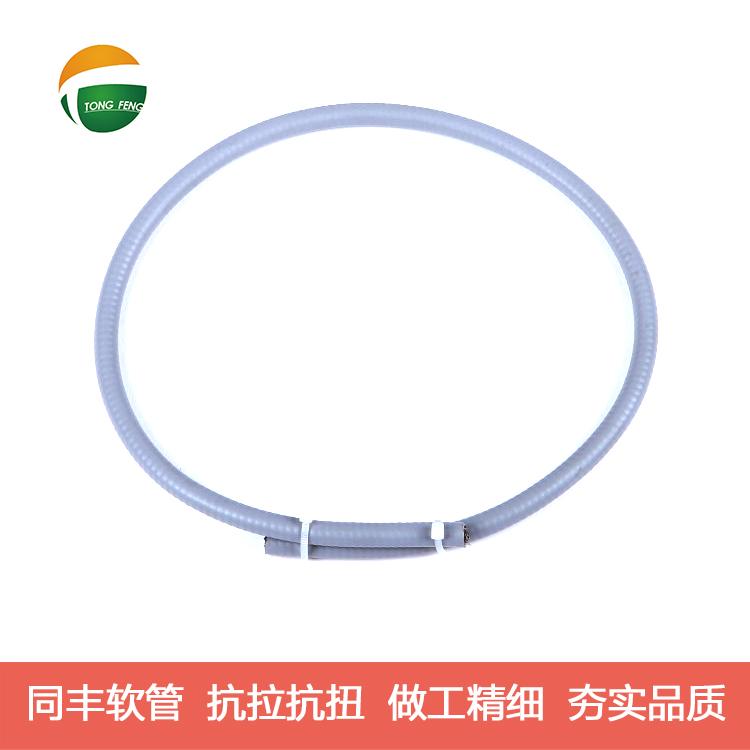

Protective hoses shield cables or tubes from damage 6
