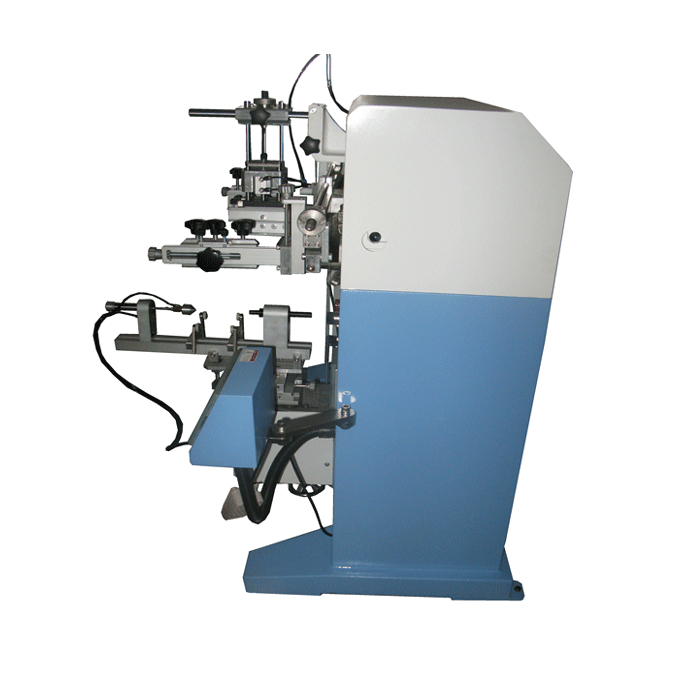

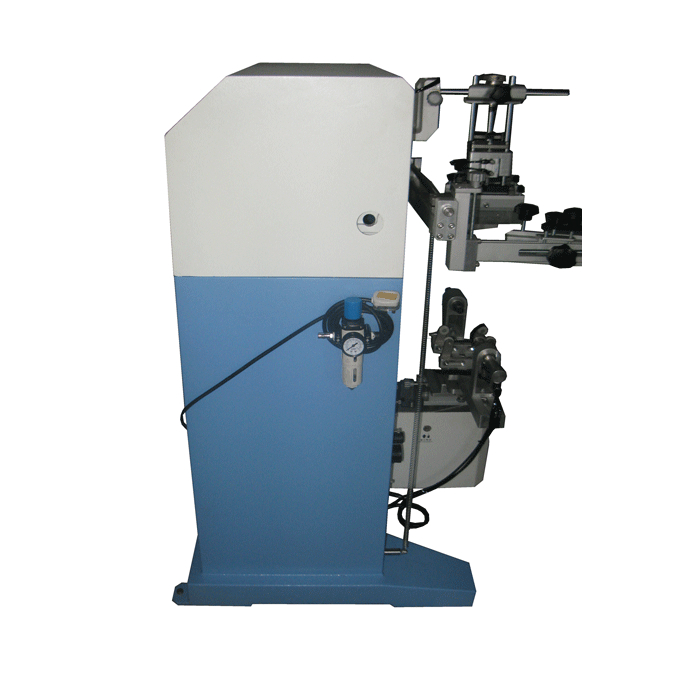

S-700E Multi-function screen printing machine//Usage and characters

Guide

• 220mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
• Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
• With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
• Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
• Upper and lower part of table type surface screen printing machine, take place after the table automatically lifting the work piece;
• You can use the foot switch for automatic operation, the safety factor greatly increased;
• Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.

Application

Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.

S-700E Multi-function screen printing Machine //Parameters

Technical parameters

• Max. printing height: 320mm;
• Max. Printing diameter:;whole circle: 220mm;.arc: 680mm;
• Max. printing speed: 1000pcs/hr;
• Air consume: 80Litre/min(6bar).
• Max Screen Frame: 850×450mm;
• Stroke up-and-down of working table: 150mm;
• Stroke up-and-down of Squeegee: 50mm;
• Max length of printing objects: 400mm;
• Range back-forth of Squeegee: 250mm;
• Diameter of Fixture axis: 18mm;
• Range back-forth of screen frame: 180mm

Works supply

• 110V-220V Power supply；
• 5-7Barcompress air；

Package parameters

• Package Dimension: 1130*1560*1360mm;
• Gross weight: 190kg;
• CBM: 2.3974

H.S.CODE

8443198000

Certificate

CE

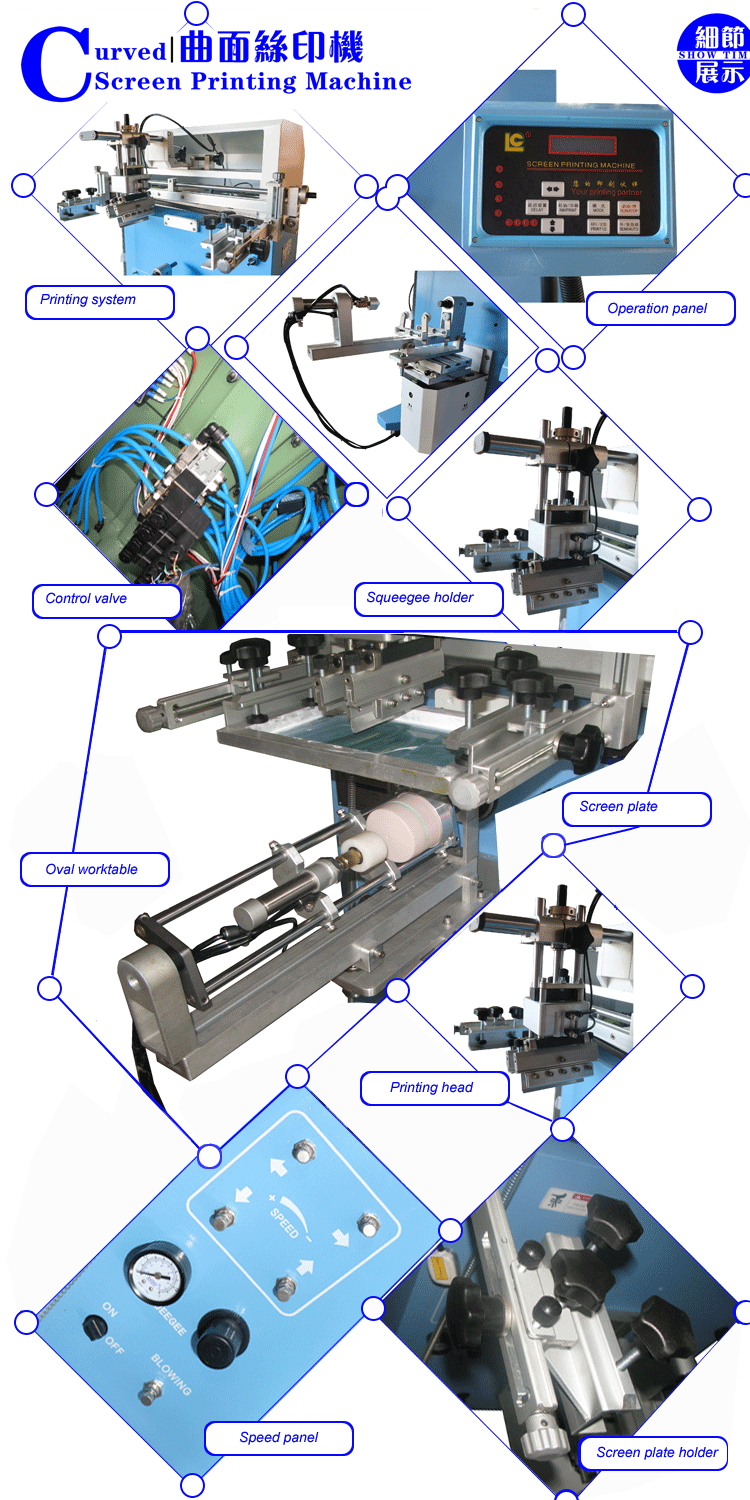

S-700E Multi-function screen printing Machine//Advantage

Function

• Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
• Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
• High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
• High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
• Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
• Microcomputer control program operations, set up a variety of modes;
• Four counts digital LED count, high degree of automation;
• Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
• Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
