| Model: | HM-TC305 |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | Bronzing machine , Gilding machine , hot stamping machine |
| Price: |
US $1354
/ pc
|
| Min. Order: | 1 pc |
| Last Online:24 Dec, 2024 |

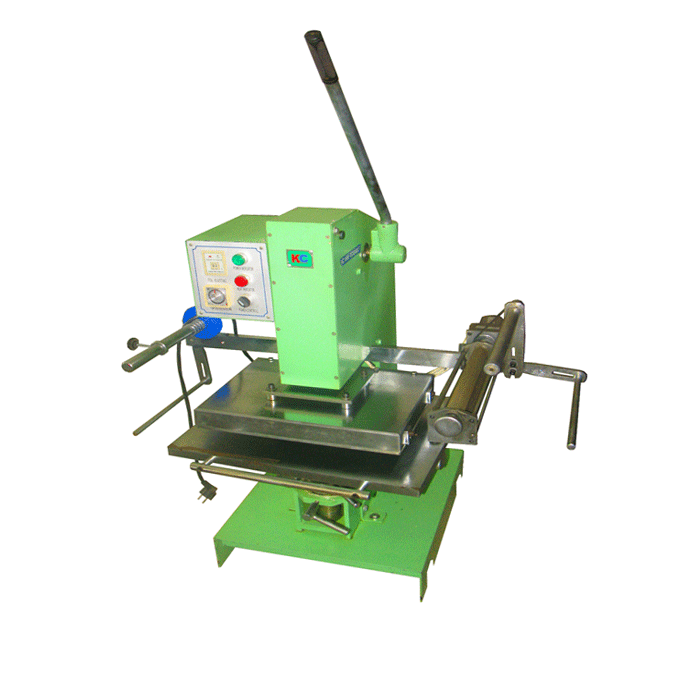

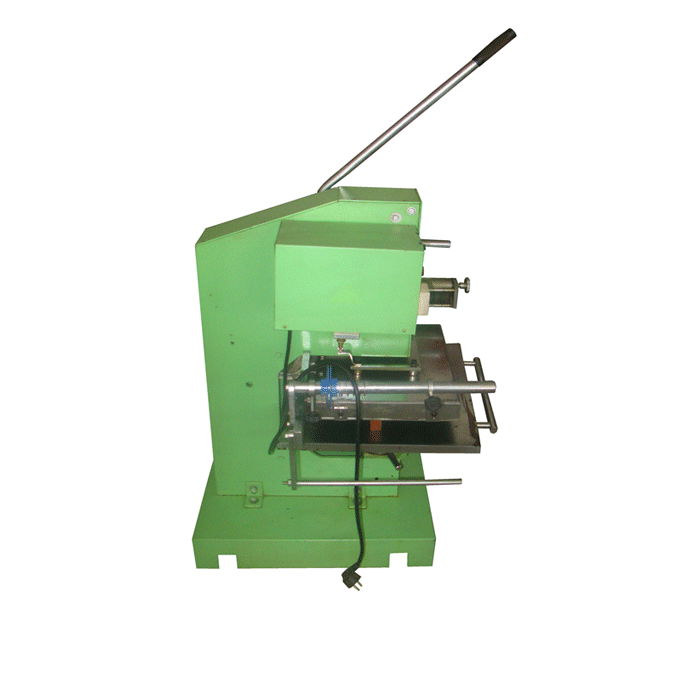

Manual hot stamping machine structure
The body is the basic frame of the entire manual hot stamping machine, which is used to support and fix other parts to ensure the stability of the machine. It is usually made of metal materials, such as cast iron or steel, to give it sufficient weight and strength to reduce shaking during the hot stamping operation.
The heating plate is a key component of the hot stamping machine, and a heating element, such as an electric heating tube, is installed inside. It can quickly heat up and remain within the set hot stamping temperature range to provide heat for hot stamping. The heating and constant temperature control of the heating plate are controlled by the thermostat, and the operator can set different temperatures according to the different hot stamping materials.
The pressure is adjusted by a handle, a screw or a pneumatic device. For example, when using a screw structure, the screw is moved up and down by rotating the handle, thereby changing the distance between the heating plate and the workbench, thereby adjusting the pressure during hot stamping.

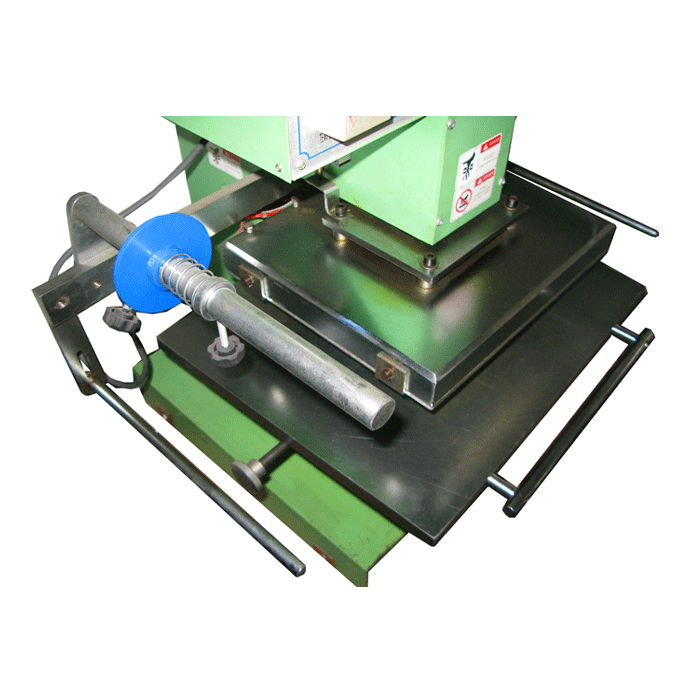

The workbench is where the hot stamping material is placed, which can withstand a certain pressure and temperature while avoiding scratching the hot stamping material. To prevent the product from moving during the hot stamping process, the workbench may be equipped with some simple positioning devices, such as clips or magnetic devices. Clips can clamp the edges of materials such as paper and leather, while magnetic devices are suitable for some metal materials that can be magnetically attracted. Some products require special fixtures to fix the product.

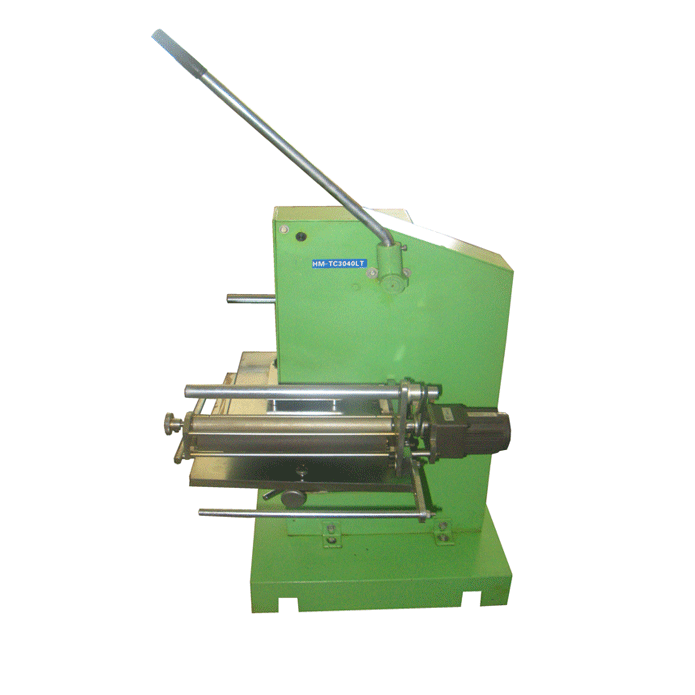

Includes unwinding structure and rewinding mechanism: used to place hot stamping foil rolls and collect used hot stamping foil. Hot stamping foil conveying device is generally controlled by micro motor.
|
Manual hot stamping Machine //Structure |
||
|
Working table |
Manual in-out , size: 420*500mm. |
|
|
Stamping Head drive |
Manual , Level keeping pressure |
|
|
Foil collecting method |
Motor-drive , Collecting time adjustable |
|
|
Press |
Vertical press |
|
|
Temperature control |
Heater tube, automatically controlling |
|
|
Foil collecting |
Automatically collecting |
|
|
Press adjustment way |
Up-down of working table |
|
|
Manual hot stamping machine /Usage and characters |
||
|
Guide |
|
|
|
Application fields |
|
|
|
Manual hot stamping Machine //Parameter |
||
|
Technical parameters |
HM-TC305 |
HM-TC306 |
|
|
|
|
Works supply |
|
|
|
Package list |
Outer Size: 760*660*1200mm; Net weight:162kg |
Plywood Case: Size: 840*840*1140mm; Gross weight: 194kg; CBM: 0.80 |
|
H.S.Code |
8443198000 |
|
|
Certificate |
CE |
|
|
Manual hot stamping machine //Advantage |
||
|
Function |
|
|
| Summary: | Manual hot stamping machine refers to the hot stamping machine that manually operates the hot stamping head up and down to perform the hot stamping action. Due to its low price, the market demand is also very strong. It can complete the processing of products with small orders, and can also make samples for customer products. The test can be seen in stores that sell hot stamping paper, hot stamping version or advertising processing. Except for the manual hot stamping action, the manual hot stamping machine is automatic, and its power consumption has not been significantly reduced, but it does not need compressed air, so it is more convenient to operate. |
|---|---|
