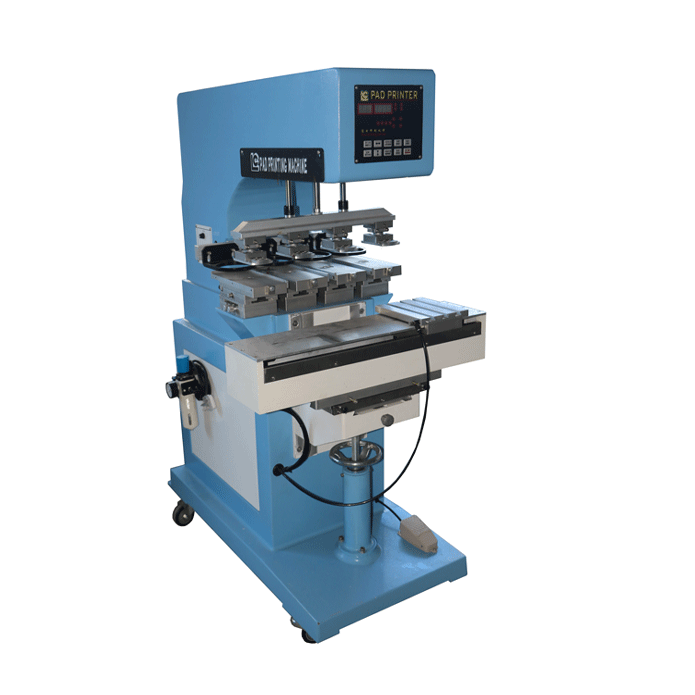

4 colors pad printer with shuttle//Structure

Working table

4-station shuttle-type working table

Shuttle stroke

125mm

Ink supply system

90mm diameter Closed cup type system

Plate type

0.3mm Thin steel sheets plate.

Pad dropping control

Simple-cylinder , Continue pressing

Ink drying

Heat air

4 colors pad printer//Usage and characters

Guide

• Print both one color to 4 colors with shuttle worktable， overprint is more precision.
• With sealed cup to store ink, saving ink and environment protection ;
• With coin aluminum structure ensure more stabilization and long life.
• Independent sealed cup driving device, Ink removing completely . Make min Pressure to remove ink;
• Can print almost small size objects. So sold very nice in the world.
• Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
• Completely printing solution including ink and thinner, fixtures, steel plates, rubber pads provided when you send us samples to send..

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

4 colors pad printer with shuttle//Parameter

Technical parameters

SP4-410C

SP4-412C

• Max. plate size: 100×250mm.
• Max. worktable area: 125×200mm.
• Sealed cup diameter: Φ90mm.
• Max. printing speed: 550pcs/h.
• Printable color:4
• Shuttle stroke:125mm.
• Max print area: 80×130mm.

• Max. plate size: 100×300mm.
• Max. worktable area: 125×200mm.
• Sealed cup diameter: Φ90mm
• Max. printing speed: 550pcs/h.
• Printable color: 4
• Shuttle stroke:125mm.
• Max print area: 80×170mm。

Works supply

• 110V-220VPower supply；
• 5-7Bar Compress air；

Package list

• Package dimension: 1.210×0.780×1.520m
• Gross weight: 278KG.
• CBM: 1.43453

H.S.Code

8443198000

Certicate

CE

4 colors pad printer with shuttle //Advantage

Function

• Microcomputer program controlling operating technique ;
• Streamline design ensure dexterous Appearance impressions;
• Coin aluminum structure frame coated Gross-Green color paint;
• Shuttle working table installed to get more precision overprint;
• Independency pressure adjustment of pad press-printing and picking up ink;
• Either testing or running mode to operate ;
• Closed cup to store and coating ink , save ink and protect environment .
• Automatism digital count function;
• 4 colors pad printing with drying through blowing hot air:
• Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
• Independent cup driven cylinder ensure ink remove clean.
