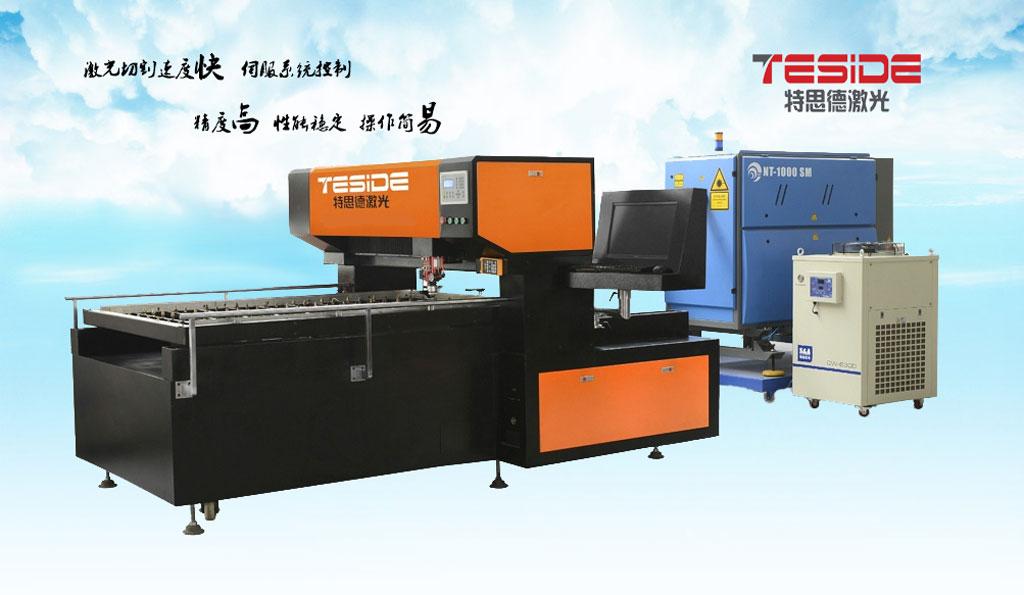

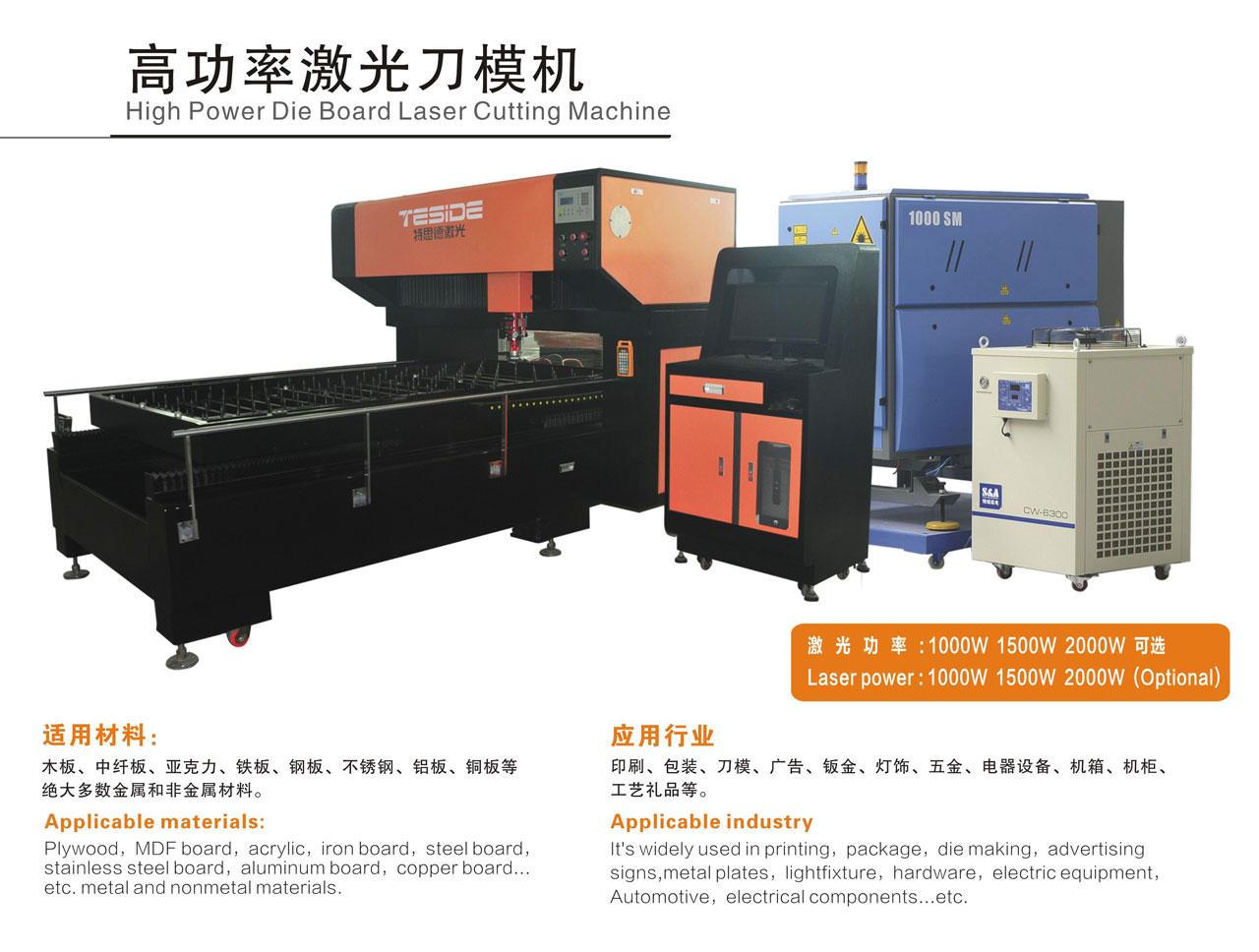

1500W high power die board laser cutting machine
----------------------------------------------------------------------------------------------------------------------------------
Machine Model No.:TSD-LC1500-1218，TSD-LC1500-1325
Laser power : 1500W

Applications:
It's widely used in printing, package, die making, advertising signs, metal plates, light-fixture…etc. industries.

Applicable materials:
Plywood, MDF board, acrylic, iron board, steel board, stainless steel board…etc. metal and non-metal materials.
======================================================================================
Machine Features:
1、Gantry structure, stable working, small floor space required for machine.
2、Laser cutting head coming with automatic touching system, adapt to the jagged materials and keep cutting kerf precision.
3、Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
4、Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
5、Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.
6、Software is easy to operate and simple, easy to understand.
7、Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.
8、Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
Technical Specifications:

Model No.
TSD-LC1500-1218
TSD-LC1500-1325

Overall dimensions (L x W x H)
3000*2300*1800mm
3600*2300*1800mm

G. Weight
2200KG
2500KG

X-axis travel-length
1200mm
1300mm

Y-axis travel-length
1800mm
2500mm

Cutting precision
±0.05mm

Re-Positioning Precision
≤0.02mm

Laser power
1500W

Average. cutting speed
90 meters/hour for 18mm plywood

Controlling system
PMAC Motion card PMAC

Transmission system
Ball screw & Linear guide

Driving system
3 Axial Servo

Optical system
Semi-optical

Moving structure
Gantry

Laser output power
High power axial flow CO2 laser source

Chiller system
Special Chiller system for imported laser tube

Power supply (Machine table)
Single Phrase 220V 50Hz

Power supply (Laser generator)
3 Phrase 380V/50Hz/30A

Laser generator gas matched
He  N2  CO2  (99.999%)

H.S Code
8456100090

---------------------------------------------------------------------------------------------------------------------------------------------------------------
Laser cutting sample：
