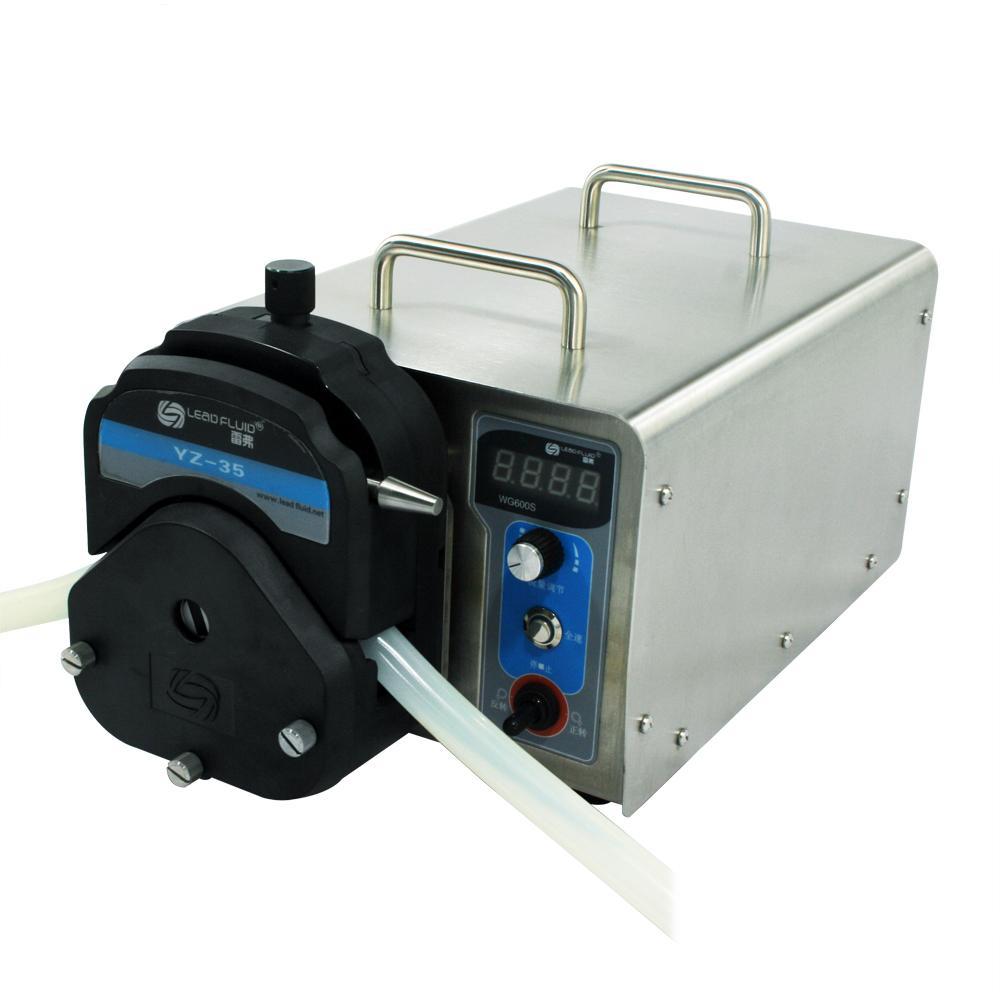

The pump is suitable for transferring large amount of fluid in industry. One channel flow range: 0.4-13 L/min, speed range: 30-600 rpm. It can cascade two pump heads. It adopts the brushless motor drive with large torque, free maintenance. Having basic functions：such as reversible direction, start/stop, full speed (fast cleaning) and speed-variable. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.

  Function and feature

•Stainless steel housing.

•keypad controls running speed, reversible direction, start/stop, full speed, easy operation.

•Applicable pump head: YZ35, 2xYZ35.

•One channel flow range: 0.4-13(L/min).

•Speed resolution: 1rpm.

•Four-figure digital LED indicator displays working speed.

•Brushless motor drive, free maintenance.

•Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid,alkali,sodium and the organic solvents.

•The circuit board with conformal coating makes it dust-proof and moisture-proof.

•External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator, can choose 5V,12V,24V. External analog adjusts the rotate speed, can choose 0-5V/10V, 4-20mA.

•RS485 interface, MODBUS protocol is available, easy to connect other equipments.

Technical parameters

  •  One channel flow range :0.4-13L/min
  •  Flow accuracy:＜3%
  •  Speed range:30-600rpm.
  •  Speed resolution: 1 rpm
  •  Power supply :AC 220V±10%,50Hz/60Hz（standard）,
  •  Power consumption：＜300W
  •  External control：Input electrical level 5V, 12V (standard),24V(optional).

  •  External communication interface：RS485 communication interface，

support the MODBUS protocol.

  •  Ambient temperature：0 ～ 40℃
  •  Relative humidity:＜80%
  •  IP grade:IP31
  •  Dimensions（LxWxH）340mmx235mmx175mm
  •  Weight：13KG
