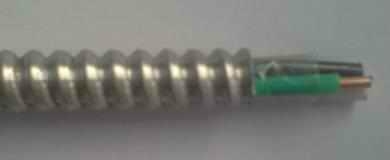

UL认证集装箱房屋用联锁铠装电缆MC/BX cable

型号：	MC
品牌：	Qingkai
原产地：	中国
类别：	电子、电力 / 光缆和电缆电线 / 电力电缆
标签︰	THHN , THWN , MC
单价：	-
最少订量：	-

发送查询

产品描述

Type:MC armored cable (MC/BX cable)

Standard：UL1569,UL83,UL1581

Cores: 2-5

Size: 14AWG-1000kcmil

Voltage: 600V

Construction:

Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly. Refer to color chart for conductor color sequence.

Applications:

Type MC Cable is suitable for use as follows:

Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.

1.Power, lighting, control, and signal circuits.

2.Fished or embedded in plaster.

3.Concealed or exposed installations.

4.Environmental air-handling spaces per NEC 300.22 (C).

5.Places of Assembly per NEC 518.4 and theaters per NEC 520.5.

6.Installation in cable tray and approved raceways.
